Epson EPL-N3000 - Paper Out;Tray 1,2; Paper Out;Tray

EPSON EPL-N3000/AcuLaser M4000N Revision C
Troubleshooting Troubleshooting When There is Error Display 84
Confidential
3.2.15 Paper Out/Tray 1,2
Table 3-18. Troubleshooting for “Paper Out/Tray 1, 2”
Step Action and Question Yes No
Parts below can be the source of this error (Chapter 4 Disassembly and Assembly)
• SENSOR NO PAPER (p.222), (p.232)
• ACTUATOR NO PAPER (p.223), (p.238)
•HVPS/MCU (p.301)
•LVPS (p.287)
• PLATE ASSY BTM (p.330)
• RACK BTM LOCK 550 (p.203)
• HOUSING BASE 550 (p.208)
1
♦Is the Tray 3 or Tray 4 pointed out by error display? Go to 3.2.21
Paper Out/
Tray 3, 4
(p.87)
Go to Step 2
2
Presence of paper
1. Check Tray 1 or Tray 2 for paper.
♦Is there paper in Tray 1 or Tray 2?
Go to Step 3 Supply paper.
3
♦Is each PLATE ASSY BTM raised properly?
Go to Step 4
Remove the
Paper Cassette
and install
PLATE ASSY
BTM
properly.
4

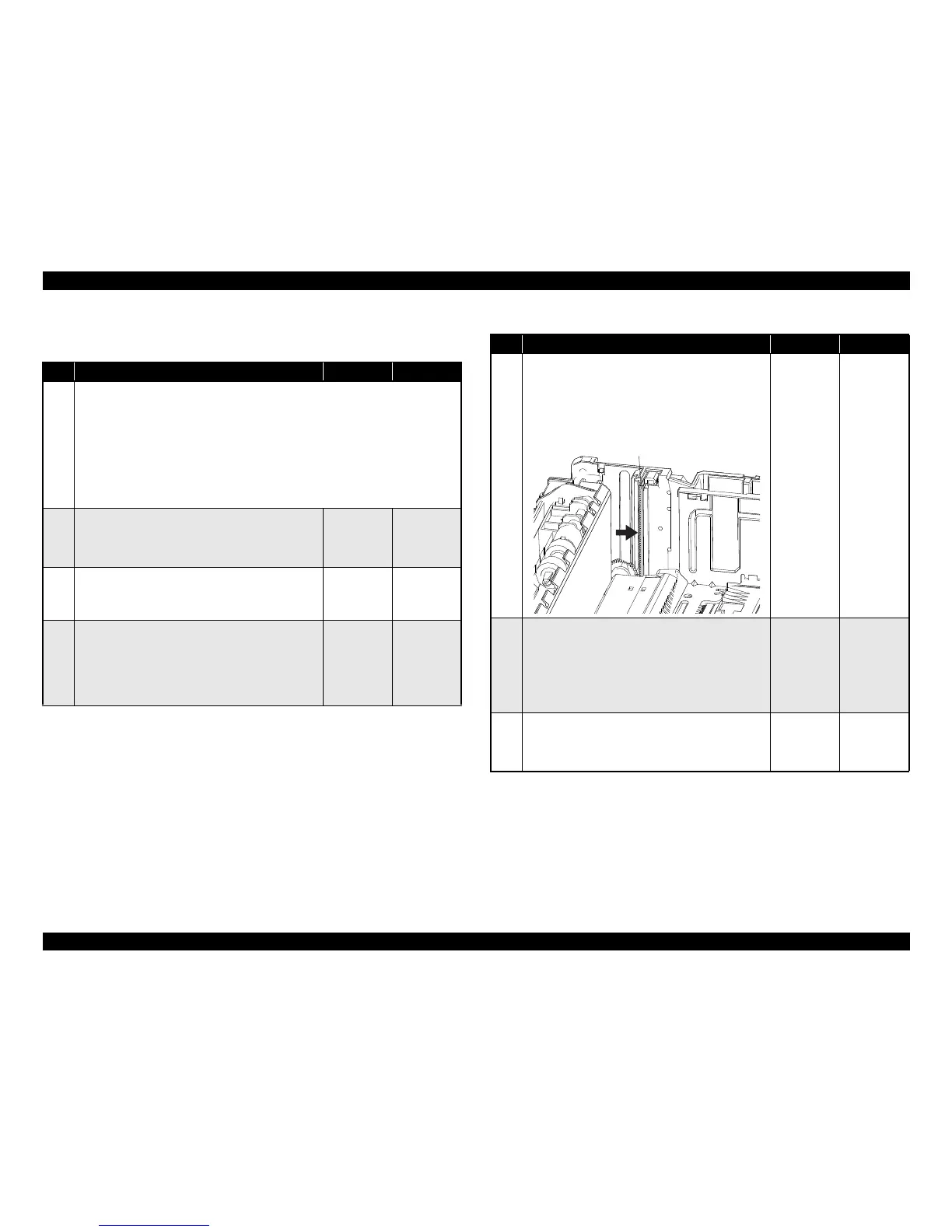

1. Clamp the ceenter part of RACK BTM LOCK 550
ageinst HOUSING BASE 550 while holding down
PLATE ASSY BTM.
♦Is there any gap between RACK LOCK 550 and
HOUSING BASE 550?
Go to Step 5
Reinstall the
RACK
BMTM
LOCK 550
(
p. 203)
5
ACTUATOR NO PAPER
1. Remove the Paper Cassette.
2. Insert your hand through the cassette inserting
opening, and move the ACTUATOR NO PAPER.
♦Does the ACTUATOR NO PAPER move
smoothly?
Go to Step 6
Replace the
ACTUATOR
NO PAPER
6
HVPS/MCU
1. Replace the HVPS/MCU. (p.301)
♦Dose the problem still occur?
Go to 3.4.23
SENSOR NO
PAPER
(p.131)
Problem
solved
Table 3-18. Troubleshooting for “Paper Out/Tray 1, 2”
Step Action and Question Yes No
RACK BTM LOCK 550
