EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option OCT 360
Confidential
4.13 Option OCT
4.13.1 Option OCT
Removal
1. Release the two hooks securing the COVER S OCT to the COVER TOP, and
remove the COVER S OCT.
2. Loosen the two SCREWs THUMB securing the Option OCT to the printer body.
3. Lift the Option OCT, and disconnect the connector (P/J3070) of the HARNESS
ASSY OCT2 from the printer body.
4. Disengage the two hooks at the bottom of the COVER OCT from the printer body,
and remove the Option OCT from the printer body.

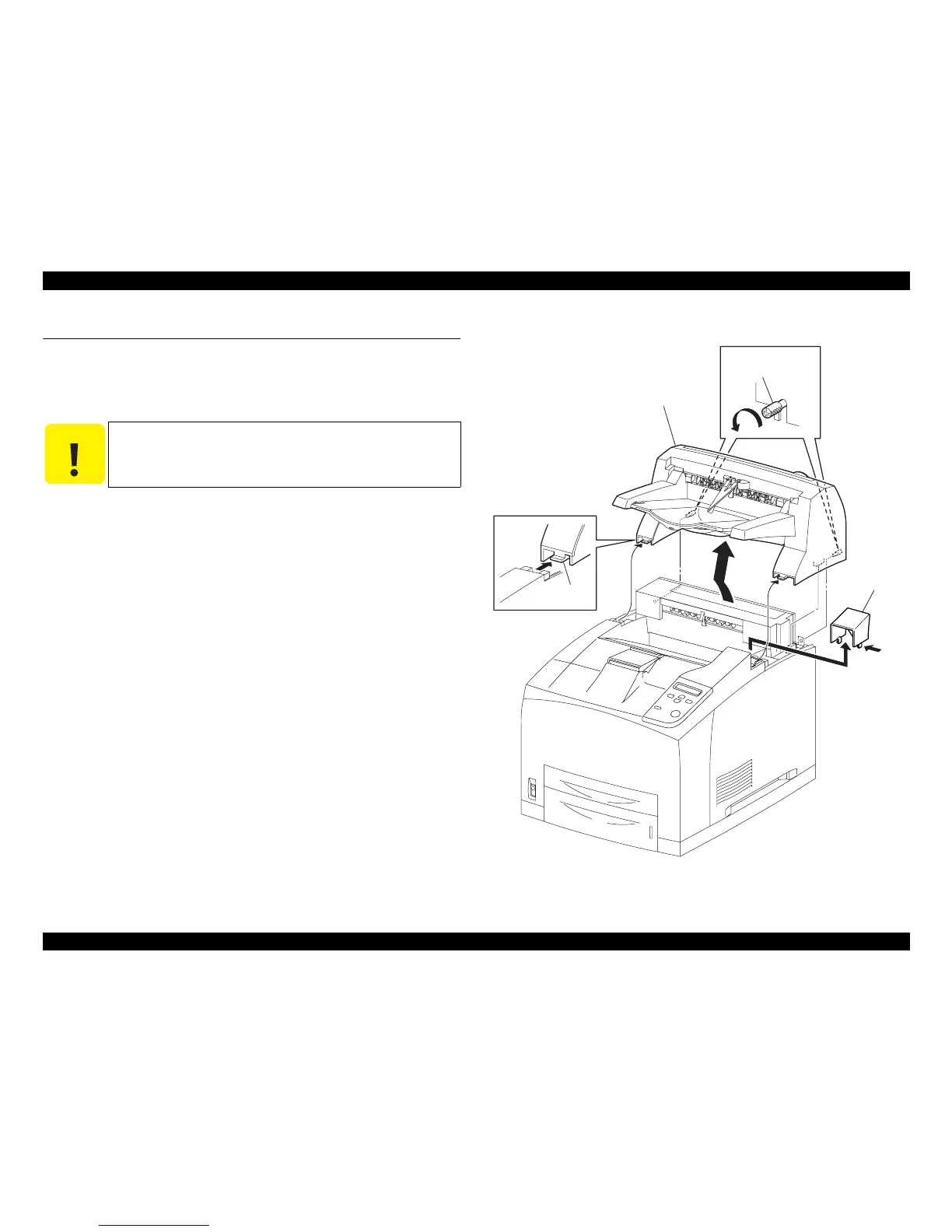

Figure 4- 157. Option OCT Removal
C A U T I O N
During removal, do the work carefully not to drop the Option OCT.
SCREW THUMB
HOOK
Option OCT
COVER S OCT
JG3801EA
REAR VIEW
3)
1-1)
4)
2)
