4.6.9 ACTUATOR NO PAPER
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the FUSER ASSY. (p.253)
3. Lay the printer body on its left side.
4. Open the COVER OPEN.
5. While lifting the boss of the HOLDER LEFT on the rear side of the 550 FEEDER
ASSY, shift the HOLDER LEFT in the direction of the arrow, and release the
three hooks.
6. Remove the HOLDER LEFT from the SUPPORT NUDGER. At the same time,
the ACTUATOR NO PAPER comes off.
Installation
1. Install the HOLDER LEFT and ACTUATOR NO PAPER to the SUPPORT
NUDGER.
2. Move the HOLDER LEFT in the direction opposite to the arrow, and secure it to
the 550 FEEDER ASSY with the three hooks.
3. Return the printer body to the normal position.
4. Install the FUSER ASSY. (p.253)
5. Install the COVER REAR 500. (p.270)

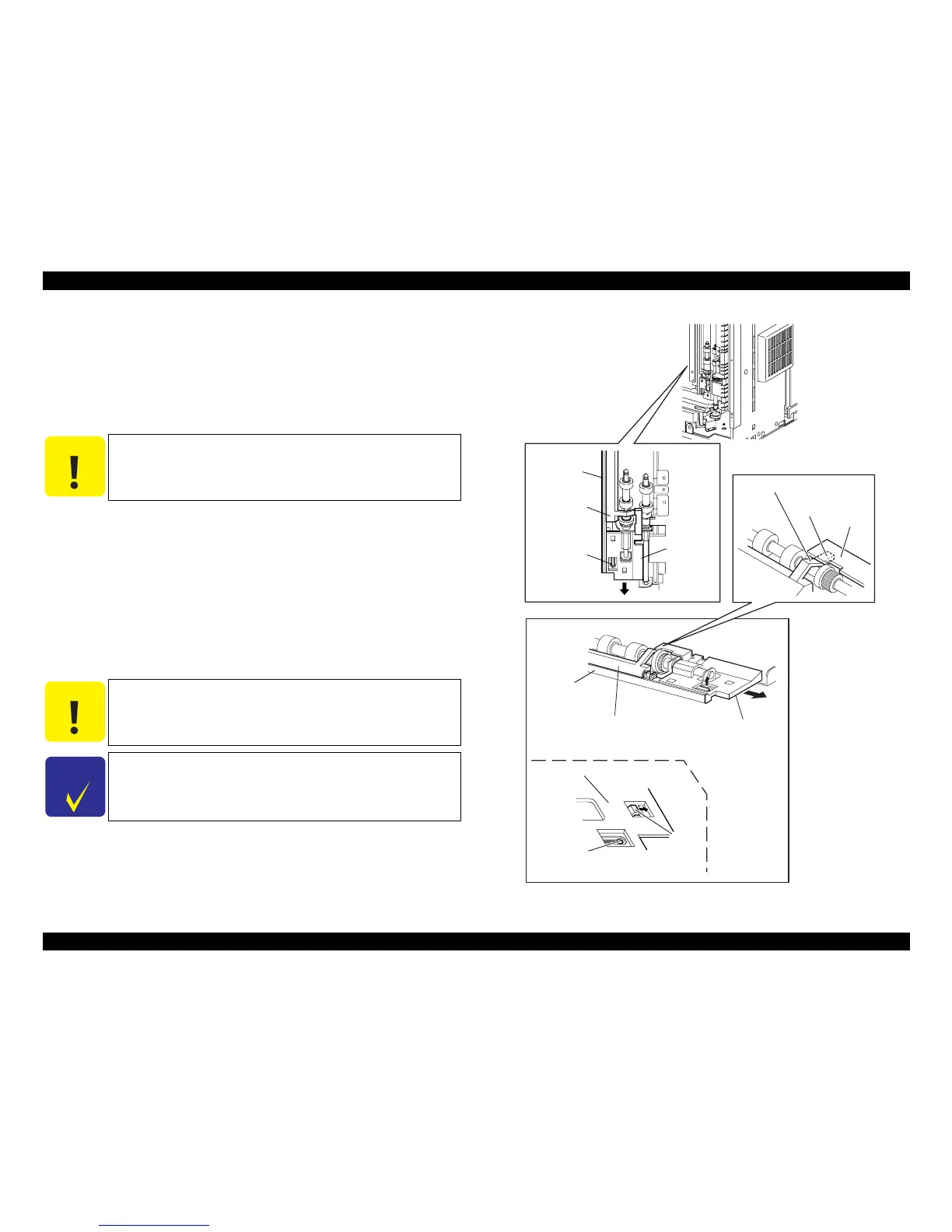

Figure 4- 57. ACTUATOR NO PAPER Removal
C A U T I O N
Take care not to damage the covers. In addition, take care not to
apply any impact from above.
C A U T I O N
 Securely fit the shafts on both ends of the ACTUATOR NO
PAPER into the HOLDER LEFT and SUPPORT NUDGER.
 Hitch the hook of the ACTUATOR NO PAPER on the
HOLDER LEFT.
C H E C K
P O I N T
After installation, operate the ACTUATOR NO PAPER with your
finger and make sure that it moves properly.
HOLDER
LEFT
LIFT UP
(BOSS)
SUPPORT
NUDGER
ACTUATOR
NO PAPER
JG3198AA
ACTUATOR NO PAPER
SUPPORT NUDGER
UNDER VIEW
HOLDER LEFT
HOOK
LIFT UP
(BOSS)
HOLDER
LEFT
ACTUATOR NO PAPER
HOOK
HOLDER
LEFT
