EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly 150 Paper Cassette 190
Confidential
4.3.7 HANDLE EXTENTION 150
Removal
1. Remove the COVER CST from the cassette body.
2. Remove the two screws located the backside of the HANDLE EXTENSION 150
3. Release the five hooks at the top and two hooks at the bottom, and remove the
HANDLE EXTENSION 150 from the HOUSING EXTENSION 150.
Installation
1. Fit the hooks of the HANDLE EXTENSION 150 (5 points at the top, 2 points at
the bottom) to the HOUSING EXTENSION 150.
2. Secure the HANDLE EXTENSION 150 with the two screws.
3. Install the COVER CST to the cassette body.

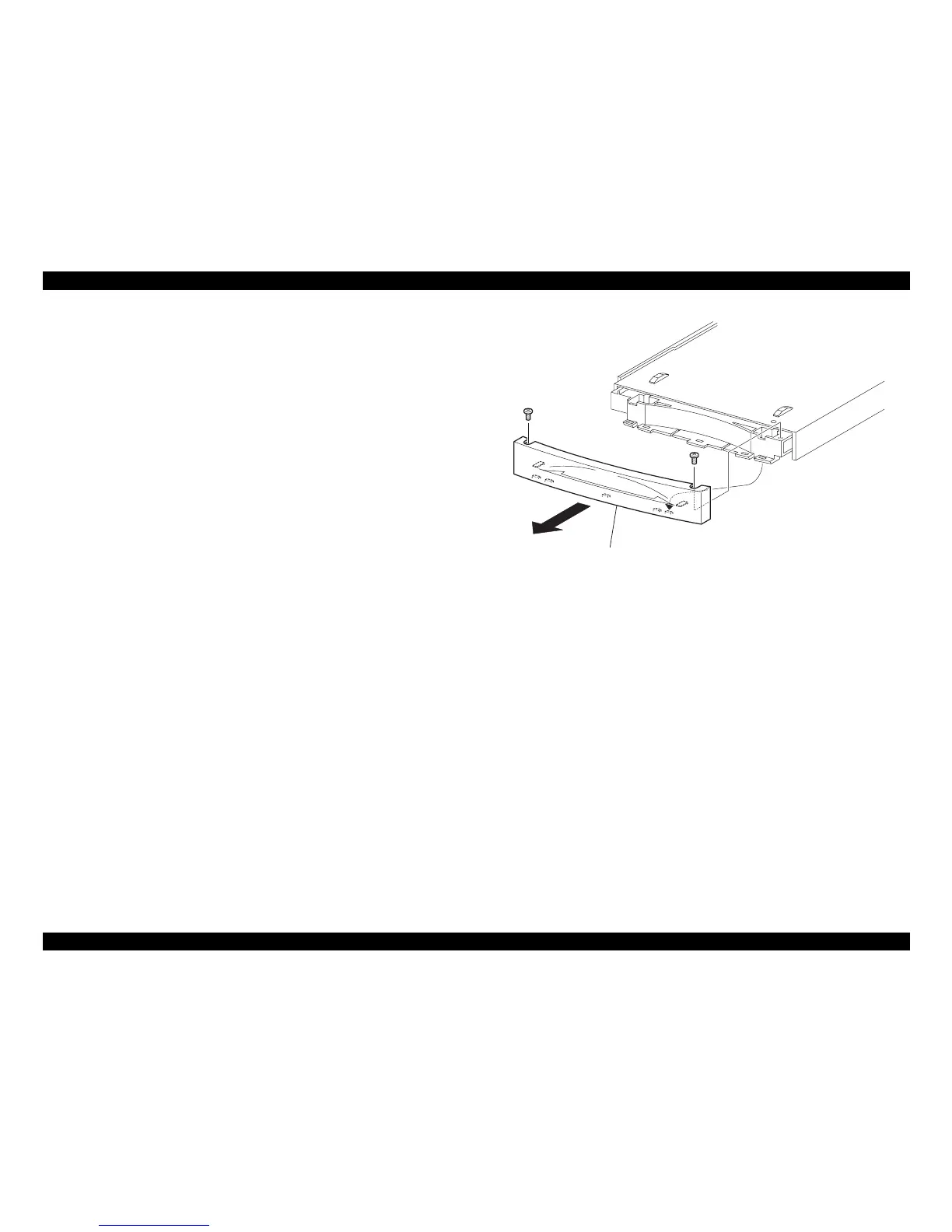

Figure 4- 22. HANDLE EXTENTION 150 Removal
HANDLE EXTENSION 150
JG3301AA
