EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option Duplex 346
Confidential
4.12.4 COVER TOP
Removal
1. Remove the COVER RIGHT. (p.354)
2. Remove the one screw (gold, tapping, 8mm) securing the COVER TOP to the
COVER HSG DUP.
3. Move the COVER TOP in the direction of the arrow to disengage the four hooks,
and remove the COVER TOP from the COVER HSG DUP.
Installation
1. Move the COVER TOP in the direction opposite to the arrow, install it to the
COVER TOP, and secure it with the four hooks.
2. Secure the COVER TOP to the COVER HSG DUP with the one screw (gold,
tapping, 8mm).
3. Install the COVER RIGHT. (p.354)

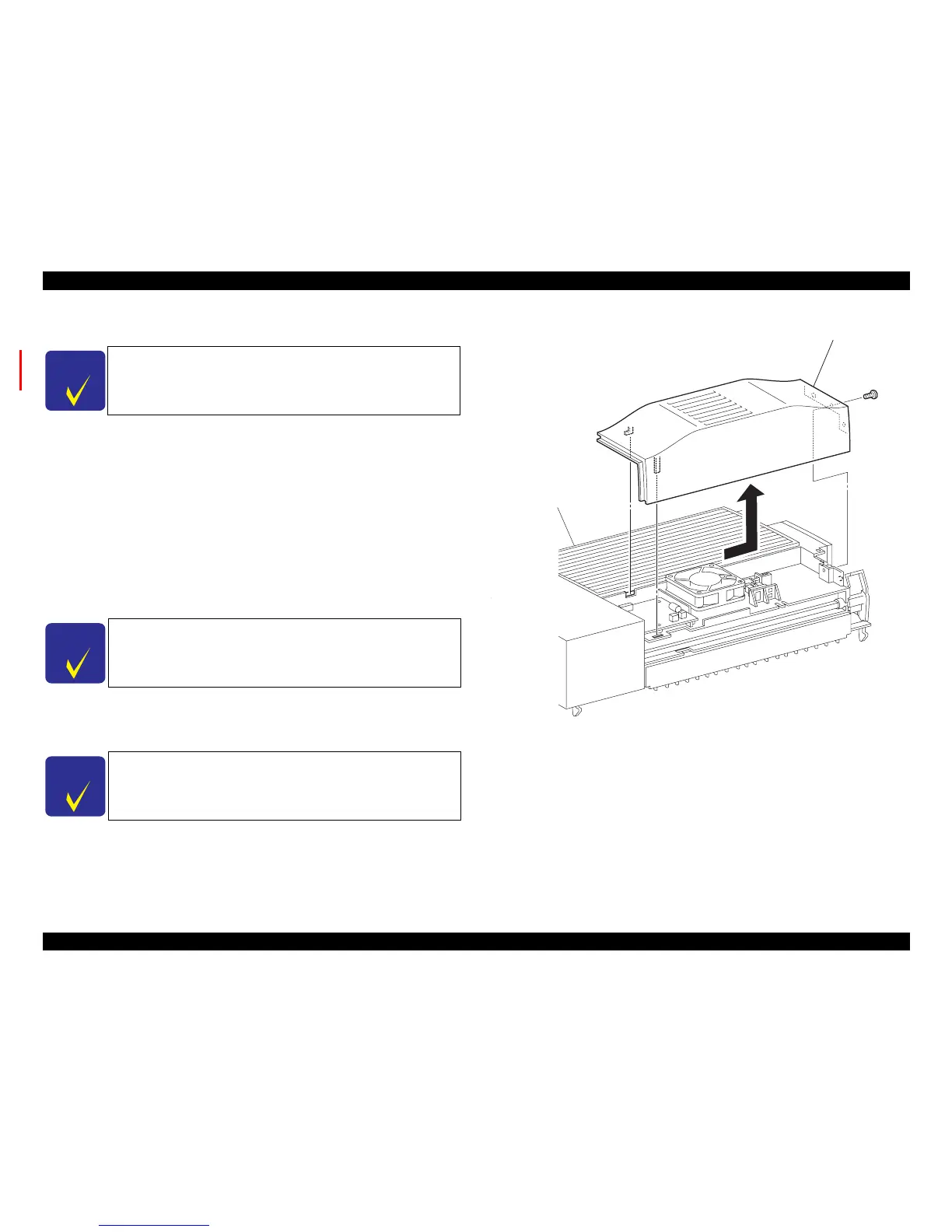

Figure 4- 147. COVER TOP Removal
C H E C K
P O I N T
Disassembly procedures for these parts are different between EPL-
N3000 and AcuLaser M4000N. For AcuLaser M4000N, see
4.14.9
COVER TOP (AcuLaser M4000N) (p.393).
C H E C K
P O I N T
When installing the COVER TOP, match its positioning holes with
the bosses of the COVER HSG DUP.
C H E C K
P O I N T
When installing the COVER RIGHT, match its positioning holes
with the bosses of the COVER HSG DUP.
COVER TOP
COVER HSG DUP
JG3604AB
2)
3)
