EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Electrical 287
Confidential
4.10.3 LVPS
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the COVER REAR. (p.167)
3. Remove the COVER LEFT. (p.169)
4. Remove the COVER RIGHT. (p.168)
5. Remove the COVER EXIT 500. (p.261)
6. Remove the 500 EXIT ASSY. (p.262)
7. Remove the COVER TOP, CONTROL PANEL. (p.170)
8. Remove the COVER FRONT. (p.172)
9. Remove the SHIELD PLATE LVPS.
10. Disconnect the harness connector of the LVPS from the connector (P/J101) of the
PWBA EXIT MOTOR.
11. Disconnect the harness connectors from the connectors (P/J40, P/J41, P/J42, P/
J43, P/J44, P/J45, P/J46, P/J47, P/J48) of the LVPS.
12. Remove the five screws (silver, 6mm) securing the LVPS to the frame.
13. Remove the LVPS.

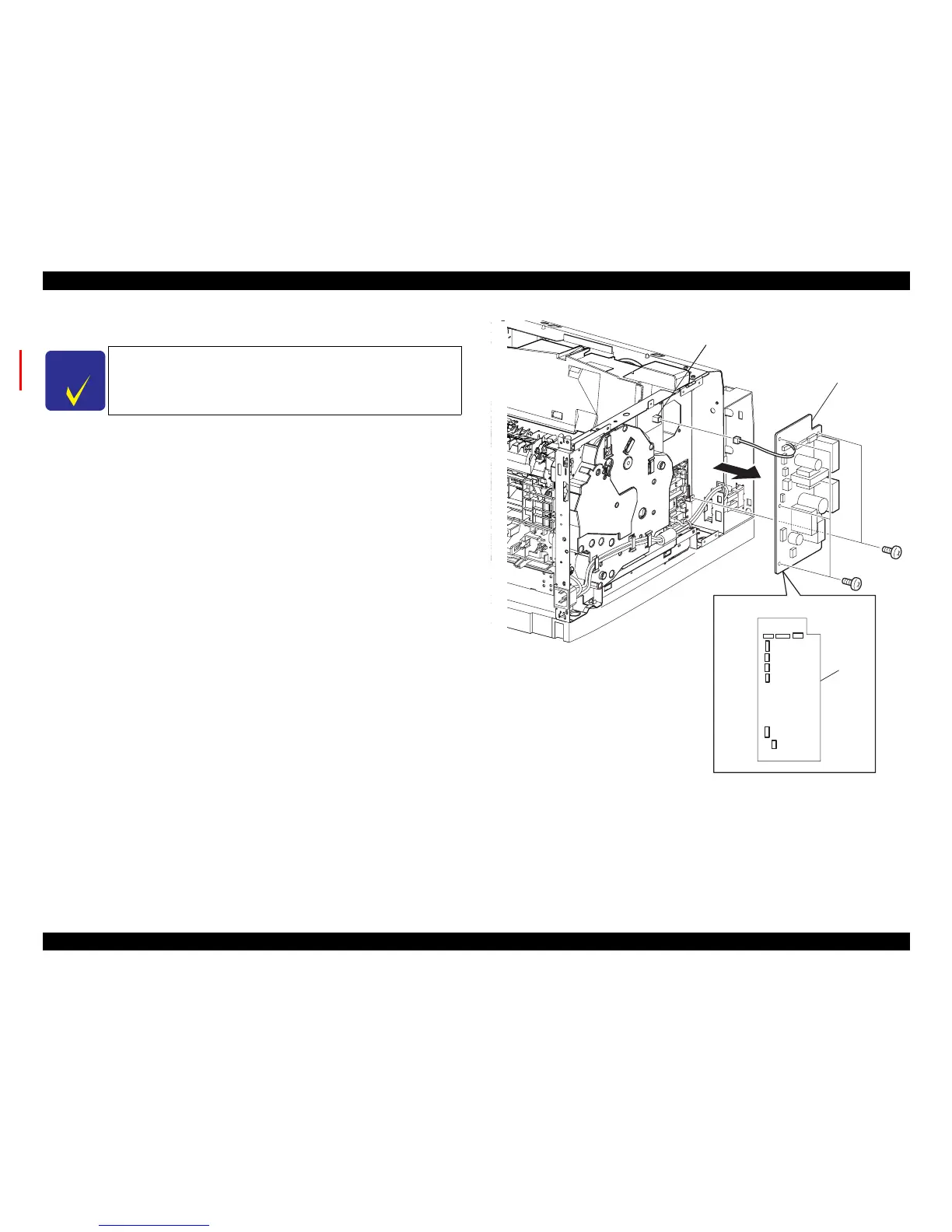

Figure 4- 94. LVPS Removal
C H E C K
P O I N T
Disassembly procedures for this part are different between EPL-
N3000 and AcuLaser M4000N. For AcuLaser M4000N, see
4.14.7
LVPS (AcuLaser M4000N) (p.390).
JG3177AA
PWBA EXIT MOTOR
LVPS
LVPS
46
47
45
P/J 42 4140
43
44
48
P/J
13)
12)
11)
