EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option 550 Paper Feeder 336
Confidential
4.11.23 HANDLE EXTENSION 550
Removal
1. Remove the COVER CST from the 550 PAPER CASSETTE.
2. Remove the two screws in the rear side of the HANDLE EXTENSION 550.
3. Release the five hooks at the top and the two hooks at the bottom, and remove the
HANDLE EXTENSION 550 from the HOUSING EXTENSION 550.
Installation
1. Install the LOW INDICATOR and LOW IND FRONT. (p.340)
2. Hitch the five hooks at the top and the two hooks at the bottom of the HANDLE
EXTENSION 550 on the HOUSING EXTENSION 550.
3. Secure the HOUSING EXTENSION 550 with the two screws.
4. Install the COVER CST to the 550 PAPER CASSETTE.

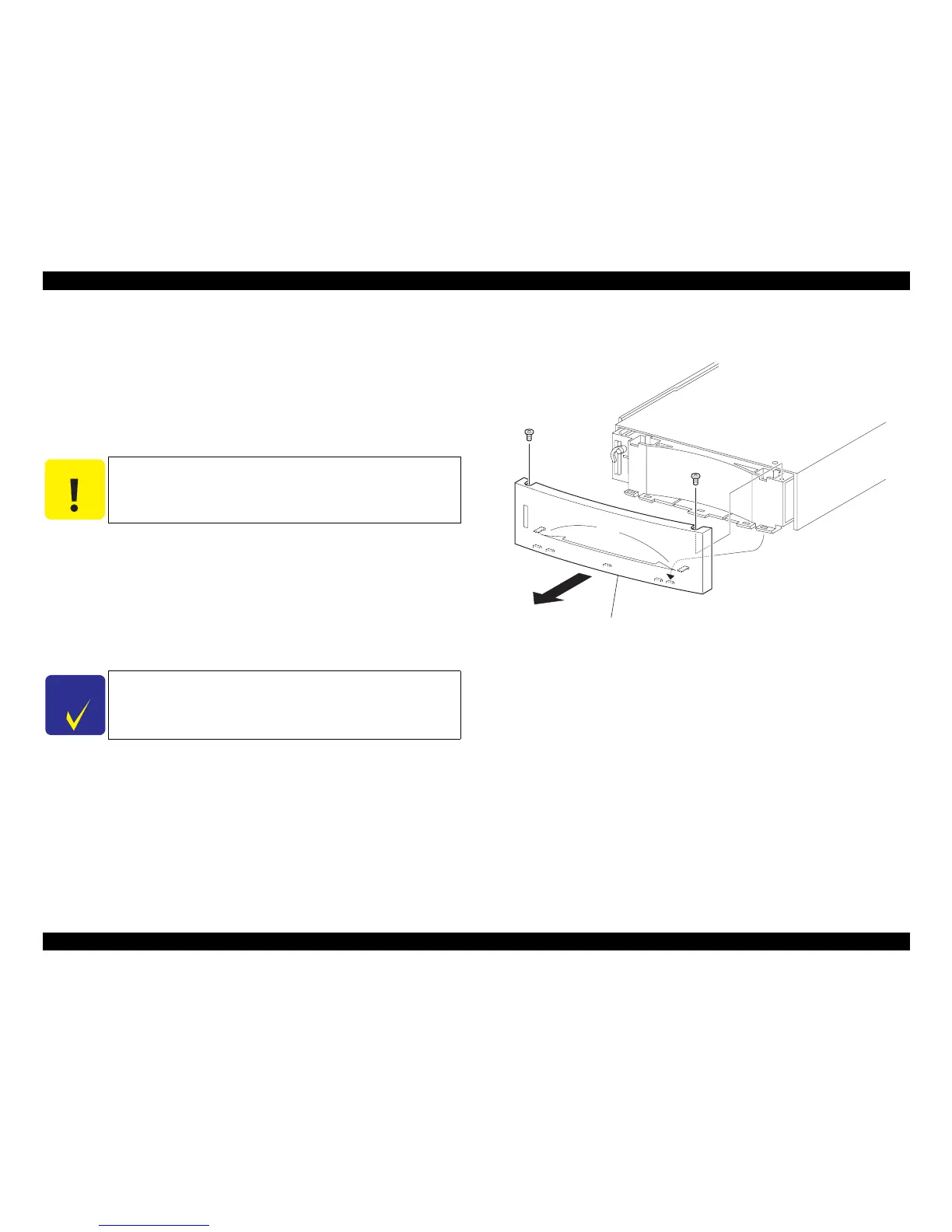

Figure 4- 138. HANDLE EXTENSION 550 Removal
C A U T I O N
When removing the HANDLE EXTENSION 550, take care not to
mislay the LOW INDICATOR and LOW IND FRONT as they will
come off.
C H E C K
P O I N T
After completion of assembling, move the PLATE ASSY BTM up/
down, and make sure that the LOW IND FRONT moves up/down
synchronously.
HANDLE EXTENSION 550
JG3026AB
2)
