3.1.6 Mechanical Controller Test Printing Function
With this printer, you can carry out printing operation check of the engine alone by
control of the Mechanical Controller as follows:
3.1.6.1 How to Execute Test Printing
Short-circuit the jumper wire (JP93 JP TEST) on the HVPS/MCU Board to the frame,
and the test pattern as shown in
Figure 3-2 will be printed. Quit short-circuitting to
terminate printing.

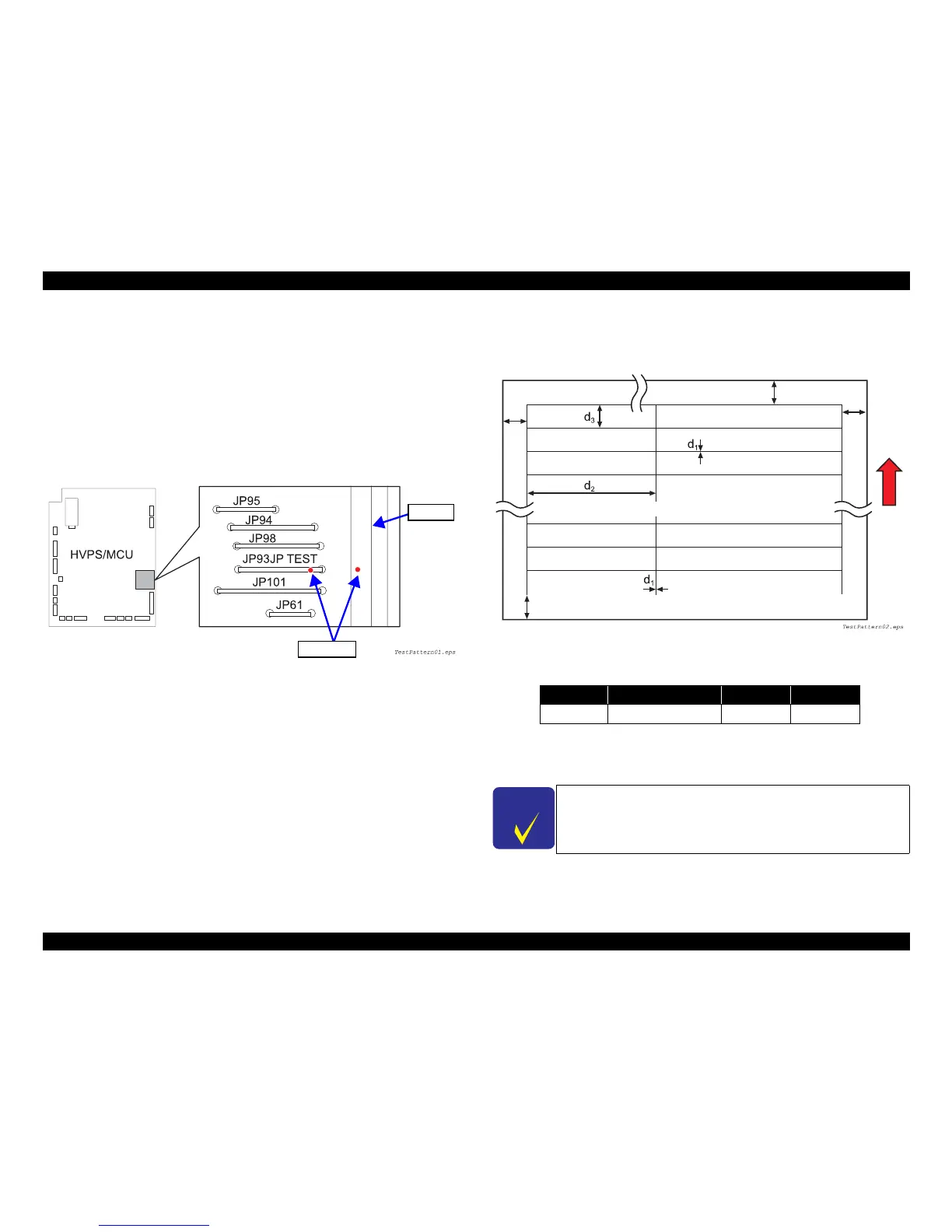

Figure 3-1. How to Execute Test Printing
3.1.6.2 Test Print Pattern
Figure 3-2 below shows the pattern output by print test of the engine alone.
Figure 3-2. Test Print Pattern
Note 1: The d2 value in table above represents the case of A4 LEF printing.
Connect
Frame
Resolution d1 (dots) d2 (dots) d3 (dots)
600 dpi 6 3413 127
C H E C K
P O I N T
There is no problem even if the lines in the paper feed direction is
printed jaggy. Jaggy line printing occurs because jitter control is
not performed.
About 4 mm
About 4 mm
About 4 mm
About 4 mm
Paper Feed Direction
