EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option 550 Paper Feeder 304
Confidential
4.11.2 COVER RIGHT PLATE
Removal
1. Remove the one screw (gold, tapping, 8mm) securing the COVER RIGHT
PLATE to the frame.
2. Slightly lift the COVER RIGHT PLATE above the boss of the FRAME CVR
R500 in the direction of the arrow to disengage it from the boss.
3. Move the COVER RIGHT PLATE in the direction of the arrow to disengage the
four hooks from the FRAME CVR R500, and remove it from the Feeder body.
Installation
1. Move the COVER RIGHT PLATE in the direction opposite to the arrow to engage
the four hooks with the FRAME CVR R500, and install it to the Feeder body.
2. Fit the COVER RIGHT PLATE to the boss of the FRAME CVR R500.
3. Install the COVER RIGHT PLATE to the frame with the one screw (gold, tapping,
8mm).

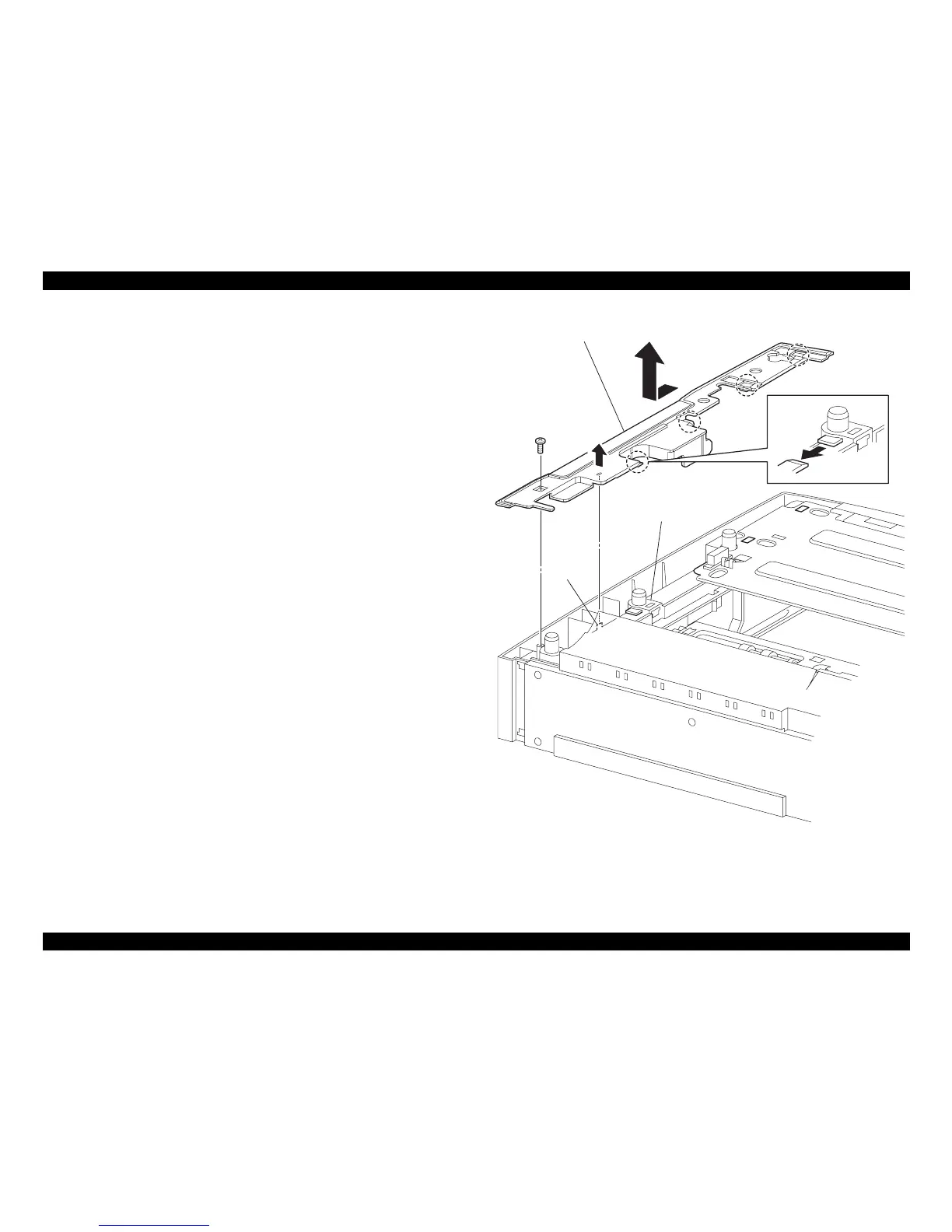

Figure 4- 109. COVER RIGHT PLATE Removal
FRAME CVR R550
COVER RIGHT PLATE
BOSS
JG3502AA
3)
2)
1)
