EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option 550 Paper Feeder 307
Confidential
4.11.5 DRIVE ASSY OPT FDR
Removal
1. Remove the 550 FEEDER OPTION. (p.311)
2. Remove the COVER LEFT PLATE. (p.305)
3. Disconnect the connector (P/J820) of the MOTOR FEEDER, which is installed on
the DRIVE ASSY OTP FDR, from the HARNESS ASSY FDR MOT.
4. Remove the three screws (gold, tapping, 8mm x2, silver, 6mm, x1) securing the
DRIVE ASSY OTP FDR to the FRAME CVR L550.
5. Remove the DRIVE ASSY OTP FDR.
Installation
1. Install the DRIVE ASSY OTP FDR to the FRAME CVR L550 with the three
screws (gold, tapping, 8mm x2, silver, 6mm, x1).
2. Connect the connector (P/J820) of the MOTOR FEEDER, which is installed on
the DRIVE ASSY OTP FDR, to the HARNESS ASSY FDR MOT.
3. Install the COVER LEFT PLATE. (p.305)
4. Install the 550 FEEDER OPTION. (p.311)

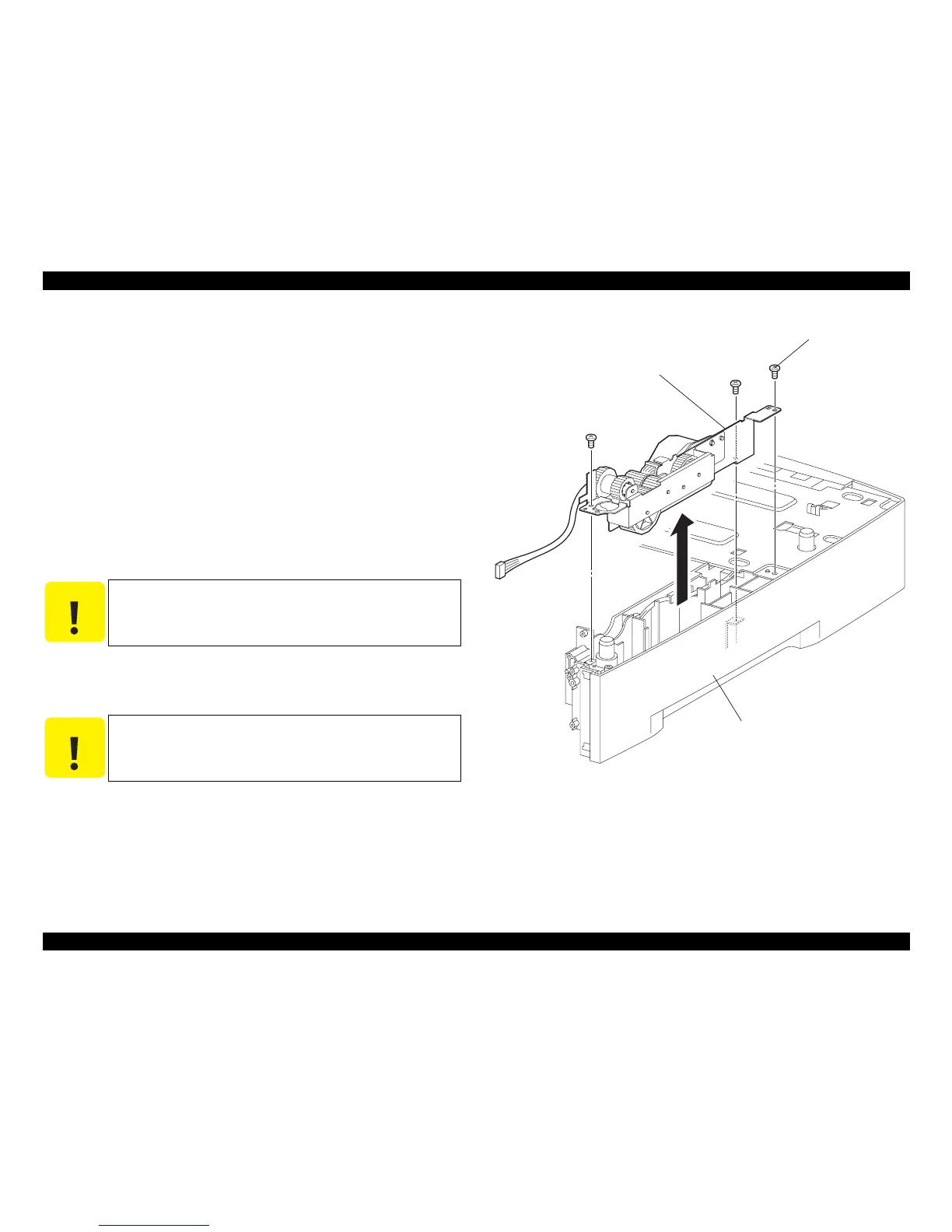

Figure 4- 112. DRIVE ASSY OPT FDR Removal
C A U T I O N
 As the Screw (A) shown in the figure, tighten the screw of
silver, 6mm. When securing the screws, be careful not to pinch
the harness.
 When securing the screws, be careful not to pinch the harness.
C A U T I O N
When installing the EARTH PLATE, insert its front end to under
the COVER LEFT PLATE.
DRIVE ASSY OPT FDR
JG3506AA
FRAME CVR L550
Screw(A)
4)
3)
5)
