4.12.8 ROLL DUP
Removal
1. Remove the COVER LEFT. (p.353)
2. Remove the COVER RIGHT. (p.354)
3. Remove the HSG UPPER ASSY. (p.343)
4. Remove the HSG LOWER DUP. (p.344)
5. Remove the two screws (gold, tapping, 8mm) and ONE SCREW TAPPING
securing the COVER DAMPER to the COVER HSG DUP.
6. Remove the COVER DAMPER and SPRING DAMPER from the COVER HSG
DUP.
7. Release from the inside the hooks of the three BEARINGs DUP located on the
side opposite to the GEARs ROLL, and remove the BEARINGs DUP from the
COVER HSG DUP.
8. Release the hooks of the three GEARs ROLL, and remove the GEARs ROLL
from the ROLLs DUP.
9. Move and remove the three ROLLs DUP in the direction of the arrow.

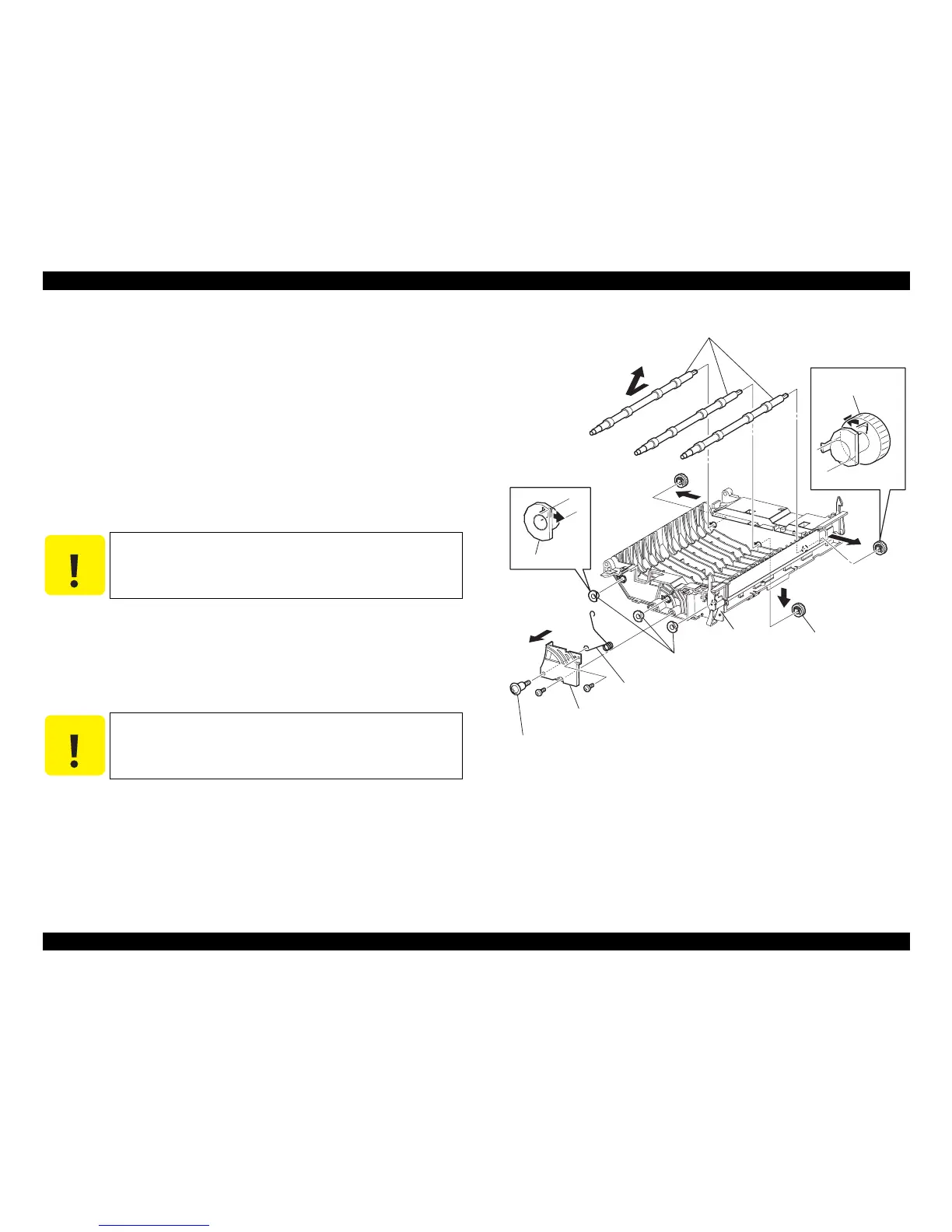

Figure 4- 151. ROLL DUP Removal
C A U T I O N
In the following steps, take care not to mislay the gears since the
working space is small.
C A U T I O N
When removing the ROLLs DUP, take care not to hold their
rubber parts.
JG3608AB
SCREW TAPPING
COVER DAMPER
SPRING DAMPER
BEARING DUP
COVER HSG DUP
GEAR ROLL
ROLL DUP
GEAR ROLL
BEARING DUP
9)
7)
6)
8)
8)
8)
8)
8)
