EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Overview 164
Confidential
4.1.4 Difference between EPL-N3000 and AcuLaser M4000N in Disassembly/Assembly
This chapter describes based on the EPL-N3000. When disassembly/assembly the AcuLaser M4000N, refer to the table below to make sure the difference between the EPL-N3000
and AcuLaser M4000N.
Note "*": Upper row: EPL-N3000, Lower row: AcuLaser M4000N

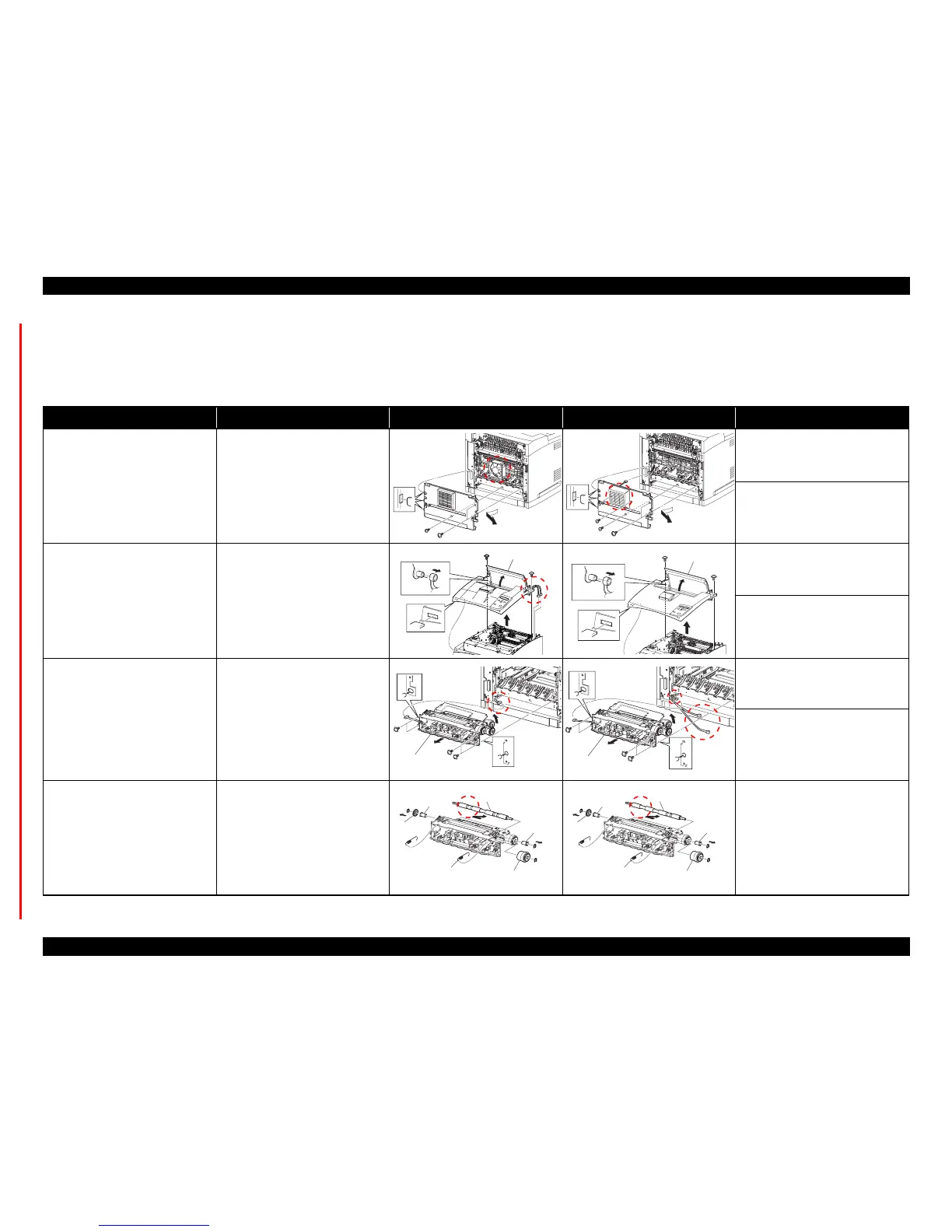

Table 4-1. List of Difference in Disassembly/Assembly
Item Explanation EPL-N3000 AcuLaser M4000N Reference*
COVER REAR
 EPL-N3000
FAN MAIN is secured to the main
unit.
 AcuLaser M4000N
FAN MAIN is secured to COVER
REAR.
4.2.1 COVER REAR (p.167)
4.14.1 COVER REAR (AcuLaser
M4000N) (p.379)
COVER TOP, CONTROL PANEL
 EPL-N3000
SWITCH I/L ASSY is equipped.
 AcuLaser M4000N
SWITCH I/L ASSY is not equipped.
4.2.4 COVER TOP, CONTROL
PANEL (p.170)
4.14.2 COVER TOP, CONTROL
PANEL (AcuLaser M4000N)
(p.380)
150 FEEDER ASSY Removing procedures are different
due to the change of HARNESS
ASSY TRAY1.
4.5.1 150 FEEDER ASSY
(p.211)
4.14.3 150 FEEDER ASSY
(AcuLaser M4000N) (p.382)
ROLL REGI RUBBER The shape of ROLL REGI RUBBER
is changed.
 EPL-N3000
Rubber roll: two pieces
 AcuLaser M4000N
Rubber roll: one piece
The disassembly/reassembly
procedure is the same for EPL-
N3000 and AcuLaser M4000N.
JG3003EA
COVER OPEN
COVER OPEN
(A)
150 FEEDER ASSY
(A)
150 FEEDER ASSY
BEARING REGI
RIGHT
BEARING REGI
LEFT
CLUTCH REGI
ROLL REGI RUBBER
GEAR REGI
SPRING REGI
BEARING REGI
RIGHT
BEARING REGI
LEFT
CLUTCH REGI
ROLL REGI RUBBER
GEAR REGI
SPRING REGI
