EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Overview 165
Confidential
Note "*": Upper row: EPL-N3000, Lower row: AcuLaser M4000N

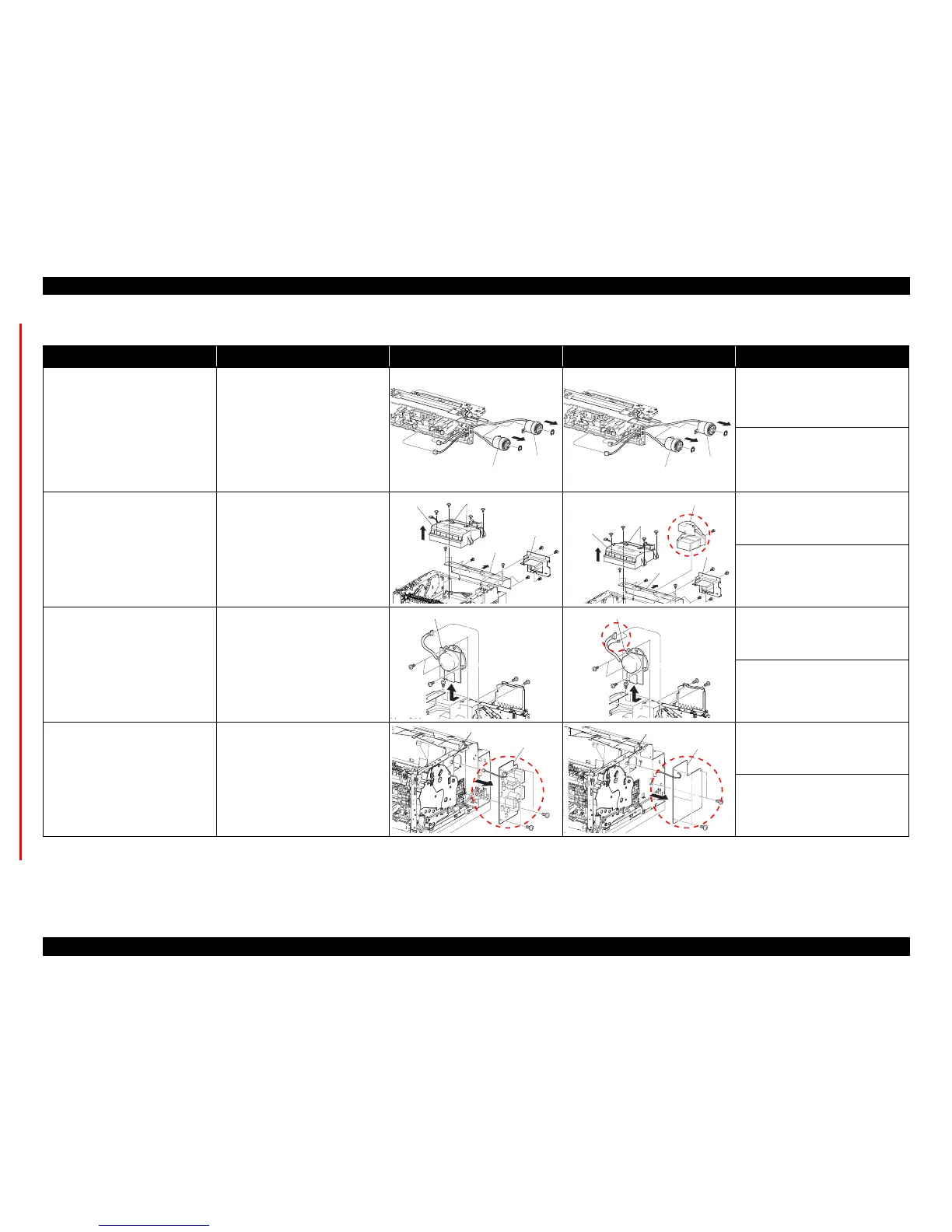

Table 4-2. List of Difference in Disassembly/Assembly
Item Explanation EPL-N3000 AcuLaser M4000N Reference*
CLUTCH ASSY PH, CLUTCH
REGI
Removing procedures are different
due to the change of HARNESS
ASSY TRAY1.
4.5.6 CLUTCH ASSY PH,
CLUTCH REGI (p.219)
4.14.4 CLUTCH ASSY PH,
CLUTCH REGI (AcuLaser
M4000N) (p.384)
ROS ASSY DUCT VACUUM L/R is added for
AcuLaser M4000N.
4.7.1 ROS ASSY (p.239)
4.14.5 ROS ASSY (AcuLaser
M4000N) (p.386)
MAIN MOTOR A harness is added to MAIN
MOTOR for AcuLaser M4000N.
4.9.2 MAIN MOTOR (p.279)
4.14.6 MAIN MOTOR
(AcuLaser M4000N) (p.388)
LVPS LVPS shapes are different, and
connector positions are changed.
4.10.3 LVPS (p.287)
4.14.7 LVPS (AcuLaser
M4000N) (p.390)
CLUTCH REGI
CLUTCH ASSY PH
CLUTCH REGI
CLUTCH ASSY PH
PLATE TIE FRONT
ROS ASSY
CABLE CLAMPS
DUCT HIGH
PLATE TIE FRONT
ROS ASSY
CABLE CLAMPS
DUCT HIGH
DUCT VACUUM L/R
MAIN MOTOR
MAIN MOTOR
PWBA EXIT MOTOR
LVP S
PWBA EXIT MOTOR
LVPS
