4.3.3 GEAR SECTOR
Removal
1. Pull the COVER CST out of 150 PAPER CASSETTE.
2. Unlock the LOCK EXTENSION, and draw out the cassette extension.
3. Release the hook fastening the GEAR PINION, and remove the GEAR PINION
from the HOUSING TOP150.
4. While pushing the lock of the STOPPER GEAR, unlock the LEVER BTM LOCK,
and raise the PLATE ASSY BTM.
5. Move the GUIDE ASSY SD L150 to the inside, push down the hook of the
HOUSING TOP 150, and remove it from the HOUSING TOP 150.
6. Move the GUIDE ASSY SD R150 to the inside, push down the hook of the
HOUSING TOP 150, and remove it from the HOUSING TOP 150.
7. Remove the two screws (gold, tapping, 8mm) in each of the left and right sides and
the six screws (gold, tapping, 8mm) in the rear side, which secure the HOUSING
TOP 150 to the HOUSING BASE 150.
8. Release the four hooks of the HOUSING TOP 150, and remove the HOUSING
TOP 150 and HOUSING EXTENSION 150 from the HOUSING BASE 150.
9. Remove the four screws (gold, tapping, 6mm) securing the COVER EXTENSION
to the HOUSING EXTENSION 150.
10. Remove the COVER EXTENSION from the HOUSING EXTENSION 150.
11. Remove the RACK SIZE. (p.177)
12. Remove the one screw (black, with a collar, 8 mm) securing the GEAR SECTOR.
13. Remove the GEAR SECTOR from the HOUSING EXTENSION 150.

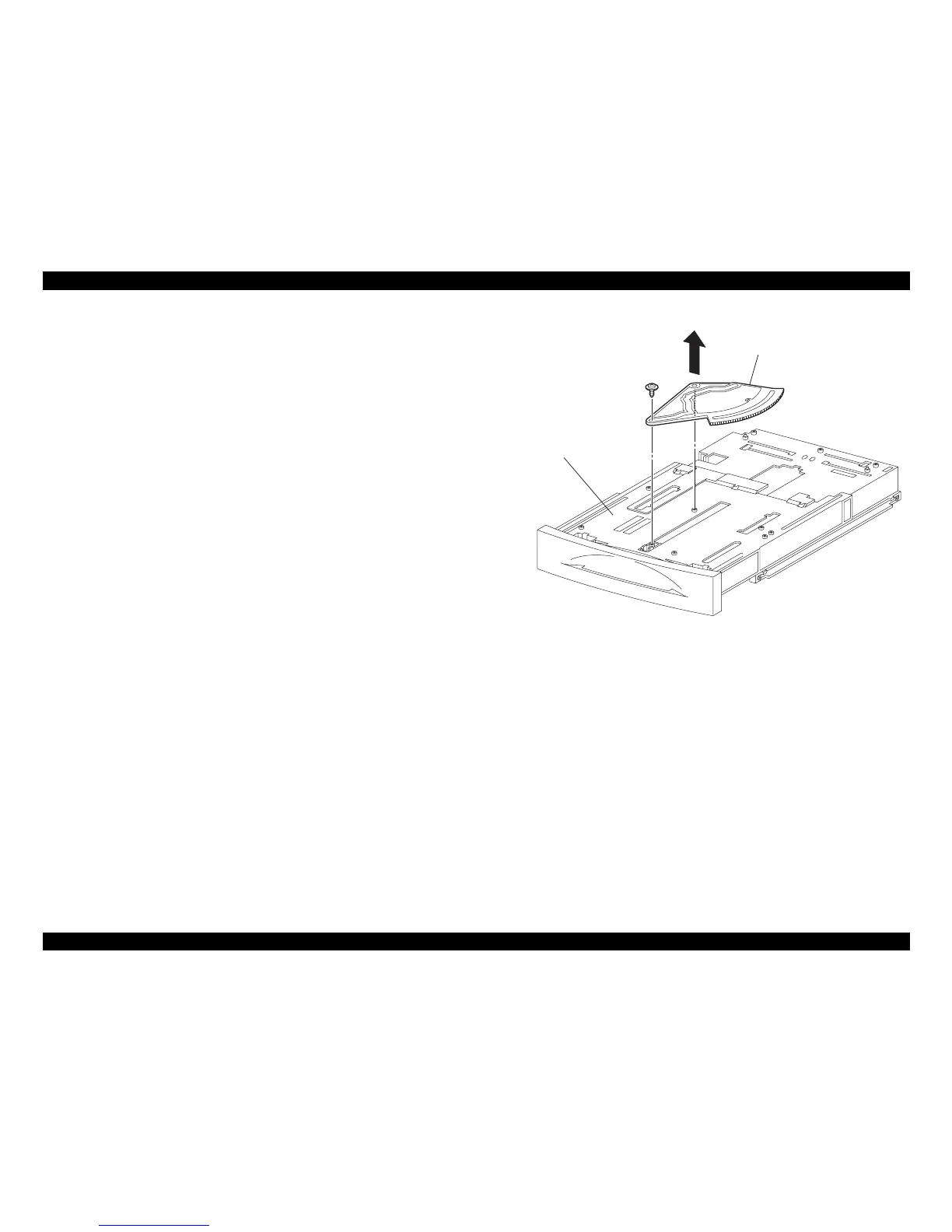

Figure 4- 16. GEAR SECTOR Removal
GEAR SECTOR
JG3118AA
HOUSING EXTENSION 150
13)
12)
