EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Electrical 294
Confidential
4.10.7 SHIELD ASSY ESS
Removal
1. Remove the COVER RIGHT. (p.168)
2. Remove the twelve screws (silver, 6mm) securing the SHIELD ASSY ESS to the
frame.
3. Remove the SHIELD ASSY ESS.
Installation
1. Install the SHIELD ASSY ESS to the frame with the twelve screws (silver, 6mm).
2. Install the COVER RIGHT. (p.168)

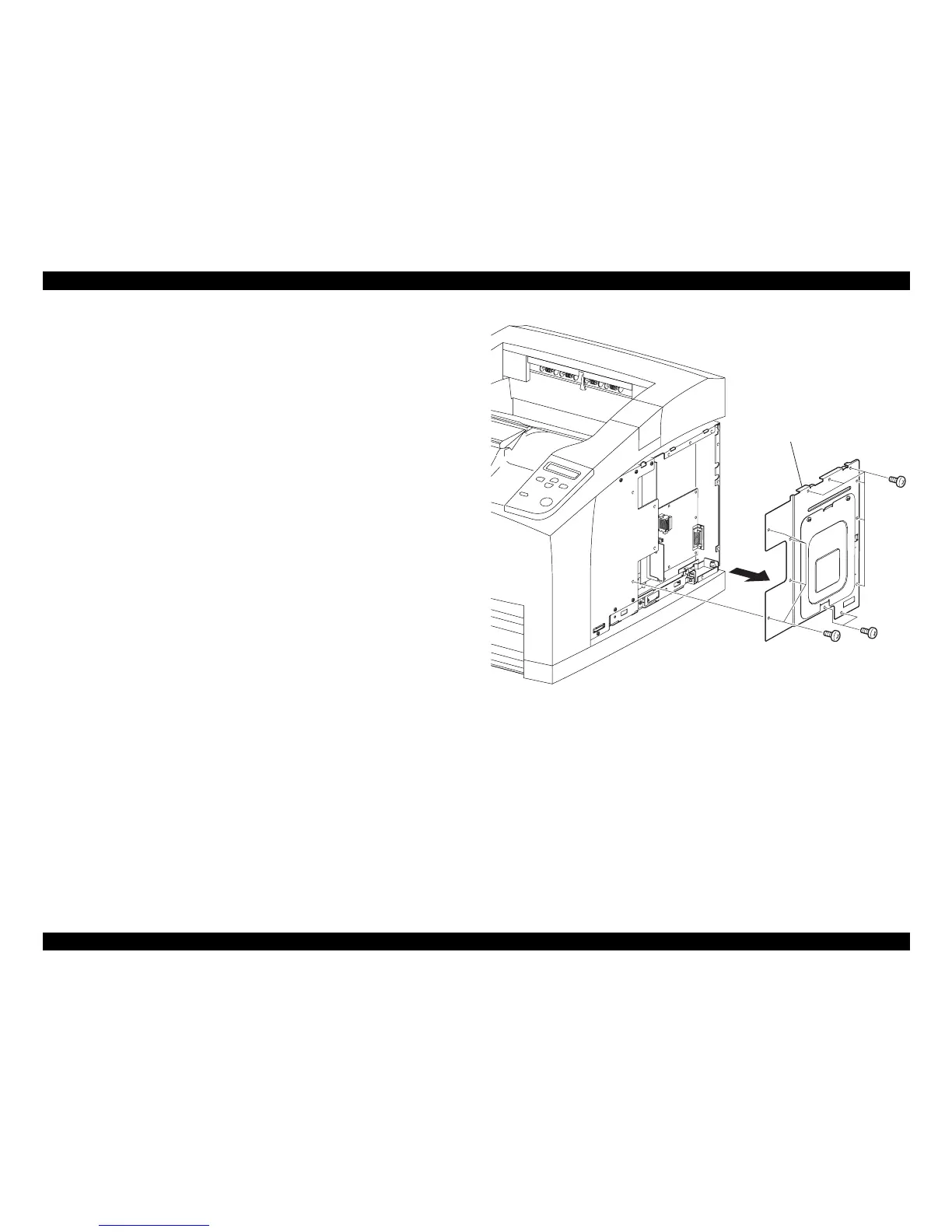

Figure 4- 98. SHIELD ASSY ESS Removal
JG3023E
A
SHIELD ASSY ESS
