EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly 150 Paper Feeder 215
Confidential
4.5.4 ROLL ASSY GEAR NUDGER
Removal
1. Open the COVER OPEN.
2. Hold down the boss of the HOLDER LEFT on the rear side of the 150 FEEDER
ASSY, shift the HOLDER LEFT in the direction of the arrow, and release the
three hooks.
3. Remove the HOLDER LEFT from the SUPPORT NUDGER. At the same time,
the ACTUATOR NO PAPER comes off.
4. Release the hook of the ROLL ASSY NUDGER, and pull the ROLL ASSY
NUDGER out of the SHAFT NUDGER.
5. Release the hook of the ROLL ASSY GEAR NUDGER, and pull the ROLL
ASSY GEAR NUDGER out of the SHAFT NUDGER.

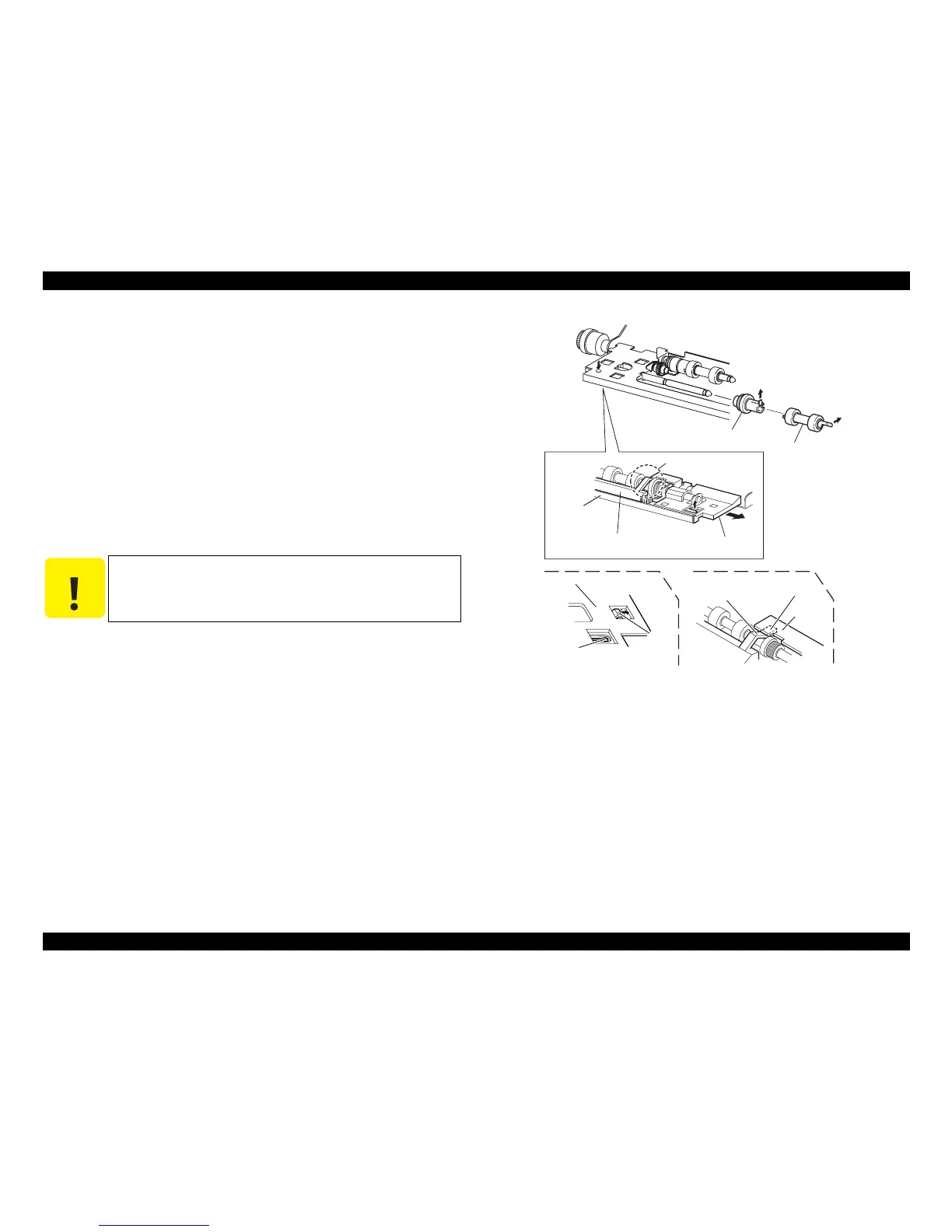

Figure 4- 42. ROLL ASSY GEAR NUDGER Removal
C A U T I O N
In removal, take care not to hold any rubber portion of the ROLL
ASSY NUDGER or ROLL ASSY GEAR NUDGER.
JG3033EA
ROLL ASSY NUDGER
ROLL ASSY GEAR NUDGER
ACTUATOR NO PAPER
SUPPORT NUDGER
UNDER VIEW
HOLDER LEFT
HOOK
LIFT UP
(BOSS)
HOLDER
LEFT
A (SEE DETAILED VIEW)
DETAILED VIEW OF A
ACTUATOR NO PAPER HOOK
HOLDER
LEFT
