EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option OCT 374
Confidential
4.13.11 ROLL OCT LOWER
Removal
1. Remove the COVER REAR. (p.362)
2. Remove the COVER OCT. (p.364)
3. Remove the two screws (gold, tapping, 8mm, gold, 6mm) securing the SUPPORT
OCT LEFT.
4. Remove the two screws (gold, tapping, 8mm) securing the BRACKET MOTOR
OCT.
5. Disconnect the harness connector of the MOTOR ASSY OCT, and remove the
BRACKET MOTOR OCT mounted with the MOTOR ASSY OCT.
6. Remove the GEARs 45, GEAR 19/37, and GEARs 19.
7. Release the hook of the GEAR 19 side BEARING ROLL, and remove the
BEARING ROLL from the HOUSING OCT.
8. Move and remove the ROLL OCT LOWER in the direction of the arrow.

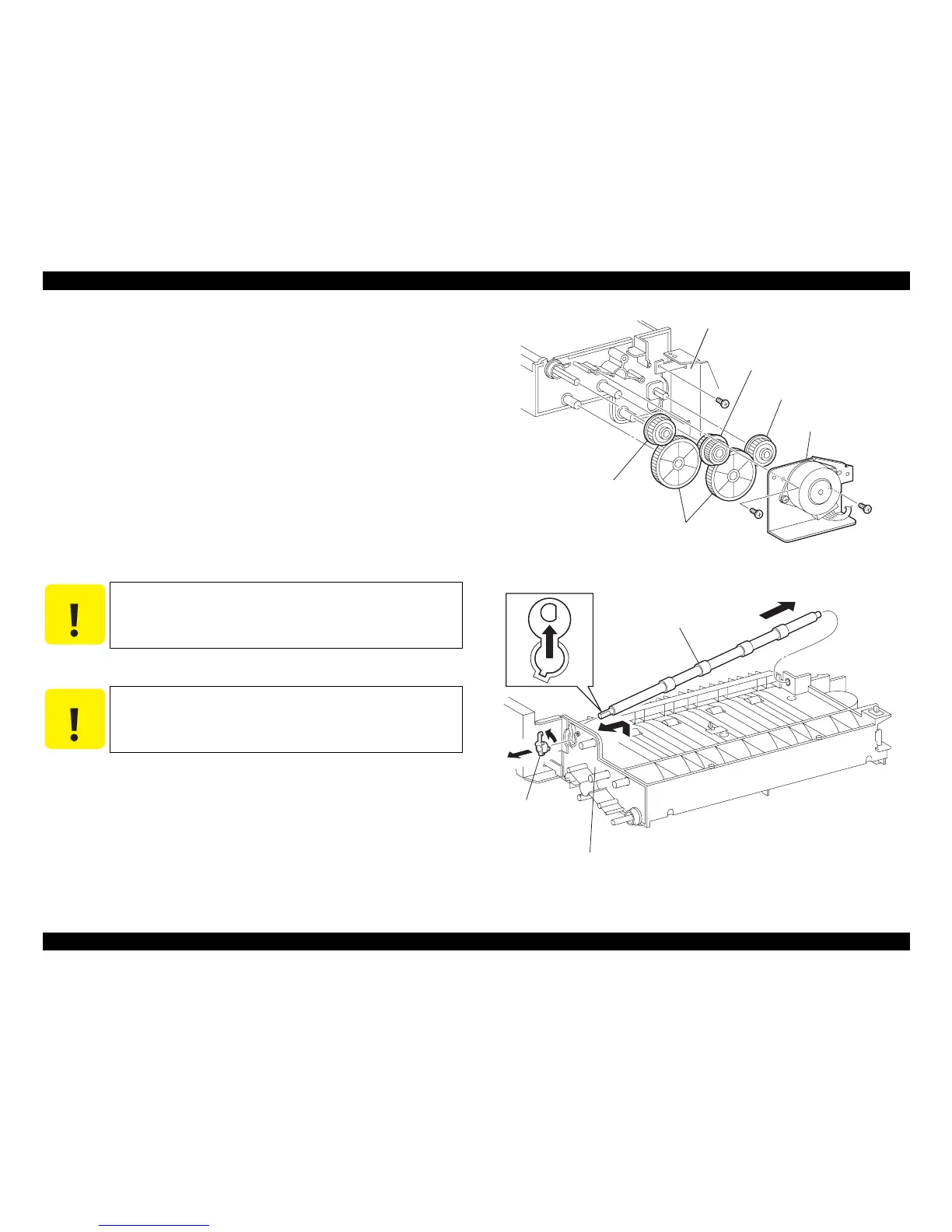

Figure 4- 170. ROLL OCT LOWER Removal
C A U T I O N
Carefully handle the hook of the BEARING ROLL as it may be
damaged by application of large force.
C A U T I O N
When removing the ROLL OCT LOWER, be careful not to hold its
rubber part.
GEAR 45
GEAR 19
GEAR 19
BRACKET MOTOR OCT
GEAR 19/37
SUPPORT OCT LEFT
BEARING ROLL
ROLL OCT LOWER
HOUSING OCT
JG3814AB
7)
6)
8-1)
6)
6)
6)
4)
8-2)
3)
