EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option OCT 373
Confidential
Installation
1. Install the SENSOR OCT to the HOUSING OCT, and secure it with the hooks.
2. Move the ACTUATOR OCT in the direction opposite to the arrow to install it to
the hooks.
3. Install the SPRING ACTUATOR.
4. Connect the connector (P/J730) of the HARNESS ASSY OCT SNR to the
SENSOR OCT.
5. Secure the HARNESS ASSY OCT SNR with the hook.
6. Install the COVER FRONT. (p.366)
7. Install the COVER OCT. (p.364)
8. Install the COVER REAR. (p.362)

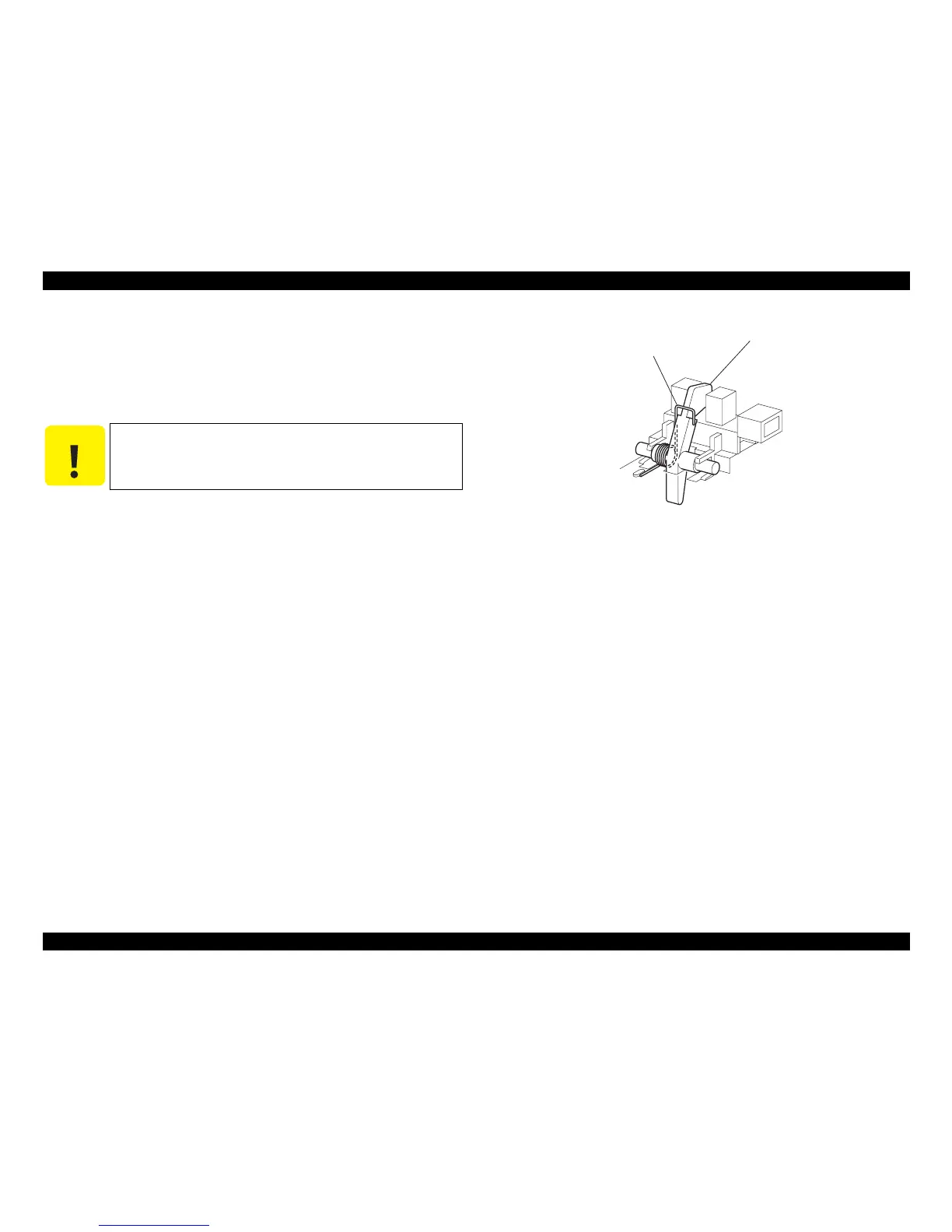

Figure 4- 169. SENSOR OCT Installation
C A U T I O N
Engage the SPRING ACTUATOR with the ACTUATOR OCT as
shown in the figure.
JG3813AA
ACTUATOR OCT
SPRING ACTUATOR
