EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly 150 Paper Feeder 221
Confidential
4.5.7 SENSOR REGI
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the COVER REAR. (p.167)
3. Remove the FAN MAIN. (p.293)
4. Release the hooks of the COVER SENSOR, and remove the COVER SENSOR
from the CHUTE ASSY REGI.
5. Release the hooks of the SENSOR REGI, and remove the SENSOR REGI from
the COVER SENSOR.
6. Remove the HARNESS ASSY TRAY 1 from the SENSOR REGI connector (P/
J241).
Installation
1. Connect the HARNESS ASSY TRAY 1 to the connector (P/J241) of the SENSOR
REGI.
2. Install the SENSOR REGI to the COVER SENSOR, and secure it with the hooks.
3. Install the COVER SENSOR to the CHUTE ASSY REGI, and secure it with the
hooks.
4. Install the FAN MAIN. (p.293)
5. Install the COVER REAR. (p.167)
6. Install the COVER REAR 500. (p.270)

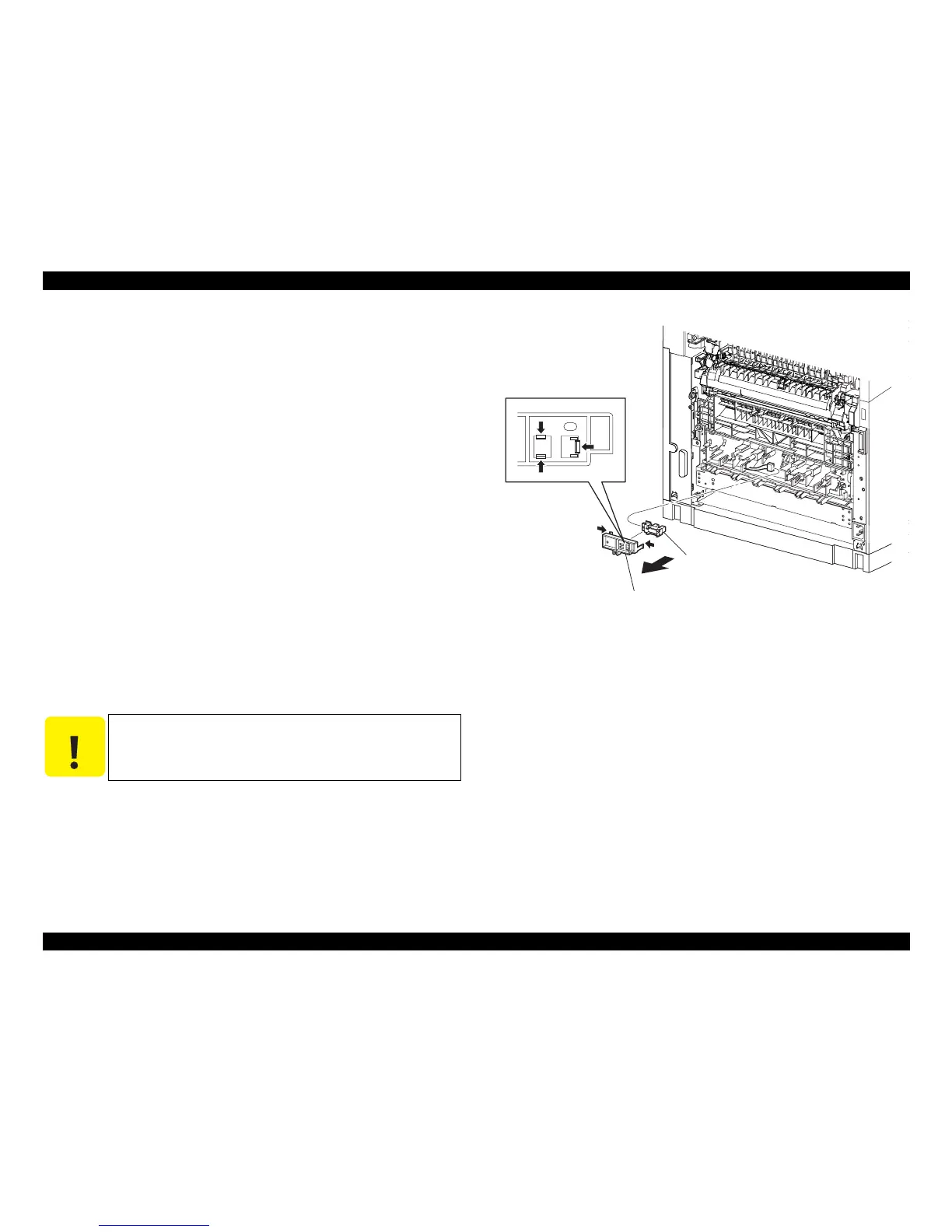

Figure 4- 45. SENSOR REGI Removal
C A U T I O N
Pay attention to the difference between the two types of screws and
use them at their correct positions respectively.
JG3151AA
SENSOR REGI
COVER SENSOR
5)
4-1)
4-2)
