4.8.5 MOTOR ASSY EXIT
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the COVER REAR. (p.167)
3. Remove the COVER LEFT. (p.169)
4. Remove the COVER RIGHT. (p.168)
5. Remove the COVER EXIT 500. (p.261)
6. Remove the 500 EXIT ASSY. (p.262)
7. Remove the CHUTE UP EXIT, CHUTE LOW EXIT. (p.263)
8. Remove the two screws (silver, 6mm) securing the MOTOR ASSY EXIT to the
BRACKET MOTOR EXIT.
9. Remove the MOTOR ASSY EXIT.
Installation
1. Secure the MOTOR ASSY EXIT to the BRACKET MOTOR EXIT with the two
screws (silver, 6mm).
2. Install the CHUTE UP EXIT, CHUTE LOW EXIT. (p.263)
3. Install the 500 EXIT ASSY. (p.262)
4. Install the COVER EXIT 500. (p.261)
5. Install the COVER RIGHT. (p.168)
6. Install the COVER LEFT. (p.169)
7. Install the COVER REAR. (p.167)
8. Install the COVER REAR 500. (p.270)

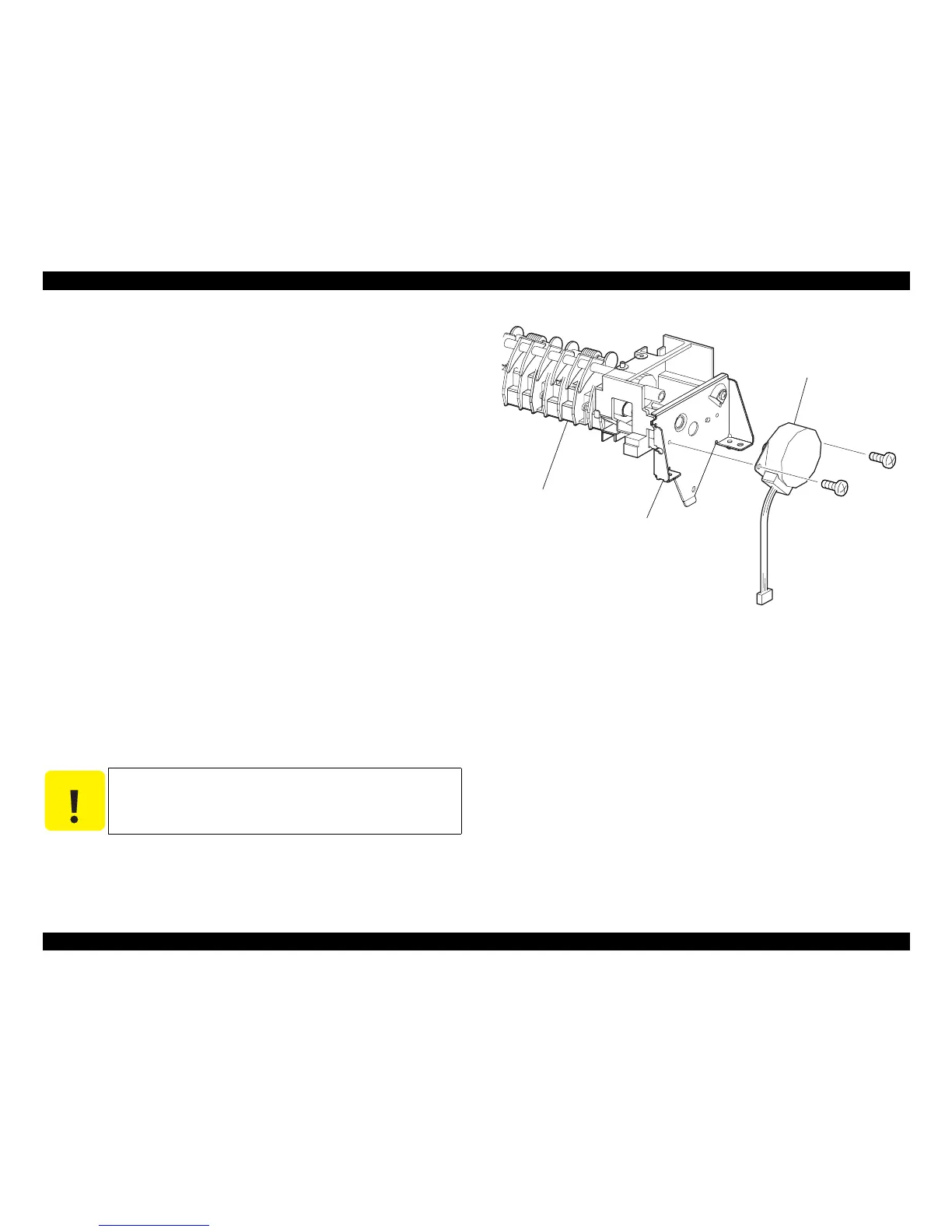

Figure 4- 77. MOTOR ASSY EXIT Removal
C A U T I O N
Pay attention to the difference between the two types of screws and
use them at their correct positions respectively.
JG3081AB
CHUTE LOW EXIT
BRACKET MOTOR EXIT
MOTOR ASSY EXIT
8)
