4.14 AcuLaser M4000N Unique Disassembly
Procedures
4.14.1 COVER REAR (AcuLaser M4000N)
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the five screws (silver, with a collar, 8 mm x2; silver, tapping, 8 mm x3)
securing the COVER REAR.
3. Open the COVER REAR as shown with the arrow and release the three hooks.
4. Disconnect the relay connector from the MAIN FAN 80 and remove the COVER
REAR.
Installation
1. Connect the relay connector to the MAIN FAN 80.
2. Insert the three hooks on the left side of the COVER REAR into the holes of the
printer body, and install the COVER REAR to the printer body.
3. Secure the COVER REAR with the three screws (silver, with a collar, 8 mm x2;
silver, tapping, 8 mm x3).
4. Install the COVER REAR 500. (p.270)

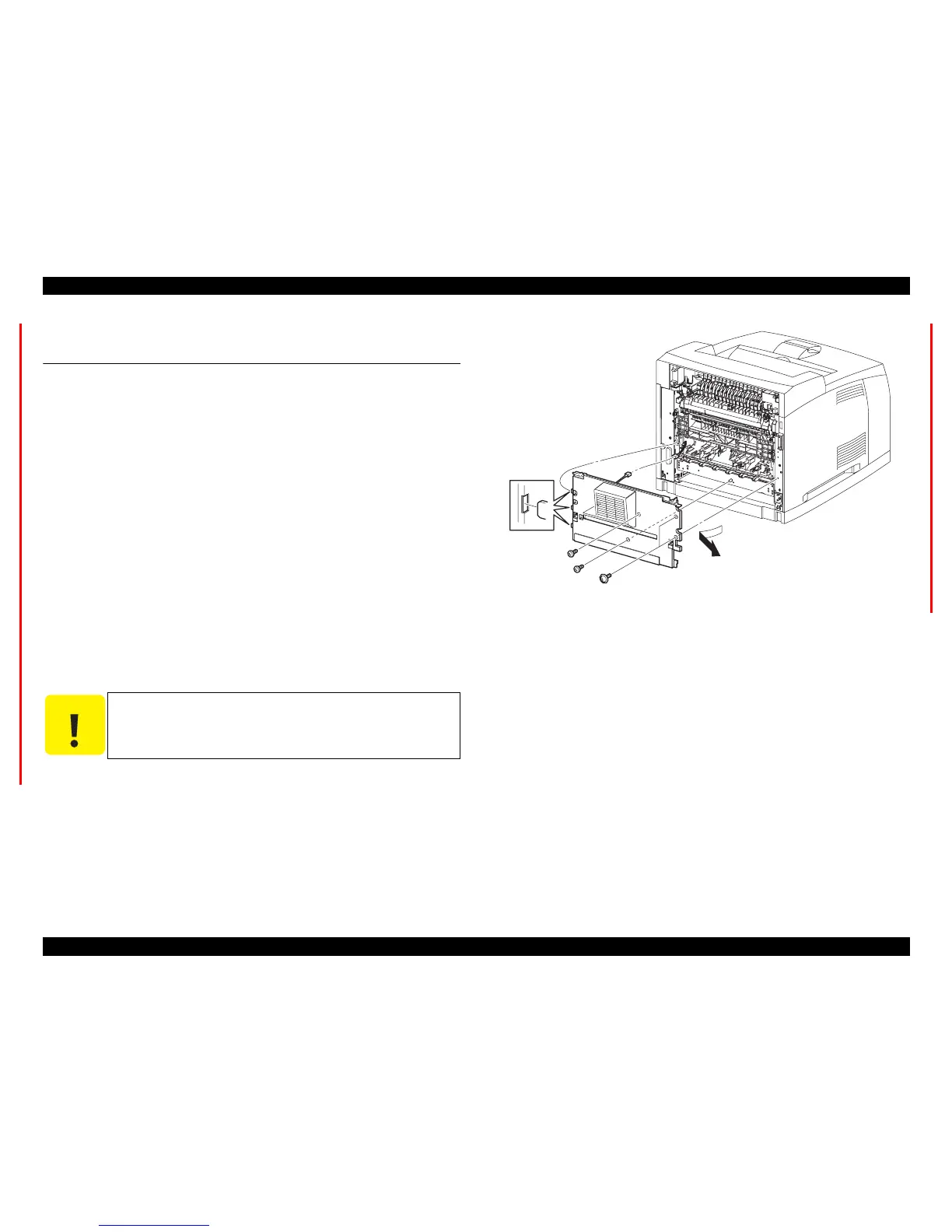

Figure 4-174. COVER REAR Removal
C A U T I O N
Pay attention to the difference between the two types of screws and
use them at their correct positions respectively.
When securing the screws, be careful not to pinch the harness.
J23143EA
3)
2)
4)
