EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly 150 Paper Feeder 222
Confidential
4.5.8 SENSOR NO PAPER
Removal
1. Open the COVER OPEN.
2. Open the COVER OPEN 500.
3. Remove the FUSER ASSY. (p.253)
4. Slightly lift the 150 FEEDER ASSY, insert a screwdriver into the space of the part
where the FUSER ASSY was mounted, remove the screw (gold, 6mm) that
mounts the HOLDER NO PAPER SENSOR.
5. Remove the HOLDER NO PAPER SENSOR from the 150 FEEDER ASSY.
6. Release the hooks securing the SENSOR NO PAPER to the HOLDER NO
PAPER SENSOR, and remove the SENSOR NO PAPER.
7. Remove the HARNESS ASSY TRAY 1 from the SENSOR NO PAPER connector
(P/J240).
Installation
1. Connect the connector (P/J240) of the SENSOR NO PAPER to the HARNESS
ASSY TRAY 1.
2. Install the SENSOR NO PAPER to the HOLDER NO PAPER SENSOR, and
secure it with the hooks.
3. Insert the wires of the HARNESS ASSY TRAY 1 into the notch of the HOLDER
NO PAPER SENSOR as shown in the figure.
4. Insert a screwdriver into the space of the part where the FUSER ASSY was
mounted, and install the HOLDER NO PAPER SENSOR to the 150 FEEDER
ASS with the one screw (gold, 6mm).
5. Install the FUSER ASSY. (p.253)
6. Install the COVER REAR 500. (p.270)
7. Close the COVER OPEN.

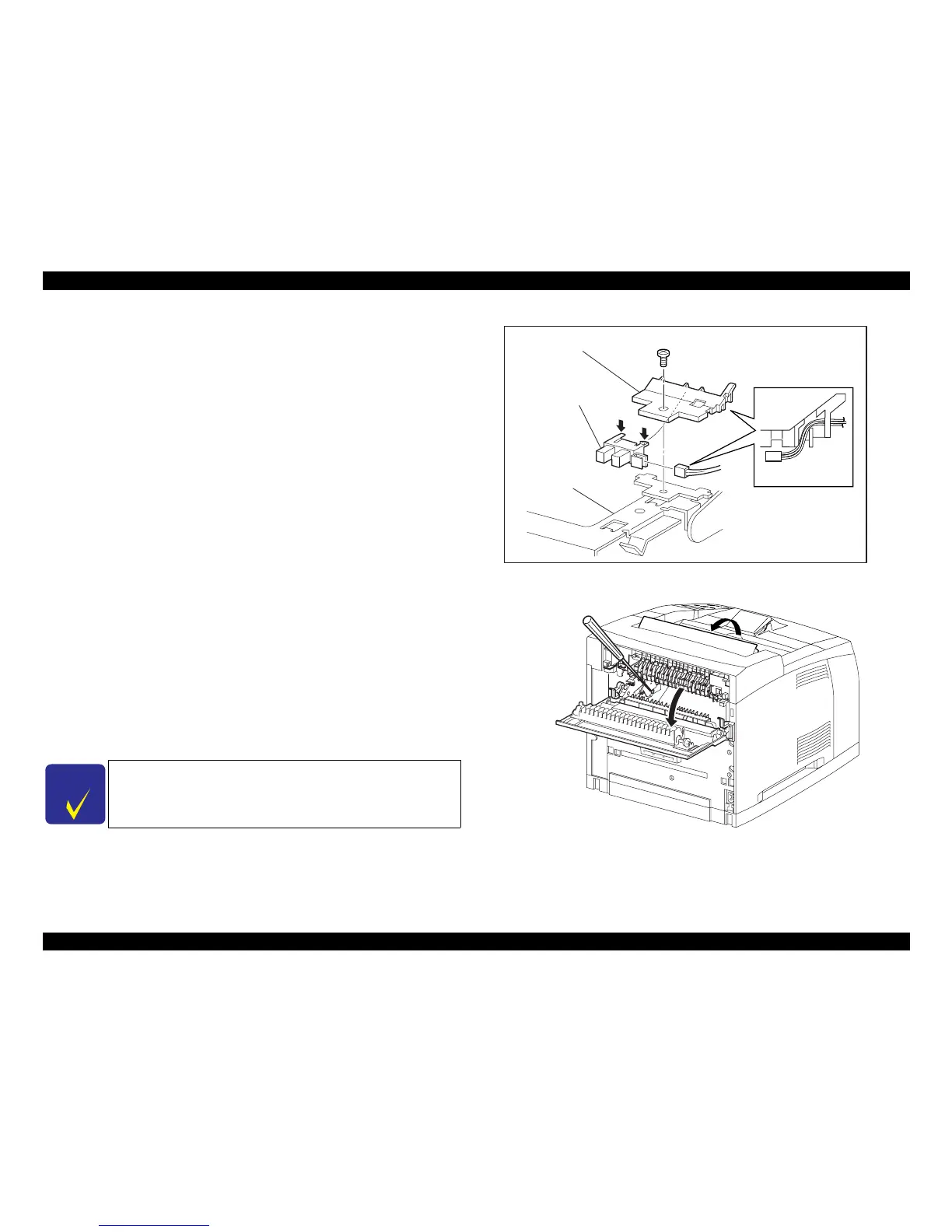

Figure 4- 46. SENSOR NO PAPER Removal
C H E C K
P O I N T
After installation, check that the wires of the HARNESS ASSY
TRAY 1 are not pinched.
JG3010E
A
SENSOR NO PAPER
150 FEEDER ASSY
HOLDER NO PAPER SENSOR
4)
6)
7)
1)
4)
2)
