EPSON EPL-N3000/AcuLaser M4000N Revision C
Appendix Connectors 409
Confidential
7.1 Connectors
This section shows the connector locations of EPSON EPL-N3000/AcuLaser
M4000N. [P] and [J] represent “plug” and “jack”, respectively.

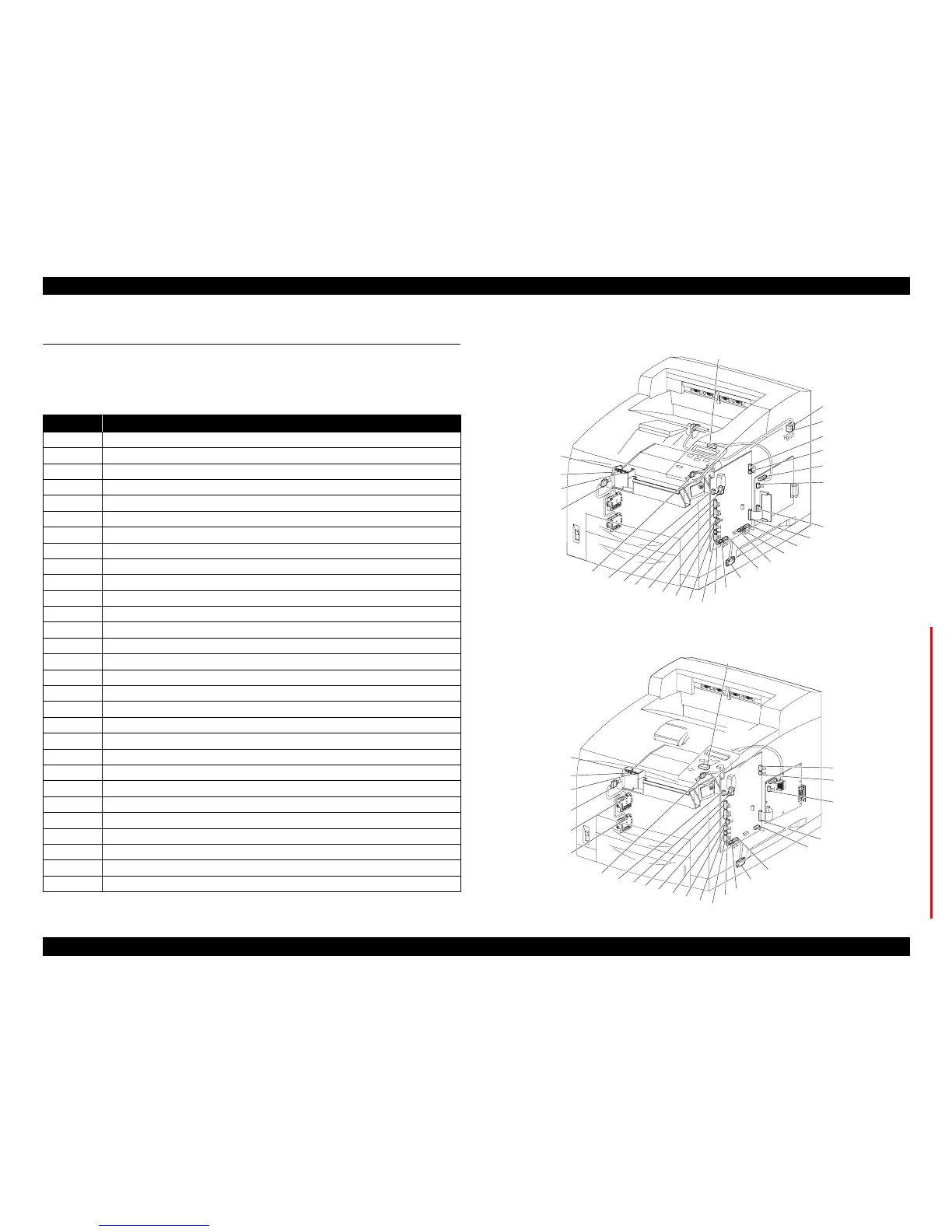

7.1.1 Connector P/J Locations of the Printer
Note “*1”: *Used only for the machines specified for 1:500 PAPER EXIT.
 EPL-N3000
 AcuLaser M4000N
P/J Remarks
1
Connects OPERATION PANEL and HARNESS ASSY PANEL
10
Connects HARNESS ASSY LVPS and HVPS/MCU
11
Connects HARNESS ASSY LVPS and HVPS/MCU
13
Connects HARNESS ASSY ROS and HVPS/MCU
14
Connects HARNESS ASSY ROS and HVPS/MCU
15
Connects HARNESS ASSY ANT and HVPS/MCU
16
Connects HARNESS ASSY ROS and HVPS/MCU
17
Connects HARNESS ASSY ROS and HVPS/MCU
18
Connects HARNESS ASSY LVPS and HVPS/MCU
20
Connects HARNESS ASSY FDR1 and HVPS/MCU
22
Connects HARNESS ASSY TONER1 and HVPS/MCU
24
Connects HARNESS ASSY CHUTE and HVPS/MCU
26
Connects HARNESS ASSY LOW PAPER SNR and HVPS/MCU
27
Connects HARNESS ASSY LVPS and HVPS/MCU
28
Connects FFC ASSY ESS and HVPS/MCU
29 *1
Connects HARNESS ASSY EXIT SNR1 and HVPS/MCU
30 *1
Connects HARNESS ASSY OCT1 and HVPS/MCU
31
Connects GUIDE ASSY CRU and HVPS/MCU
131
Connects ROS ASSY and HARNESS ASSY ROS
140
Connects ROS ASSY and HARNESS ASSY ROS
144
Connects INTERLOCK SW and HARNESS ASSY LVPS
160
Connects ROS ASSY and HARNESS ASSY ROS
170
Connects ROS ASSY and HARNESS ASSY ROS
280
Connects FFC ASSY ESS and "BOARD ASSY.,MAIN"
400
Connects HARNESS ASSY LVPS and "BOARD ASSY.,MAIN"
411
Connects COVER OPEN SW and HARNESS ASYY LVPS
1821
Connects GUIDE TRAY L ASSY and HARNESS ASSY LVPS
2083
Connects HARNESS ASSY FDR1 and HARNESS ASSYFDR2
JD2083B
Connects HARNESS ASSY PANEL and ESS
1
144
411
30
29
28
24
26
22
20
16
17
18
15
14
13
27
11
10
31
170
1821
160
140
131
2083
JD2083B
400
280
1
28
24
20
16
17
18
15
14
13
27
11
10
31
170
1821
160
140
180
210
131
2083
30
29
400
