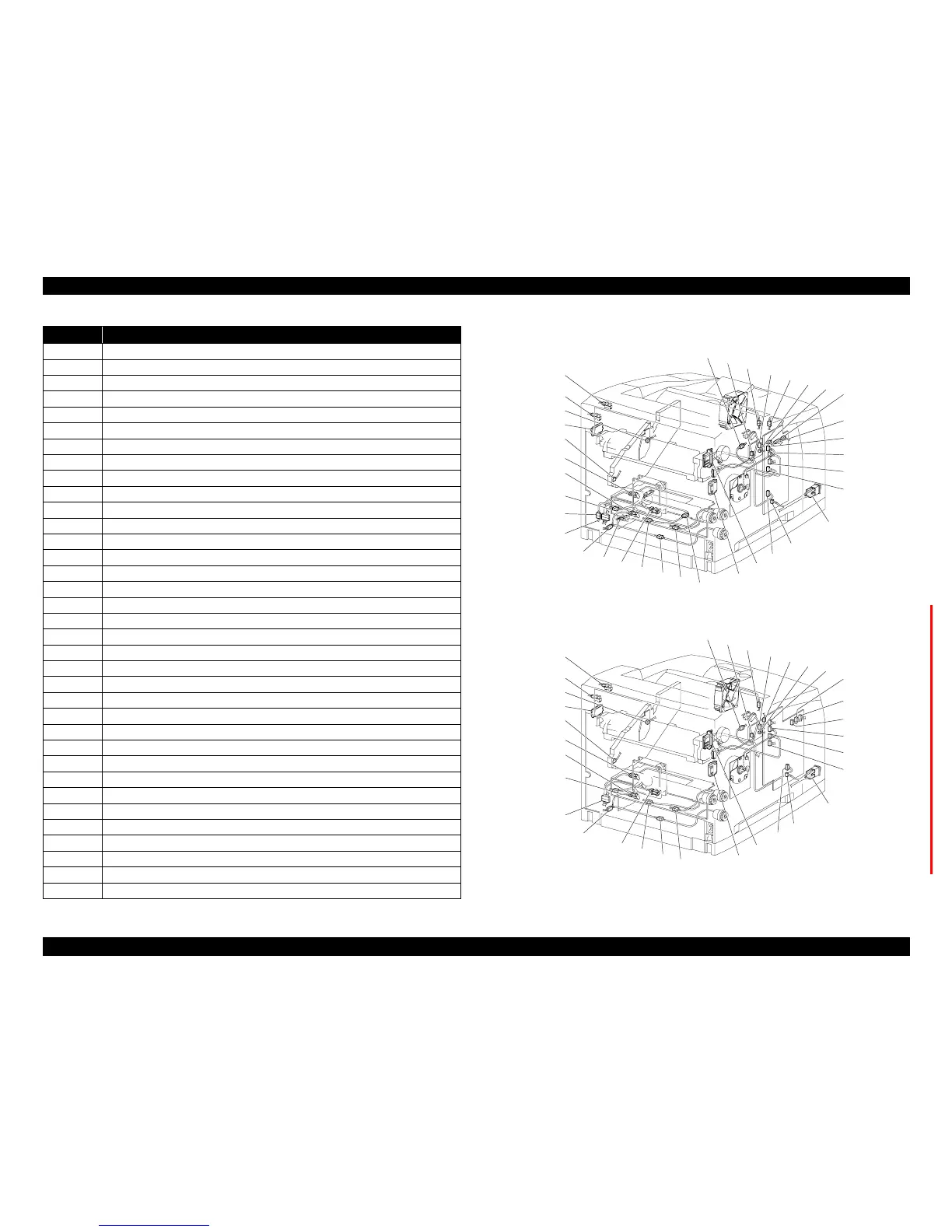

EPSON EPL-N3000/AcuLaser M4000N Revision C
Appendix Connectors 410
Confidential
Note “*1”: *Used only for the machines specified for 1:500 PAPER EXIT.
 EPL-N3000
 AcuLaser M4000N
P/J Remarks
40
Connects HARNESS ASSY LVPS and LVPS
41
Connects HARNESS ASSY LVPS and LVPS
42
Connects HARNESS ASSY LVPS and LVPS
43
Connects MAIN MOTOR and LVPS
44
Connects INTERLOCK SW REAR and LVPS
45
Connects INTERLOCK SW 24V and LVPS
46
Connects HARNESS ASSY FUSER and LVPS
47
Connects HARNESS ASSY FUSER and LVPS
48
Connects HARNESS ASSY 100V and LVPS
101
Connects LVPS and PWBA EXIT MOTOR
102
Connects HARNESS ASSY LVPS and PWBA EXIT MOTOR
103
Connects MOTOR ASSY EXIT and PWBA EXIT MOTOR
141
Connects HARNESS ASSY ROS and HARNESS ASSY LVPS
142
Connects HARNESS ASSY LVPS and INTERLOCK SW 5V
150
Connects PWBA ASSY ANT and HARNESS ASSY ANT
220
Connects SENSOR TONER and HARNESS ASSY TONER1
221
Connects HARNESS ASSY TONER1 and HARNESS ASSY TONER2
240
Connects SENSOR NO PAPER and HARNESS ASSY TRAY1
241
Connects SENSOR REGI and HARNESS ASSY TRAY1
242
Connects CLUTCH ASSY PH and HARNESS ASSY TRAY1
243
Connects CLUTCH REGI and HARNESS ASSY TRAY1
244
Connects FAN MAIN and HARNESS ASSY TRAY1
245
Connects HARNESS ASSY TRAY1 and HARNESS ASSY CHUTE
246
Connects SENSOR NO PAPER and HARNESS ASSY TRAY2
247
Connects CLUTCH ASSY PH and HARNESS ASSY TRAY2
248
Connects HARNESS ASSY TRAY2 and HARNESS ASSY CHUTE
260
Connects SENSOR LOW PAPER and HARNESS ASSY LOW PAPER SNR
270
Connects FAN SUB and HARNESS ASSY LVPS
290 *1
Connects SENSOR FULL STACK and HARNESS ASSY EXIT SNR1
291 *1
Connects SENSOR FACE UP OPEN and HARNESS ASSY EXIT SNR1
310
Connects Imaging Cartridge and GUIDE ASSY CRU
480
Connects HARNESS ASSY 100V and POWER SWITCH
2750
Connects HARNESS ASSY LVPS and HARNESS ASSY DUP
3070 *1
Connects HARNESS ASSY OCT1 and HARNESS ASSY OCT2
4647
Connects HARNESS ASSY FUSER and FUSER ASSY
