Epson EPL-N3000 - Shield Assy Window

EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Electrical 295
Confidential
4.10.8 SHIELD ASSY WINDOW
Removal
1. Remove the COVER RIGHT. (p.168)
2. Loosen the two screws securing the SHIELD ASSY WINDOW to the frame.
3. Remove the COVER RIGHT. (p.168)
Installation
1. Install the SHIELD ASS WINDOW to the frame with the two screws.
2. Install the COVER RIGHT. (p.168)

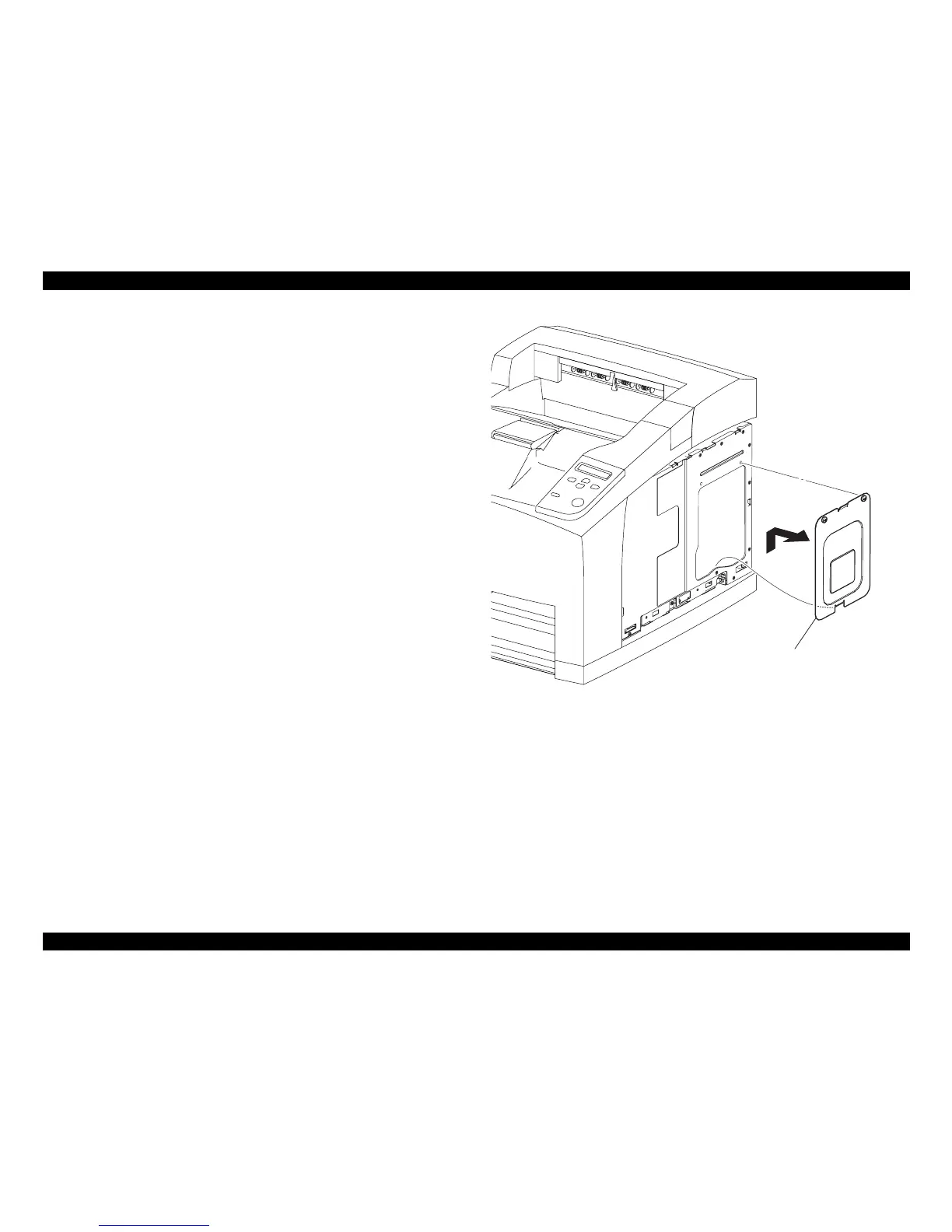

Figure 4- 99. SHIELD ASSY WINDOW Removal
JG3024E
A
SHIELD ASSY WINDOW
3)
2)
