EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option Duplex 359
Confidential
4.12.13 COVER HARNESS, HARNESS ASSY DUP
Removal
1. Remove the COVER LEFT. (p.353)
2. Remove the COVER RIGHT. (p.354)
3. Remove the HSG LOWER DUP. (p.344)
4. Remove the one screw (gold, tapping, 8mm) securing the COVER HARNESS.
5. Release the two hooks of the COVER HARNESS, and remove it from the HSG
LOWER DUP.
6. Disconnect the HARNESS ASSY DUP from the HSG LOWER DUP, and remove
the HARNESS ASSY DUP.
Installation
1. Install the HARNESS ASSY DUP.
2. Fit the COVER HARNESS to the HSG LOWER DUP, and install it with the two
hooks.
3. Secure the COVER HARNESS with the one screw (gold, tapping, 8mm).
4. Install the HSG LOWER DUP. (p.344)
5. Install the COVER RIGHT. (p.354)
6. Install the COVER LEFT. (p.353)

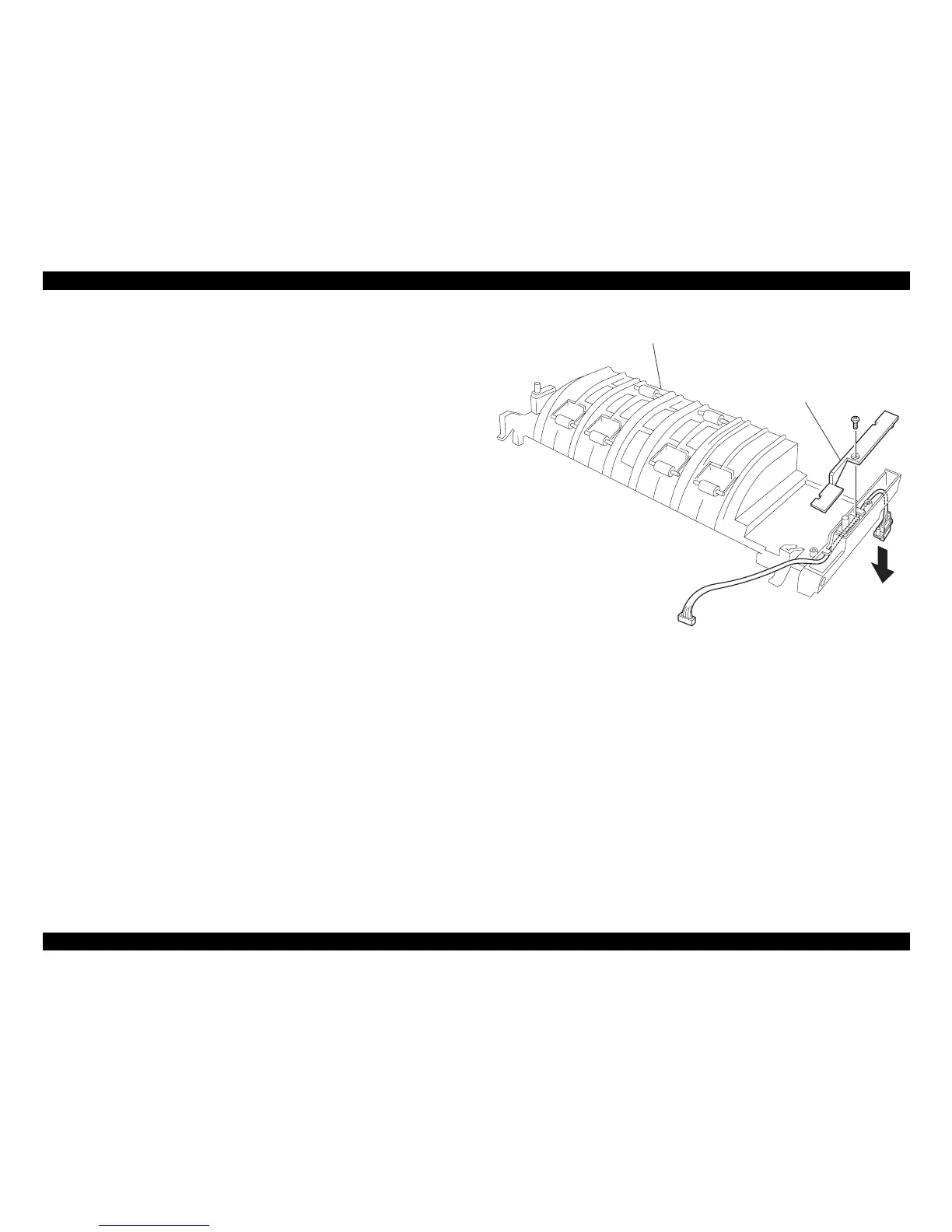

Figure 4- 156. COVER HARNESS, HARNESS ASSY DUP Removal
JG3618AB
HSG LOWER DUP
COVER HARNESS
