EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly 550 Paper Feeder 224
Confidential
4.6 550 Paper Feeder
4.6.1 550 FEEDER ASSY
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the FUSER ASSY. (p.253)
3. Remove the COVER REAR. (p.167)
4. Remove the FAN MAIN. (p.293)
5. With the BTR ASSY installed, remove the CHUTE TRANSFER. (p.255)
6. Remove the 150 FEEDER ASSY. (p.211)
7. Disconnect the connector (P/J248) of the HARNESS ASSY TRAY 2 from the
HARNESS ASSY CHUTE.
8. Disconnect and release the harness from the two clamps of the PLATE TIE.
9. Remove the four screws (silver, with collars, with spring washers, 8mm) securing
the PLATE TIE to the frame.
10. Remove the two screws (silver, with collars, with spring washers, 8mm) securing
the CHUTE OUT to the frame.
11. Remove the 550 FEEDER ASSY from the frame.

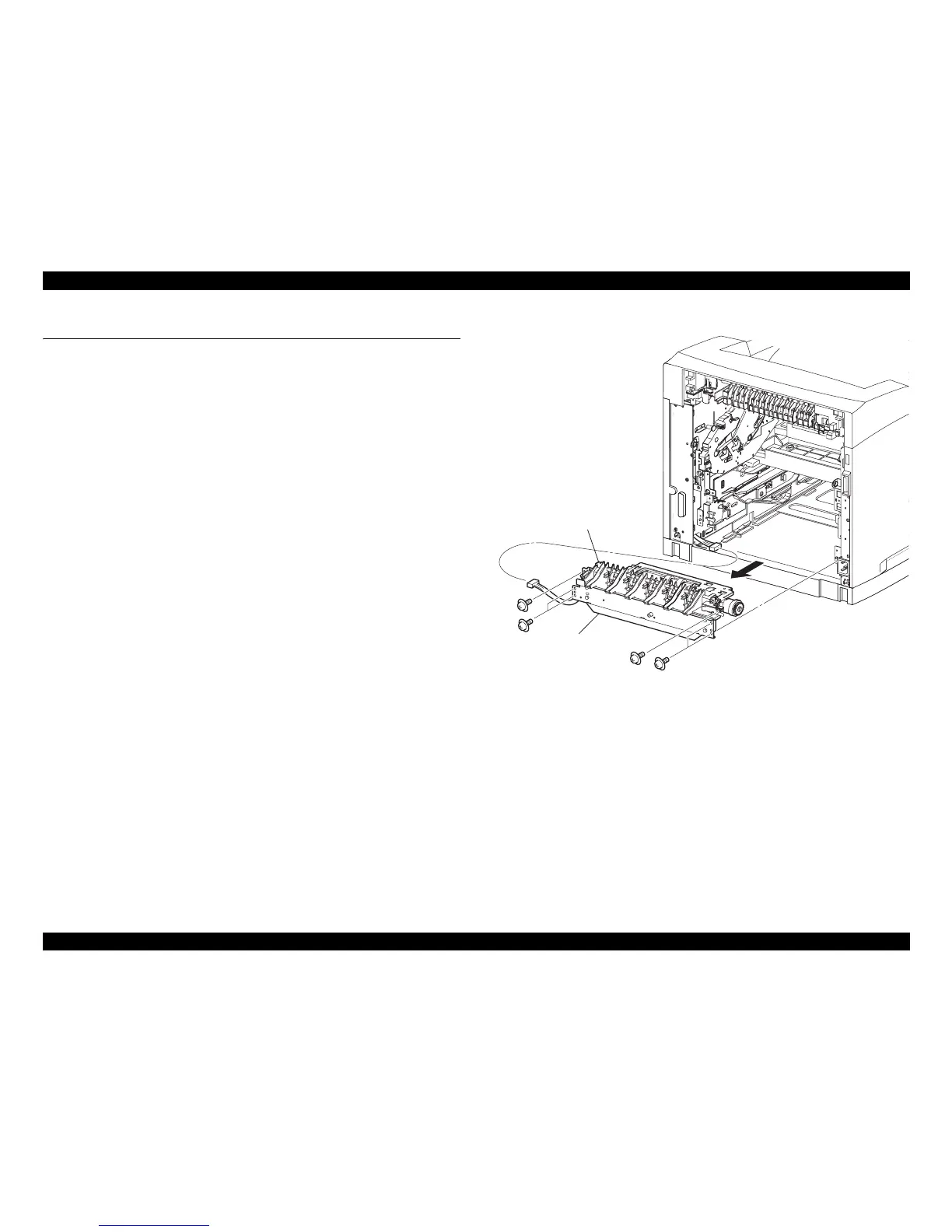

Figure 4- 48. 550 FEEDER ASSY Removal
JG3154AA
PLATE TIE
CHUTE OUT
7)
10)
9)
1)
