EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly 550 Paper Feeder 225
Confidential
Installation
1. Install the 550 FEEDER ASSY to the frame.
2. Secure the CHUTE OUT to the frame with the two screws (silver, with collars,
with spring washers, 8mm).
3. Secure the PLATE TIE to the frame with the four screws (silver, with collars, with
spring washers, 8mm).
4. Clamp the harness with the two clamps of the PLATE TIE. (See the figure)
5. Connect the connector (P/J248) of the HARNESS ASSY TRAY 2 to the
HARNESS ASSY CHUTE.
6. Install the 150 FEEDER ASSY. (p.211)
7. Install the CHUTE TRANSFR. (p.255)
8. Install the FAN MAIN. (p.293)
9. Install the COVER REAR. (p.167)
10. Install the FUSER ASSY. (p.253)
11. Install the COVER REAR 500. (p.270)

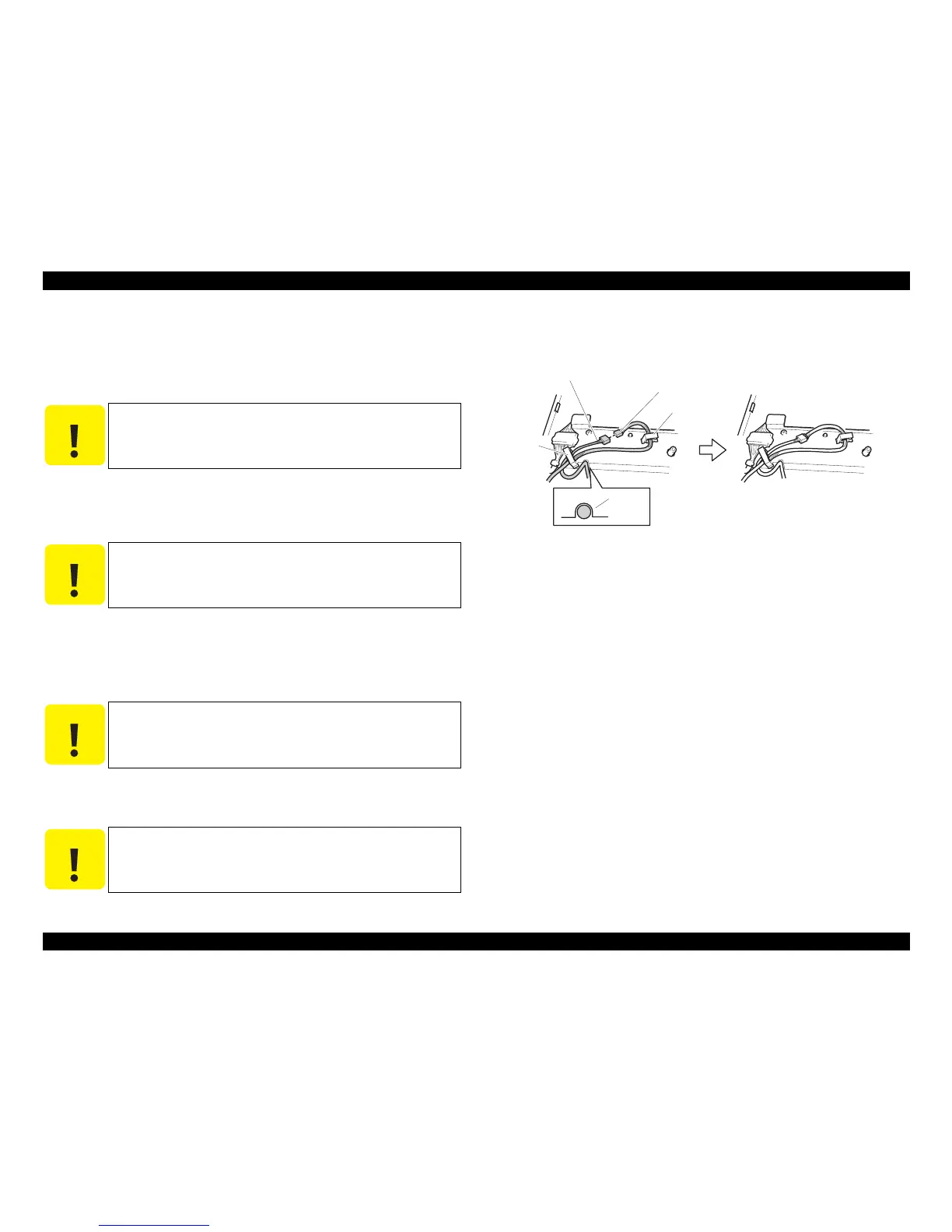

Figure 4- 49. 550 FEEDER ASSY Installation
C A U T I O N
One of the screws securing the CHUTE OUT to the frame should
also tighten the SPRING EARTH.
C A U T I O N
When installing, pass the harness through the notch of the PLATE
TIE and route it as indicated by the arrow.
C A U T I O N
In the hole on the left side of the CHUTE TRANSFER, a screw need
not be tightened.
C A U T I O N
Pay attention to the difference between the two types of screws and
use them at their correct positions respectively.
JG3114A
To Next Page
