EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option Duplex 353
Confidential
4.12.9 COVER LEFT
Removal
1. Remove the two screws (gold, tapping, 8mm) securing the COVER LEFT.
2. Remove the COVER LEFT from the COVER HSG DUP.
Installation
1. Install the COVER LEFT to the COVER HSG DUP with the two screws (gold,
tapping, 8mm).

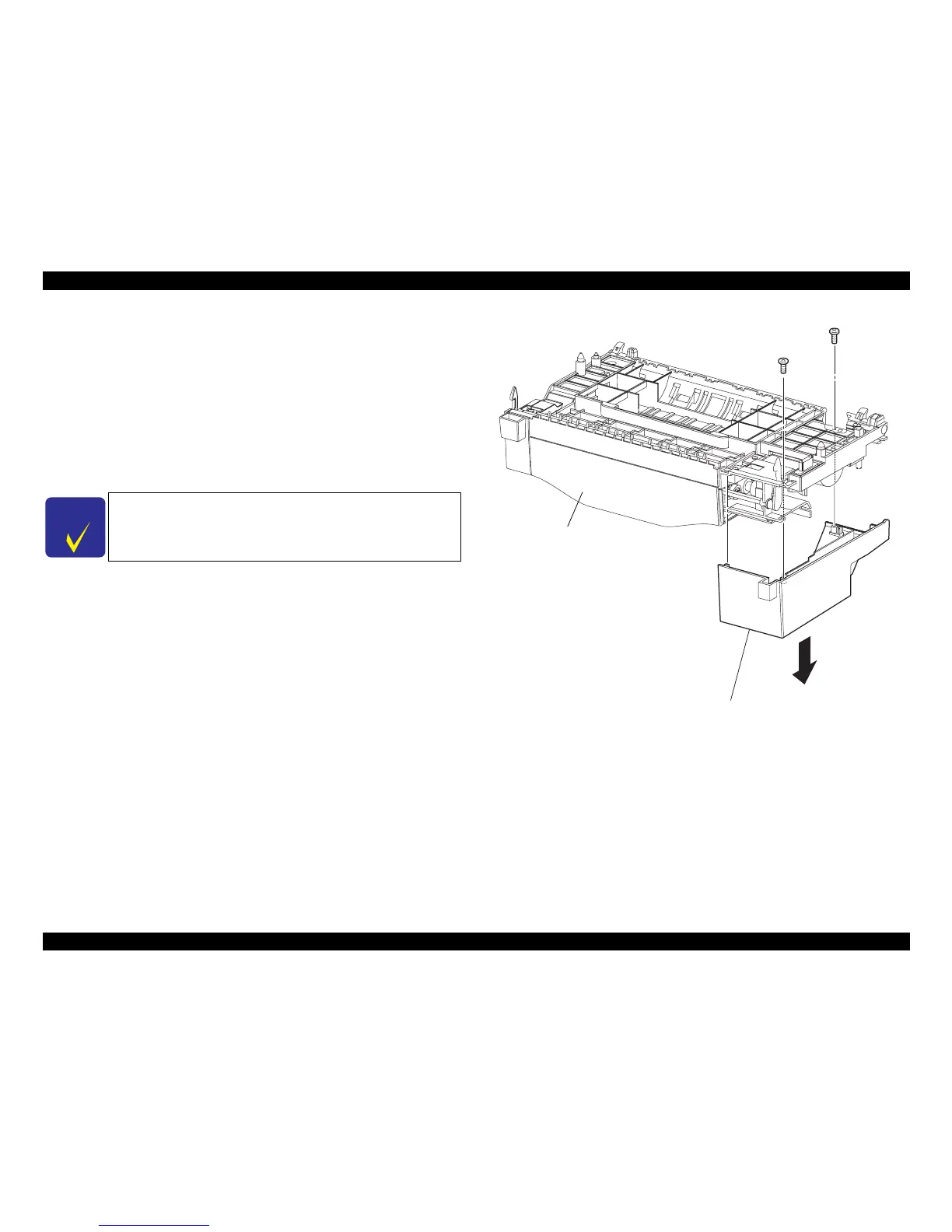

Figure 4- 152. COVER LEFT Removal
C H E C K
P O I N T
When installing the COVER LEFT, match its positioning holes
with the bosses of the COVER HSG DUP.
COVER LEFT
COVER HSG DUP
JG3609AB
1)
2)
