4.13.9 SOLENOID ASSY GATE
Removal
1. Remove the COVER REAR. (p.362)
2. Remove the COVER OCT. (p.364)
3. Remove the COVER FRONT. (p.366)
4. Remove the PWBA OCT. (p.368)
5. Remove the MOTOR ASSY OFFSET. (p.370)
6. Remove the two screws (gold, 6mm) securing the SOLENOID ASSY GATE to
the printer body.
7. Release the hook securing the SOLENOID ASSY GATE, and remove the
SOLDNOID ASSY GATE.
Installation
1. After installing the SOLENOID ASSY GATE to the hook of the HOUSING OCT,
install it with the two screws (gold, 6mm).
2. Install the MOTOR ASSY OFFSET. (p.370)
3. Install the PWBA OCT. (p.368)
4. Install the COVER FRONT. (p.366)
5. Install the COVER OCT. (p.364)
6. Install the COVER REAR. (p.362)

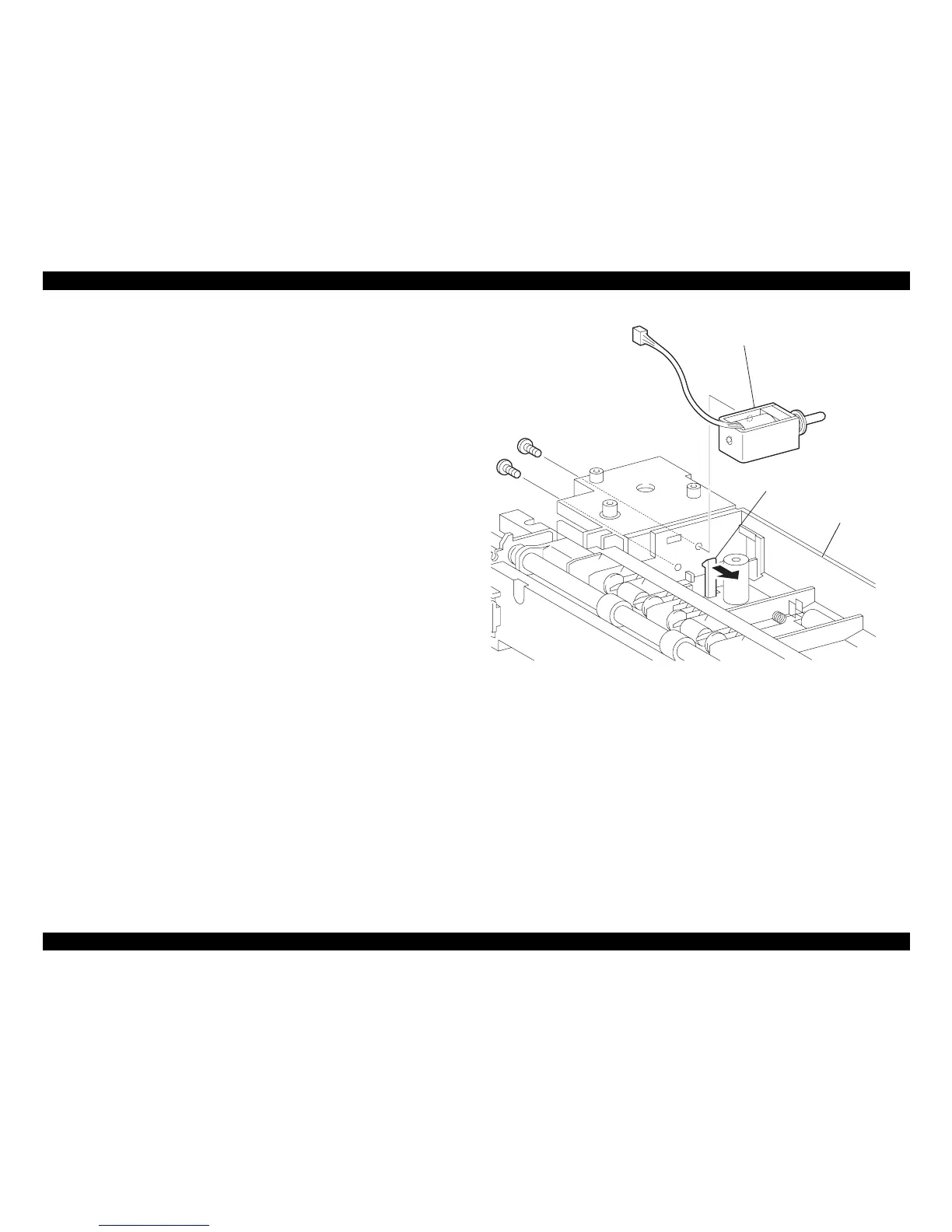

Figure 4- 166. SOLENOID ASSY GATE Removal
HOOK
HOUSING OC
T
JG3810AA
SOLENOID ASSY GATE
7)
6)
