EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly 500 Paper Exit 275
Confidential
4.8.14 GATE FU
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the five screws (gold, tapping, 6mm) securing the CHUTE LOW FU to
the COVER REAR 500.
3. Release the hook of the COVER REAR 500, and remove the CHUTE LOW FU
from the COVER REAR 500.
4. Remove the LEVER GATE HOLDER, SPRING LEVER GATE, LEVER GATE FU.
(p.272)
5. Remove the two screws (gold, tapping, 6mm) securing the CHUTE UP FU.
6. Remove the CHUTE LOW FU while bowing the GATE FU.
Installation
1. Install the GATE FU to the CHUTE LOW FU.
2. Secure the CHUTE UP FU with the two screws (gold, tapping, 6mm).
3. Install the LEVER GATE HOLDER, SPRING LEVER GATE, LEVER GATE FU.
(p.272)
4. Install the CHUTE LOW FU to the COVER REAR 500, and secure it at the hook.
5. Secure the CHUTE LOW FU to the COVER REAR 500 with the five screws
(gold, tapping, 6mm).
6. Install the COVER REAR 500. (p.270)

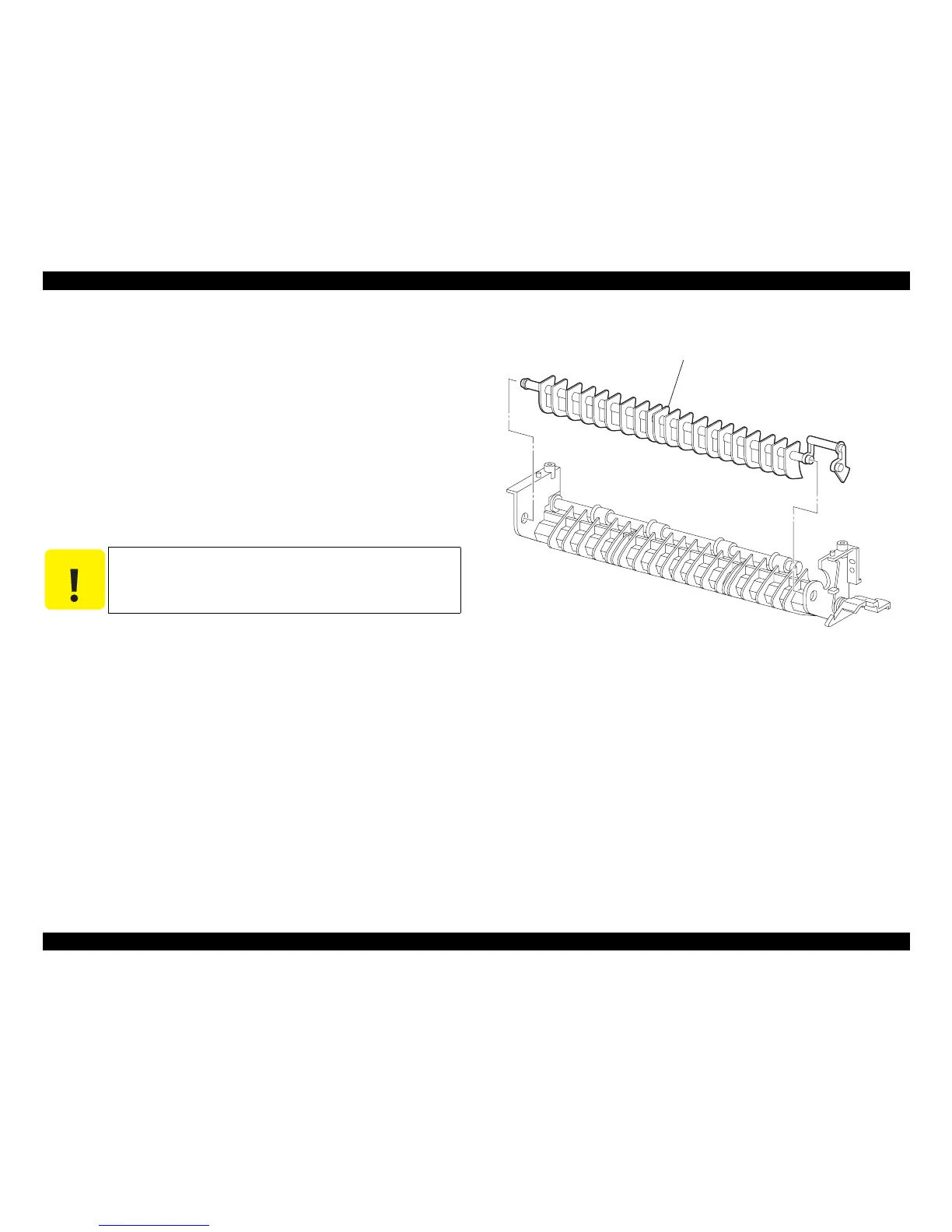

Figure 4- 86. GATE FU Removal
C A U T I O N
Be careful not to damage the GATE FU since it might break when
giving a big force to it.
GATE FU
JG3306AA
