EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option 550 Paper Feeder 341
Confidential
4.11.27 SPRING EARTH TOP
Removal
1. Remove the one screw (silver, 6mm) securing the SPRING EARTH TOP to the
FRAME TOP ASSY.
2. Remove the SPRING EARTH TOP.
Installation
1. Insert the front end of the SPRING EARTH TOP into the hole of the FRAME
TOP ASSY, and secure it with the one screw (silver, 6mm).

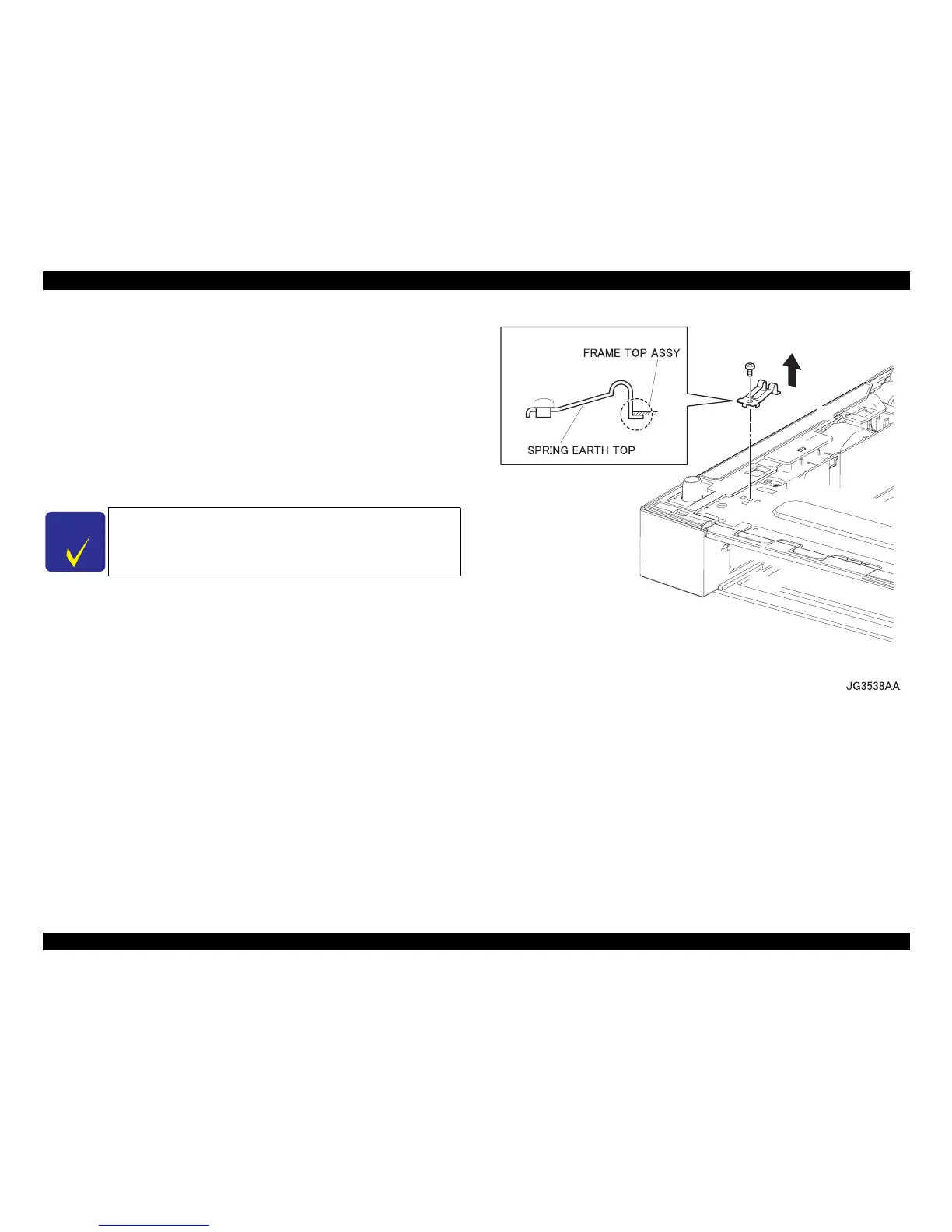

Figure 4- 142. SPRING EARTH TOP Removal
C H E C K
P O I N T
 The front end of the SPRING EARTH TOP must not ride on
the FRAME TOP ASSY.
 After installation, push down the head of the SPRING EARTH
TOP and make sure that it goes down.
