EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option 550 Paper Feeder 314
Confidential
4.11.11 CLUTCH ONEWAY NUDGER
Removal
1. Remove the ROLL ASSY NUDGER, ROLL ASSY FEED. (p.313)
2. Pull the CLUTCH ONEWAY FEED out of the SHAFT FEED.
3. Remove the E ring securing the CLUTCH ONEWAY NUDGER to the SHAFT
FEED.
4. Pull the CLUTCH ONEWAY NUDGER out of the SHAFT FEED.
Installation
1. Install the CLUTCH ONEWAY NUDGER to the SHAFT FEED.
2. Fit the E ring to the SHAFT FEED to secure the CLUTCH ONEWAY NUDGER.
3. Install the CLUTCH ONEWAY FEED to the SHAFT FEED.
4. Install the ROLL ASSY NUDGER, ROLL ASSY FEED. (p.313)

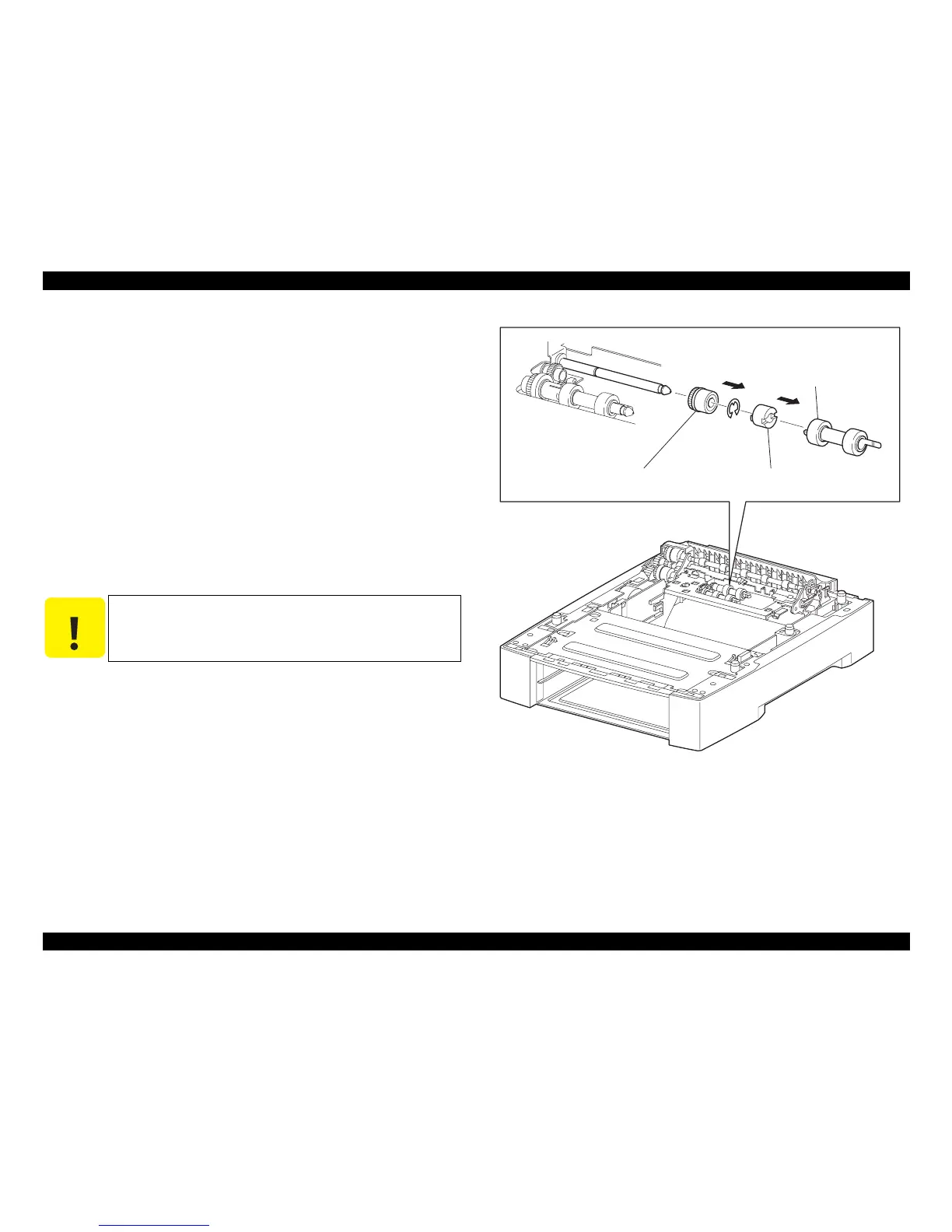

Figure 4- 118. CLUTCH ONEWAY NUDGER Removal
C A U T I O N
Engage the hooks of the ROLL ASSY FEED with the grooves in the
SHAFT FEED properly.
ROLL ASSY FEED
CLUTCH ONEWAY FEEDCLUTCH ONEWAY NUDGER
JG3512AA
4)
2)
1)
