EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly 550 Paper Feeder 226
Confidential
4.6.2 ROLL ASSY NUDGER, ROLL ASSY FEED
Removal
1. Open the COVER OPEN so that you can check your replacement work with your
eyes.
2. Remove the Paper Cassettes of the Tray 1 and Tray 2.
3. Lift the 150 FEEDER ASSY.
4. Hold down the 150 FEEDER ASSY, put your hand into the place where the Paper
Cassettes were mounted, release the hook of the ROLL ASSY NUDGER, and pull
the ROLL ASSY NUDGER out of the SHAFT NUDGER.
5. Similarly, release the hook of the ROLL ASSY FEED, and pull the ROLL ASSY
FEED out of the SHAFT FEED.
Installation
1. Hold down the 150 FEEDER ASSY, put your hand into the place where the Paper
Cassettes were mounted, install the ROLL ASSY FEED to the SHAFT FEED, and
secure it with the hook.
2. Similarly, install the ROLL ASSY NUDGER to the SHAFT NUDGER, and
secure it with the hook.
3. Push down the 150 FEEDER ASSY and return it to the original position.
4. Install the Paper Cassettes to the Tray 1 and Tray 2.
5. Close the COVER OPEN.

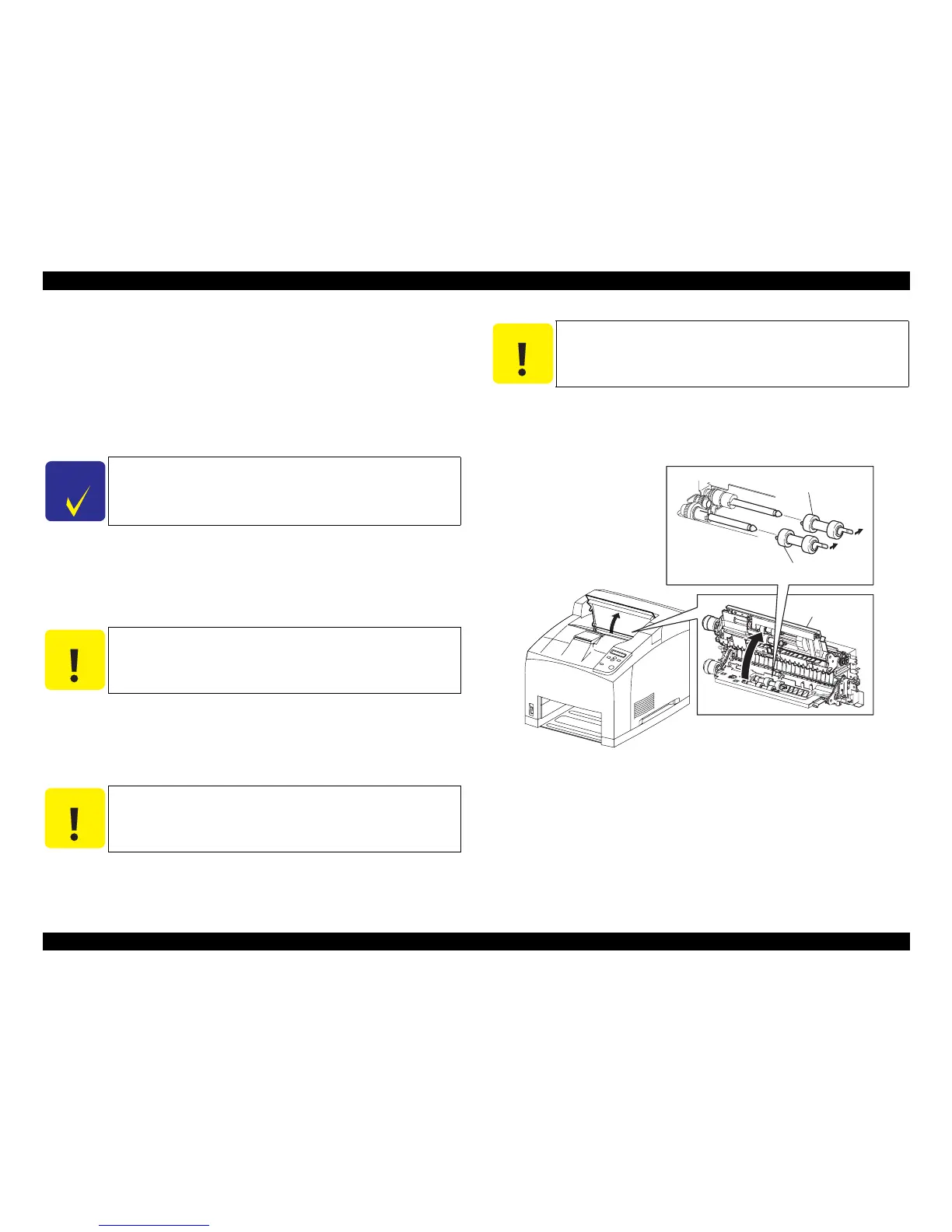

Figure 4- 50. ROLL ASSY NUDGER, ROLL ASSY FEED Removal
C H E C K
P O I N T
The 150 FEEDER ASSY clicks midway when lifted, but lift it by
application of slight force.
C A U T I O N
In removal, take care not to hold any rubber portion of the ROLL
ASSY NUDGER or ROLL ASSY FEED.
C A U T I O N
 Engage the hooks of the ROLL ASSY FEED with the grooves
in the SHAFT FEED properly.
 When installing the ROLL ASSY NUDGER or ROLL ASSY
FEED, take care not to hold its rubber portion.
C A U T I O N
Engage the hooks of the ROLL ASSY NUDGER with the grooves in
the SHAFT NUDGER properly.
JG3011E
A
ROLL ASSY FEED
ROLL ASSY NUDGER
150 FEEDER ASSY
5)
4)
1)
