EPSON EPL-N3000/AcuLaser M4000N Revision C
Operating Principles Paper Transport 44
Confidential
2.4.2 Paper Feeding Route Layout

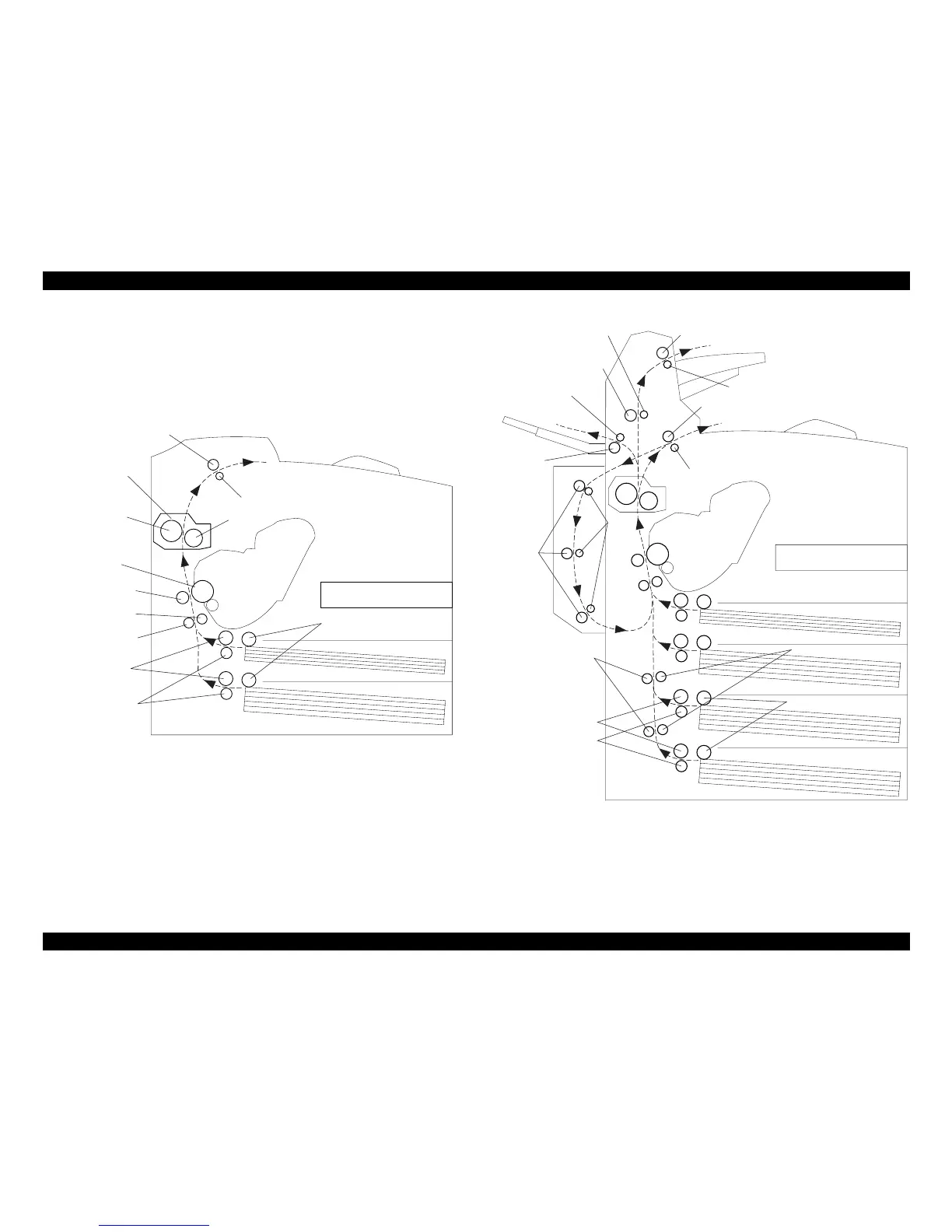

Figure. 2-20 and Figure. 2-21 show the sectional view of this printer. They show the
major components related directly to the path of the paper and conveyance of the
paper.
Figure 2-20. Major Components Related to Paper Transport (Engine only)
Figure 2-21. Major Components Related to Paper Transport
(with OPTION DUPLEX, OPTION 550 FEEDER, OPTION OCT,
500 PAPER EXIT & FACE UP TRAY installed)
Pressure Roll
Heat Roll
FUSER ASSY
Drum
BTR ASSY
JG6114AA
ROLL ASSY FEED
ROLL ASSY RETARD
ROLL ASSY NUDGER
ROLL REGI METAL
ROLL REGI RUBBER
ROLL EXIT
ROLL PINCH EXIT
ROLL ASSY FEED
ROLL ASSY RETARD
ROLL ASSY NUDGER
ROLL ASSY TURN
ROLL PINCH TURN
ROLL DUP
ROLL
PINCH
ROLL PINCH EXIT
JG6115AA
ROLL EXIT
ROLL OCT UPPER
ROLL OCT LOWER
ROLL PINCH
ROLL PINCH OCT
ROLL FU
ROLL PINCH FU
