EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly 150 Paper Cassette 185
Confidential
4.3.5 PLATE ASSY BTM
Removal
1. Remove the COVER CST from the cassette body.
2. Unlock the LOCK EXTENSION, and draw out the cassette extension.
3. Release the hook fastening the GEAR PINION, and remove the GEAR PINION
from the HOUSING TOP150.
4. While pushing the lock of the STOPPER GEAR, unlock the LEVER BTM LOCK,
and raise the PLATE ASSY BTM.
5. Move the GUIDE ASSY SD L150 to the inside, push down the hook of the
HOUSING TOP 150, and remove it from the HOUSING TOP 150.
6. Move the GUIDE ASSY SD R150 to the inside, push down the hook of the
HOUSING TOP 150, and remove it from the HOUSING TOP 150.

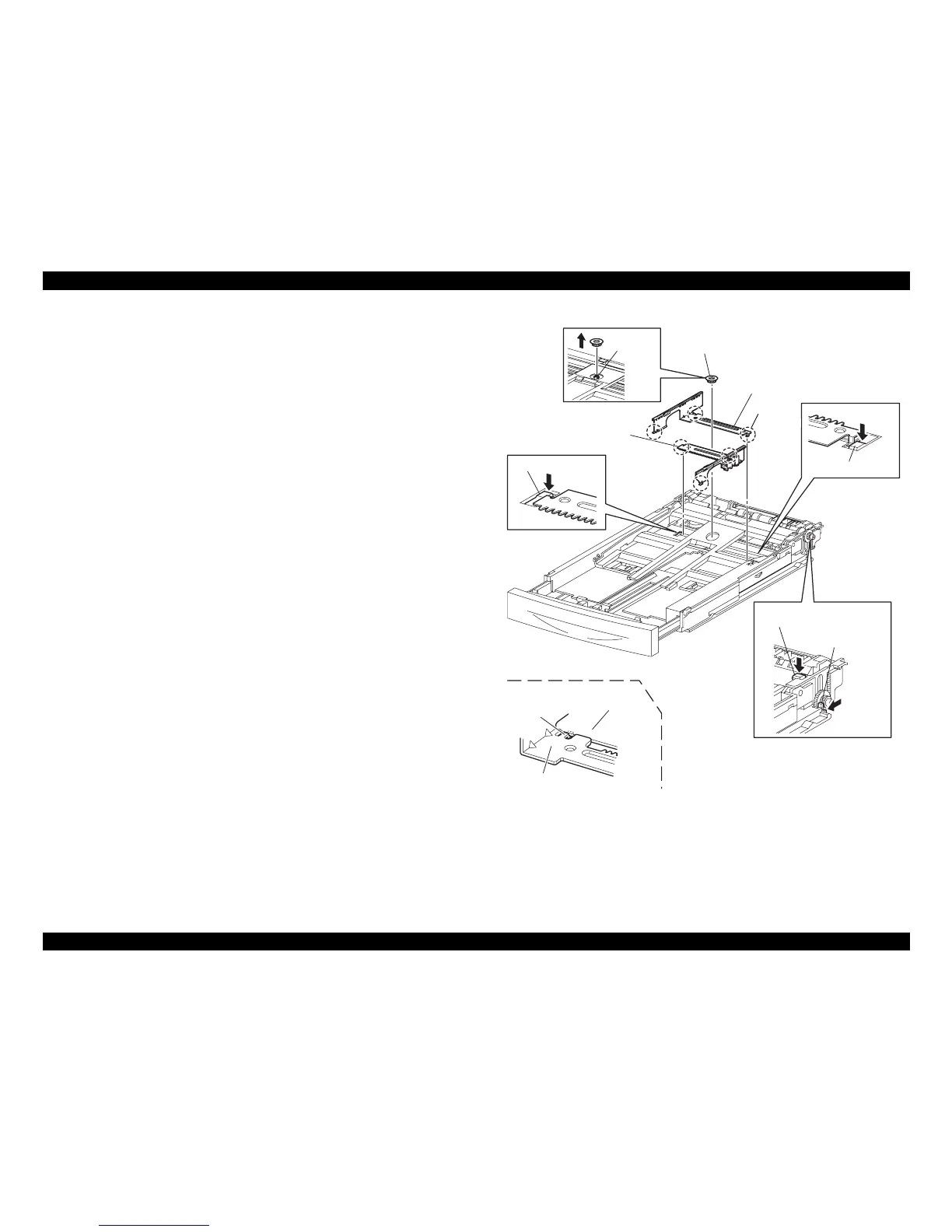

Figure 4- 18. PLATE ASSY BTM Removal
HOOKS
GUIDE ASSY SD L150
GUIDE ASSY SD R150
GEAR PINION
HOOK
HOOK
JG3012AA
GUIDE ASSY SD L150
WHEN ASSEMBLING
CLAW
HOUSING TOP150
LEVER BTM LOCK
STOPPER GEAR
CLAWS
3)
5)
6)
(NOTE 3)
4)
