EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly 150 Paper Cassette 186
Confidential
7. Release the hook of the GEAR PB R, and remove the GEAR PB R from the
SHAFT PB.
8. Bend the HOUSING BASE 150 in the direction of the arrow, move the GEAR PB
L away, and remove the PLATE ASSY BTM, SHAFT PB, GEAR PB L, GEAR
BTM DMP ONEWAY and GEAR BTM LOCK ONEWAY together from the
HOUSING TOP 150.
9. Pull the SHAFT PB out of the PLATE ASSY BTM, and remove the GEAR PB L,
GEAR BTM DMP ONEWAY and GEAR BTM LOCK ONEWAY.

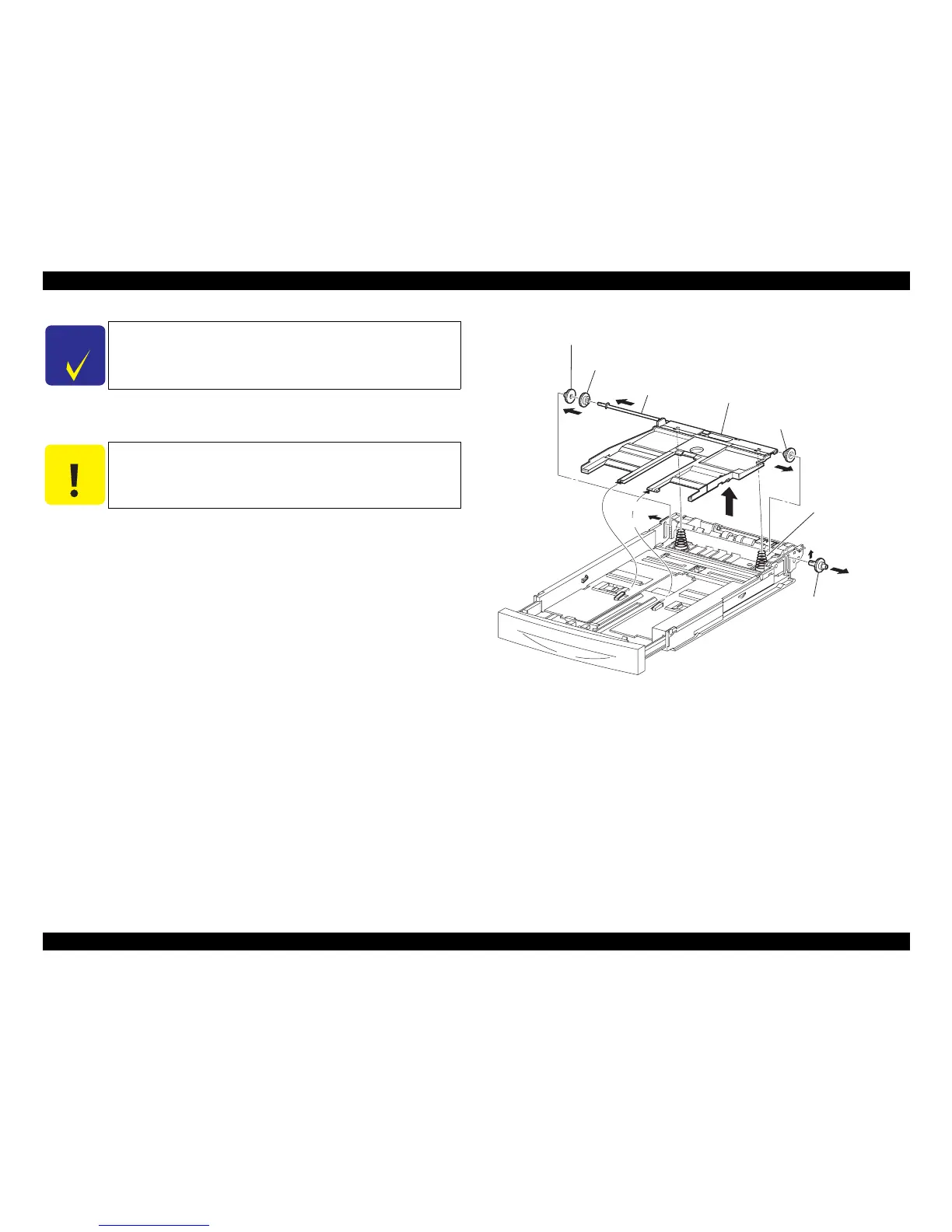

Figure 4- 19. PLATE ASSY BTM Removal
C H E C K
P O I N T
At the following steps, the GEAR PB L, GEAR BTM DMP
ONEWAY and GEAR BTM LOCK ONEWAY are released from
their installed positions. Take care not to lose any of the gears.
C A U T I O N
The GEAR PB R is difficult to remove. Remove it using care not to
damage it.
GEAR PB R
SPRING
BTM UP150
GEAR BTM LOCK ONEWAY
GEAR BTM DMP ONEWAY
SHAFT PB
GEAR PB L
PLATE ASSY BTM
JG3013AB
9)
9)
(NOTE 1)
7-2)
7-1)
8-2)
8-1)
(NOTE 2)
