EPSON EPL-N3000/AcuLaser M4000N Revision C
Operating Principles Driving Force Trasmission Route 41
Confidential

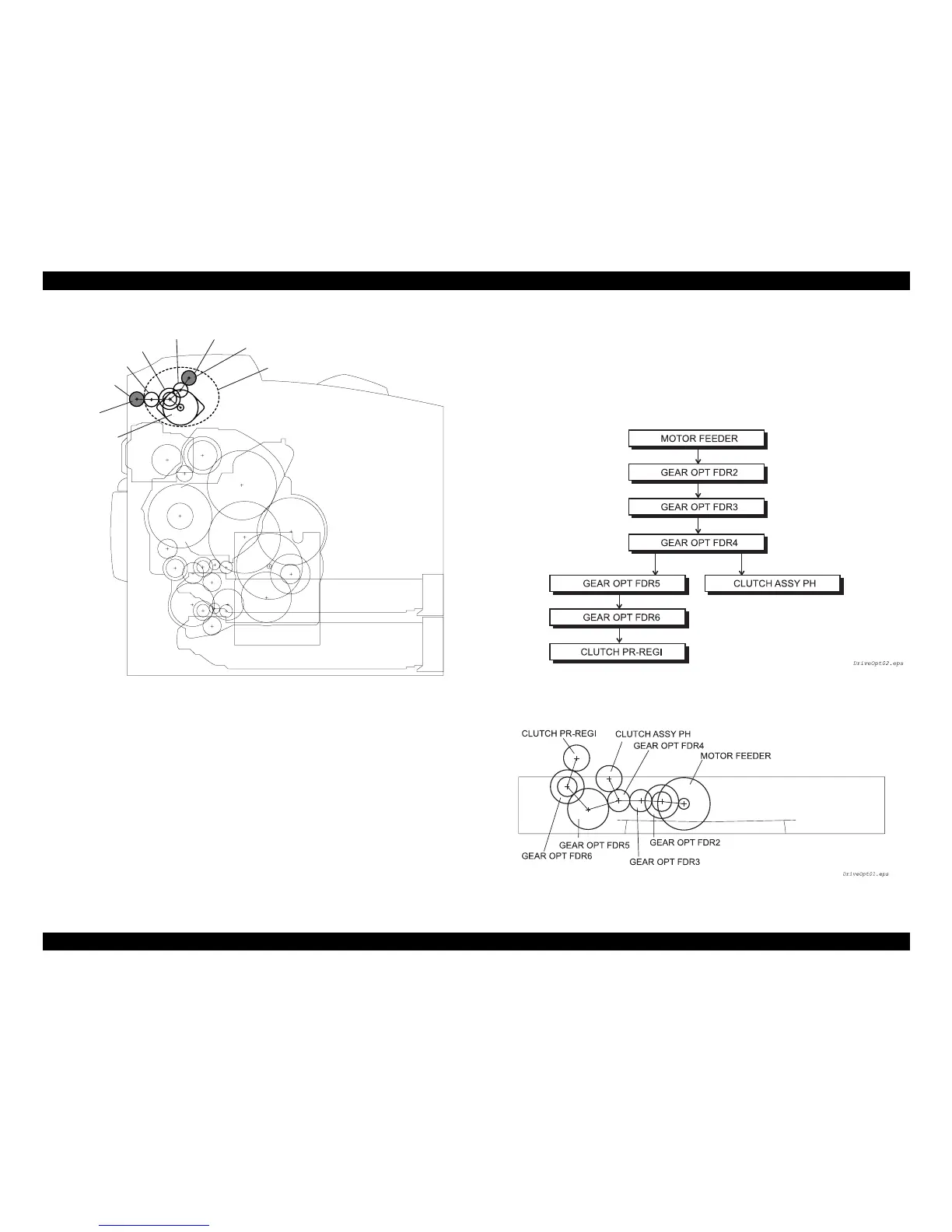

Figure 2-12. Driving Force Transmission Route for
500 Paper Exit & Face Up Tray
2.3.2 OPTION FEEDER
2.3.2.1 Motor Feeder
The driving force for the OPTION FEEDER is generated by the MOTOR FEEDER.
The force is transmitted to the OPTION FEEDER components that require mechanical
driving force, as shown in
Figure. 2-14 and Figure. 2-13 below.
Figure 2-13. Driving Force of Motor Feeder
2.3.2.2 Gear Layout
Figure 2-14. Driving Force Transmission Route for OPTION FEEDER
GEAR 16/49
GEAR 25-2
MOTOR ASSY EXIT
GEAR21
JG6112A
A
500 Paper Exit
GEAR 25-1
GEAR21
ROLL EXIT
ROLL FU
