EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option OCT 362
Confidential
4.13.2 COVER REAR
Removal
1. Move the COVER REAR in the direction of the arrow, disengage the left and right
bosses of the COVER REAR from the COVER OCT, and remove the COVER
REAR.
Installation
1. Move the COVER REAR in the direction opposite to the arrow, insert the left and
right bosses into the COVER OCT, and install the COVER REAR.

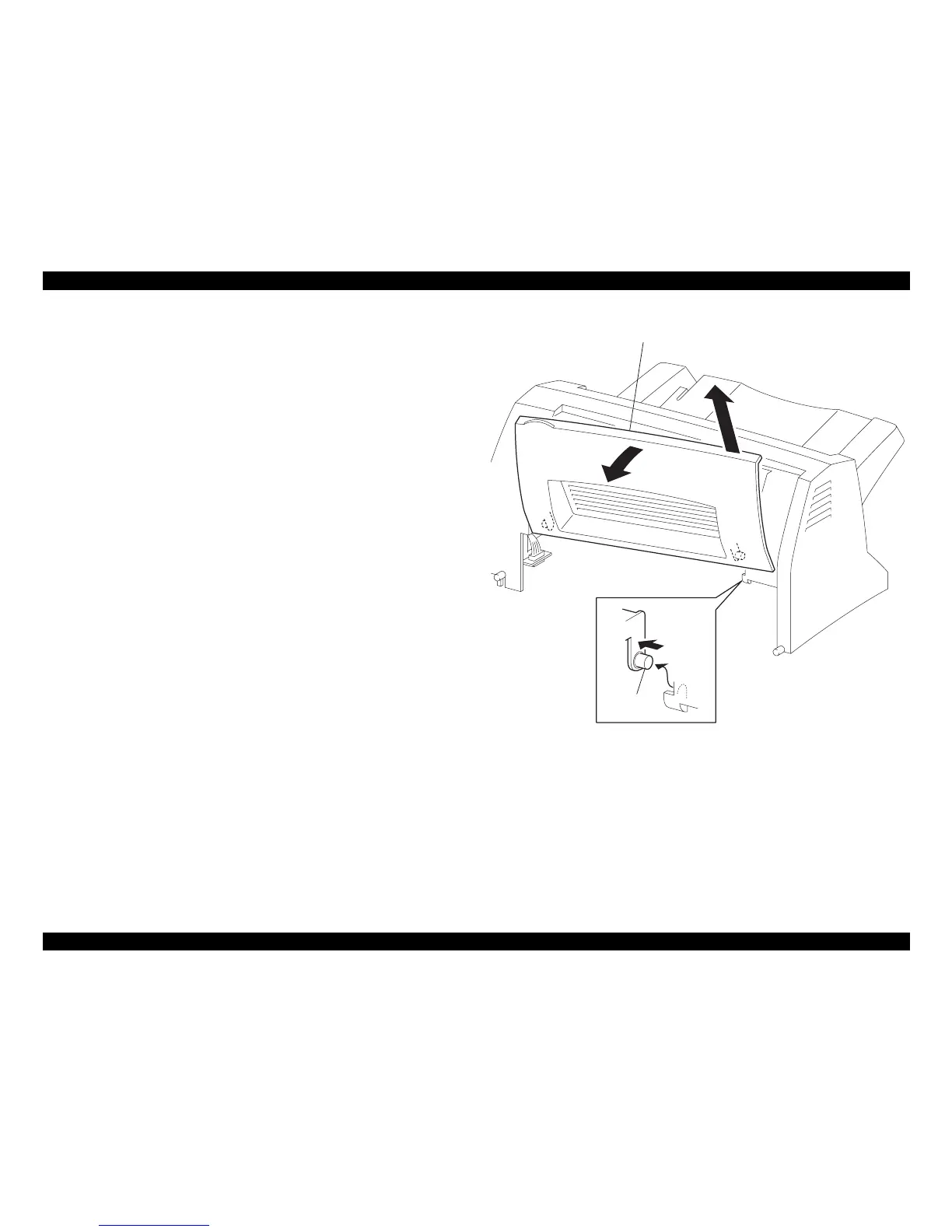

Figure 4- 158. COVER REAR Removal
COVER REAR
JG3802AA
BOSS
1-3)
1-1)
1-2)
