Epson EPL-N3000 - Roll Exit

EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly 500 Paper Exit 265
Confidential
4.8.4 ROLL EXIT
Removal
1. Remove the COVER REAR 500. (p.270)
2. Remove the COVER REAR. (p.167)
3. Remove the COVER LEFT. (p.169)
4. Remove the COVER RIGHT. (p.168)
5. Remove the COVER EXIT 500. (p.261)
6. Remove the CHUTE UP EXIT, CHUTE LOW EXIT. (p.263)
7. Release the hook of the GEAR 21, and remove the GEAR 21 from the ROLL
EXIT.
8. Release the hook of the GEAR 21 side BEARING EXIT, lift the ROLL EXIT, and
remove the BEARING EXIT from the ROLL EXIT.
9. Pull and remove the ROLL EXIT out of the opposite side BEARING EXIT in the
direction of the arrow.
Installation
1. Move the ROLL EXIT in the direction opposite to the arrow, and install it to the
BEARING EXIT.
2. Fit the BEARING EXIT to the GEAR 21 side ROLL EXIT, install the BEARING
EXIT to the CHUTE UP EXIT, and lock the hook.
3. Install the GEAR 21 to the ROLL EXIT.
4. Install the CHUTE UP EXIT, CHUTE LOW EXIT. (p.263)
5. Install the COVER EXIT 500. (p.261)
6. Install the COVER RIGHT. (p.168)
7. Install the COVER LEFT. (p.169)
8. Install the COVER REAR. (p.167)
9. Install the COVER REAR 500. (p.270)

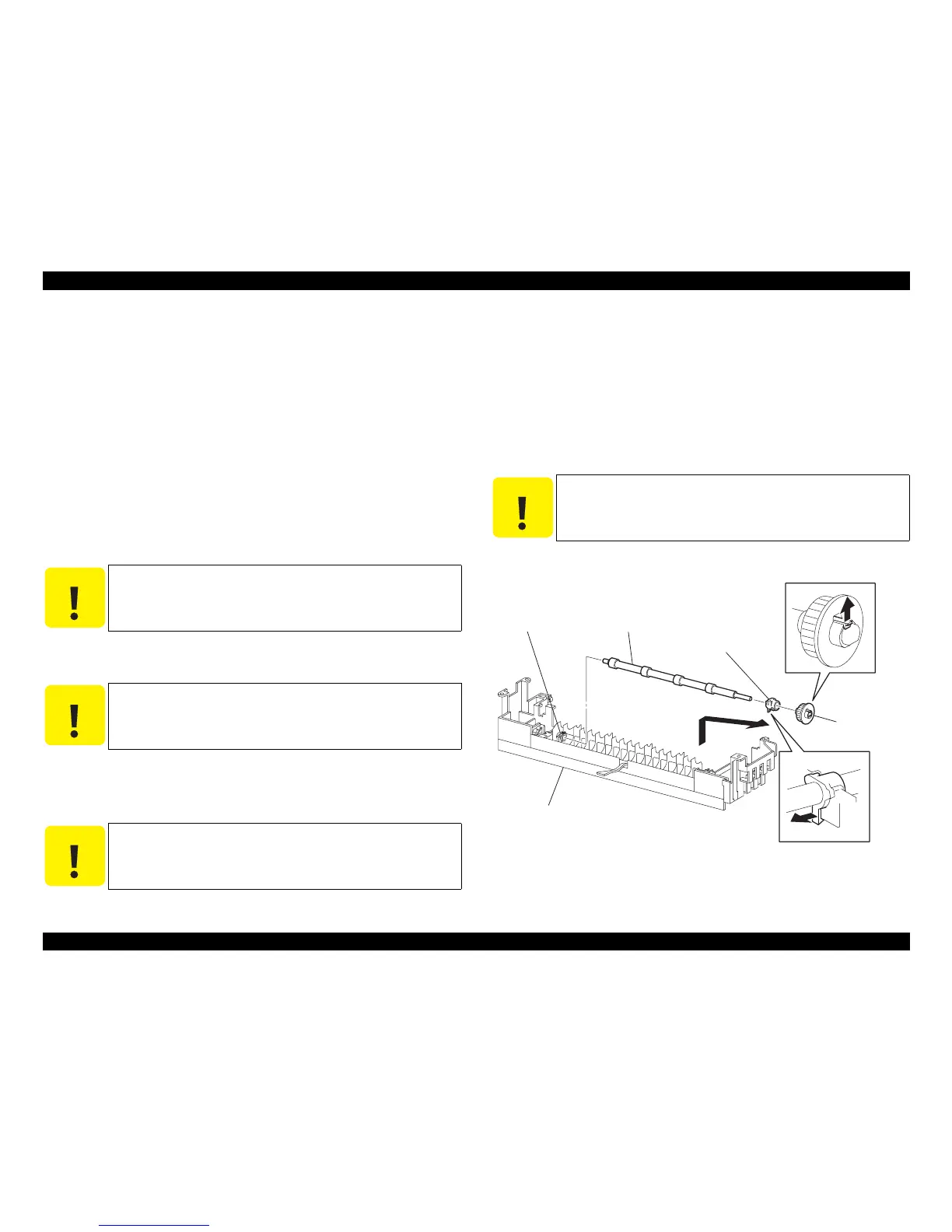

Figure 4- 76. ROLL EXIT Removal
C A U T I O N
Carefully handle the hook of the BEARING EXIT as it may be
damaged by application of large force.
C A U T I O N
In removal, take care not to hold any rubber portion of the ROLL
EXIT.
C A U T I O N
When installing the ROLL EXIT, take care not to hold any rubber
portion.
C A U T I O N
Pay attention to the difference between the two types of screws and
use them at their correct positions respectively.
JG3080AA
BEARING EXIT ROLL EXIT
BEARING EXIT
GEAR 21
CHUTE UP EXIT
9)
7)
8)
