EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option OCT 363
Confidential
4.13.3 TRAY ASSY OCT
Removal
1. Remove the COVER REAR. (p.362)
2. Remove the COVER OCT. (p.364)
3. Remove the two screws (gold, tapping, 8mm) at each of the left and right from the
TRAY ASSY OCT mounted on the removed COVER OCT, and remove the
TRAY ASSY OCT from the COVER OCT.
Installation
1. Install the TRAY ASSY OCT to the COVER OCT with the two screws (gold,
tapping, 8mm) at each of the left and right.
2. Install the COVER OCT. (p.364)
3. Install the COVER REAR. (p.362)

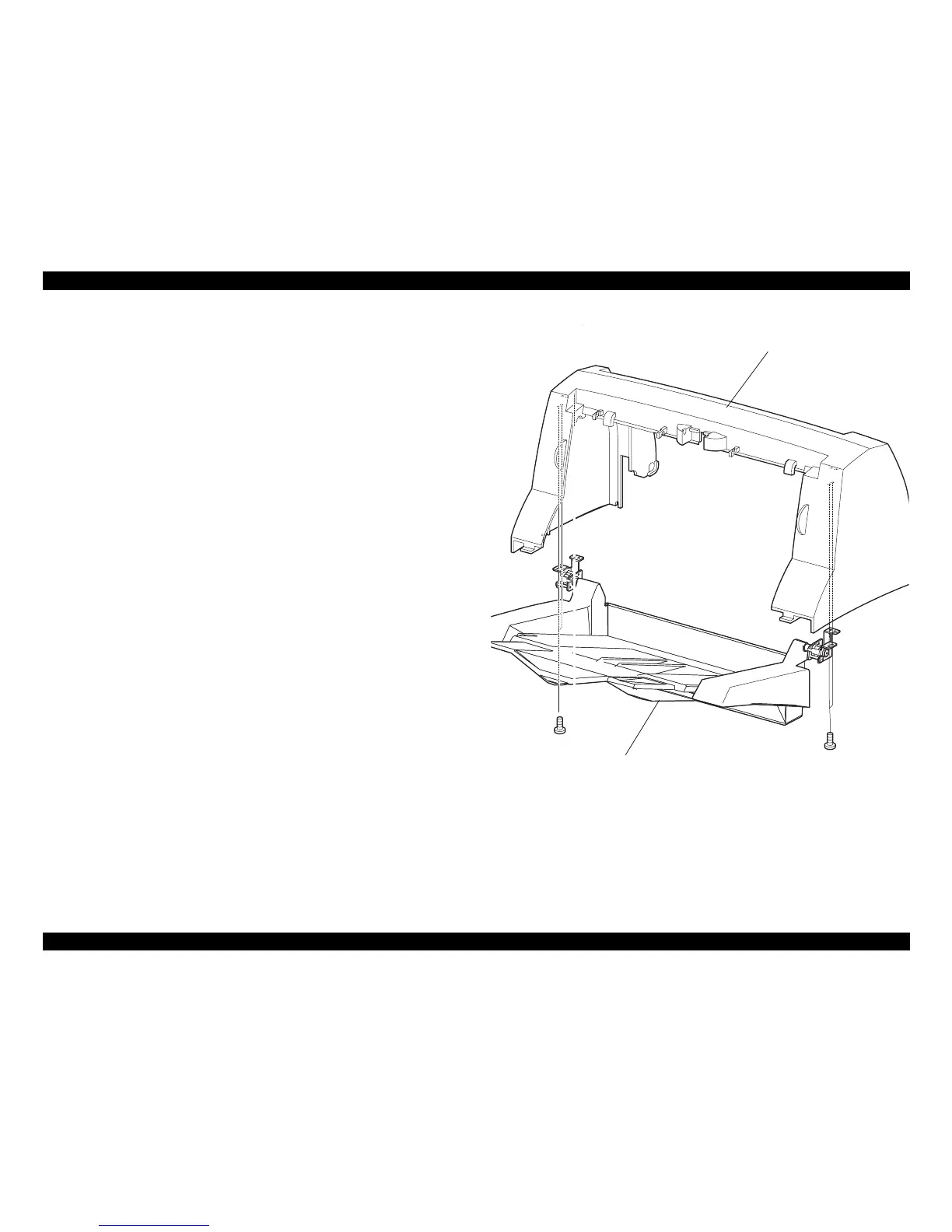

Figure 4- 159. TRAY ASSY OCT Removal
JG3819AA
COVER OCT
TRAY ASSY OCT
3)
3)
