Epson EPL-N3000 - Sensor no Paper

EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option 550 Paper Feeder 320
Confidential
4.11.16 SENSOR NO PAPER
Removal
1. Remove the one screw mounting the HOLDER NO PAPER SENSOR.
2. Remove the HOLDER NO PAPER SENSOR from the Option 550 Paper Feeder.
3. Release the two hooks of the SENSOR NO PAPER, and remove the SENSOR NO
PAPER from the HOLDER NO PAPER SENSOR.
4. Disconnect the connector of the HARNESS ASSY CLSNR 1 from the connector
(P/J852) of the SENSOR NO PAPER.
Installation
1. Connect the connector (P/J852) of the HARNESS ASSY CLSNR 1 to the
connector of the SENSOR NO PAPER.
2. Install the SENSOR NO PAPER to the HOLDER NO PAPER SENSOR.
3. Install the HOLDER NO PAPER SENSOR to the Option 550 Paper Feeder with
the one screw.

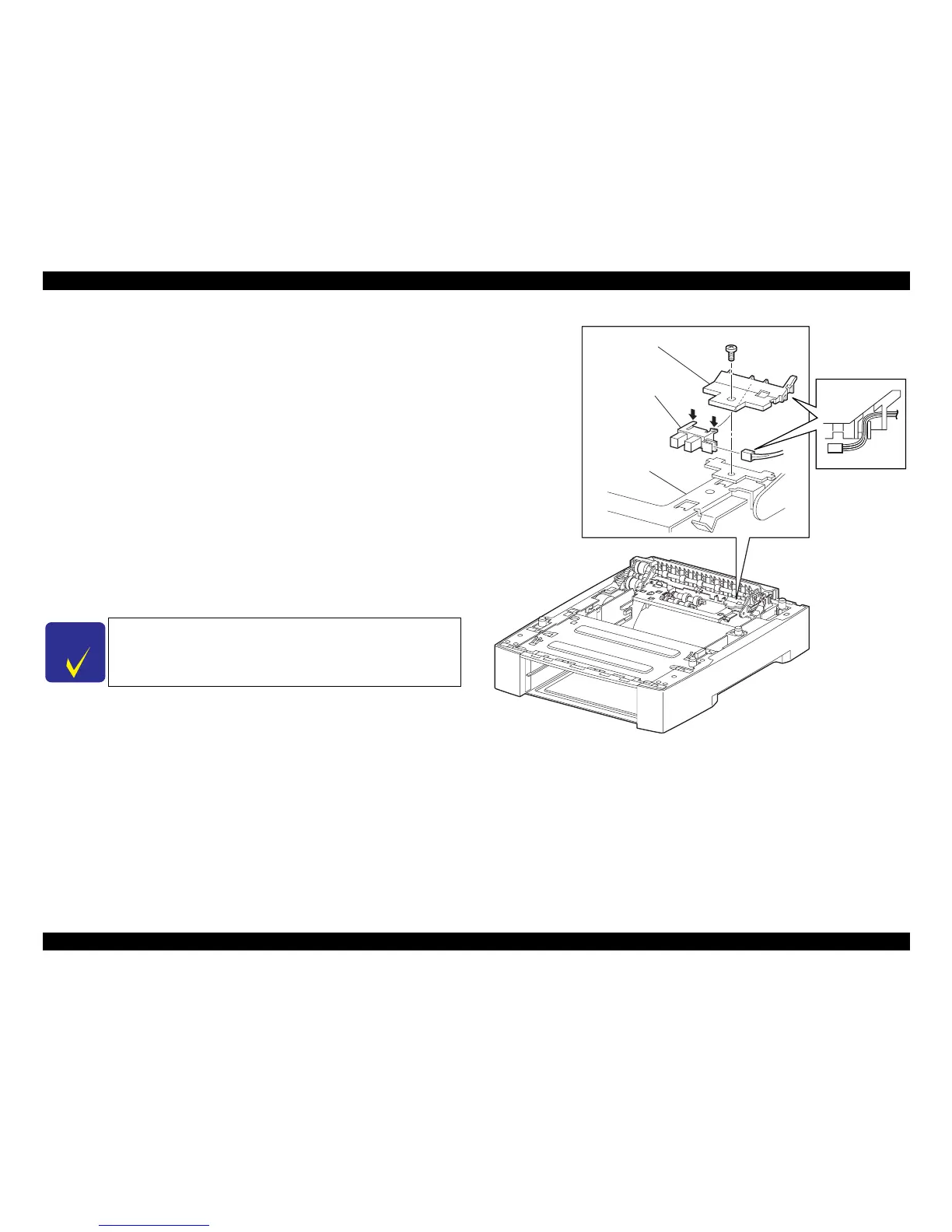

Figure 4- 124. SENSOR NO PAPER Removal
C H E C K
P O I N T
After installation, check that the wires of the HARNESS ASSY
CLSNR 1 are not pinched.
JG3517AA
SENSOR NO PAPER
Option 550 Paper Feeder
HOLDER NO PAPER SENSOR
1)
3)
4)
