4.3 150 Paper Cassette
4.3.1 ROLL ASSY RETARD
Removal
1. Pull the 150 PAPER CASSETTE out of the printer body.
2. Using a screwdriver or the like, release the hooks securing the HOLDER
RETARD to the 150 PAPER CASSETTE.
3. Lift and remove the HOLDER RETARD in the direction of the arrow.
4. Release the hooks of the ROLL ASSY RETARD and remove it from the SHAFT
RETARD.

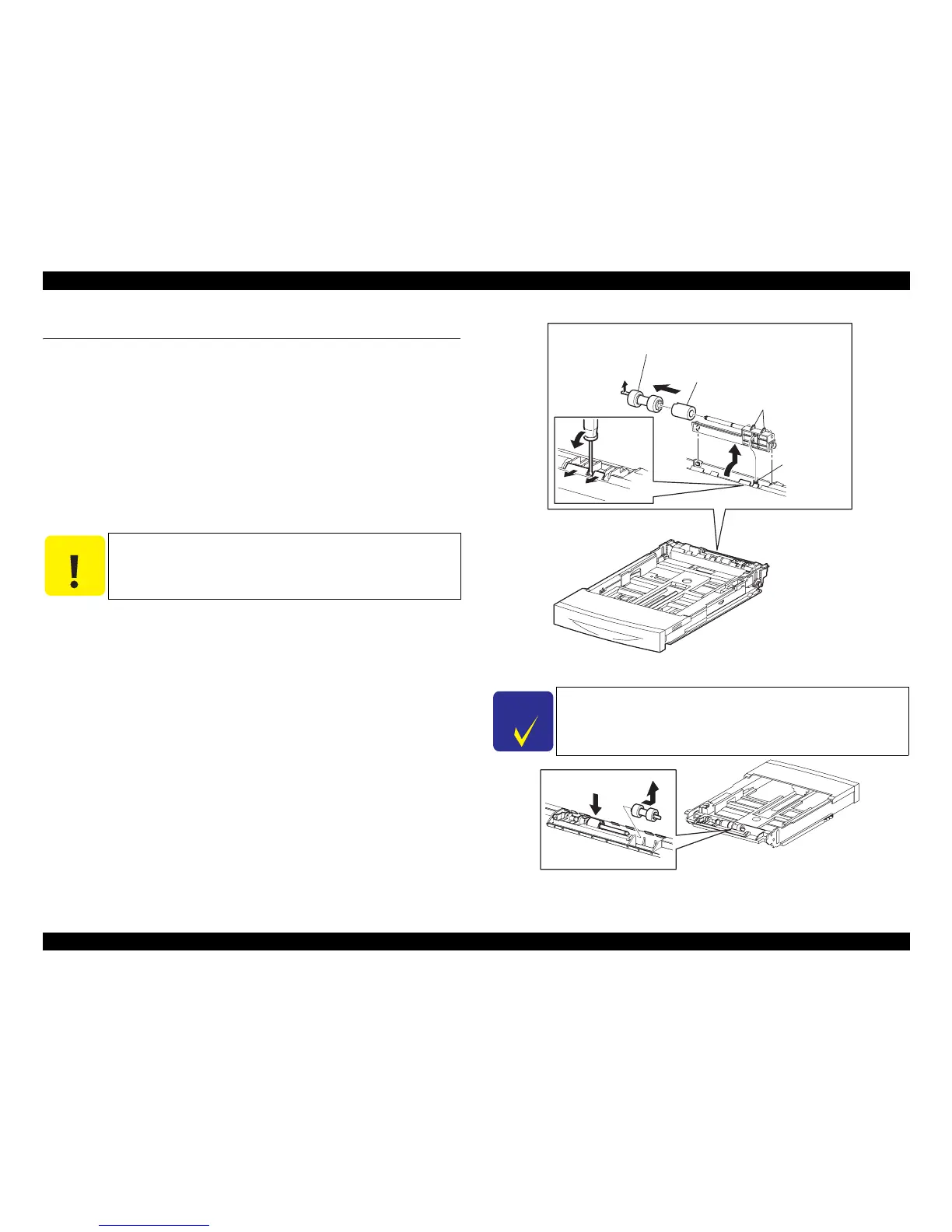

Figure 4- 10. ROLL ASSY RETARD Removal
Figure 4- 11. ROLL ASSY RETARD Removal
C A U T I O N
 In removal, take care not to hold any rubber portion of the
ROLL ASSY RETARD.
 When removing the HOLDER RETARD, be careful not to
mislay the SPRING RETARD.
C H E C K
P O I N T
Besides the above procedure, the ROLL ASSY RETARD can also
be removed by pushing down the HOLDER RETARD.
JG3007AA
SPRING RETARD
FRICTION CLUTCH
ROLL ASSY RETARD
HOOKS
4-1)
3)
2)
4-2)
JG3207AA
