EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Overview 166
Confidential
Note "*": Upper row: EPL-N3000, Lower row: AcuLaser M4000N

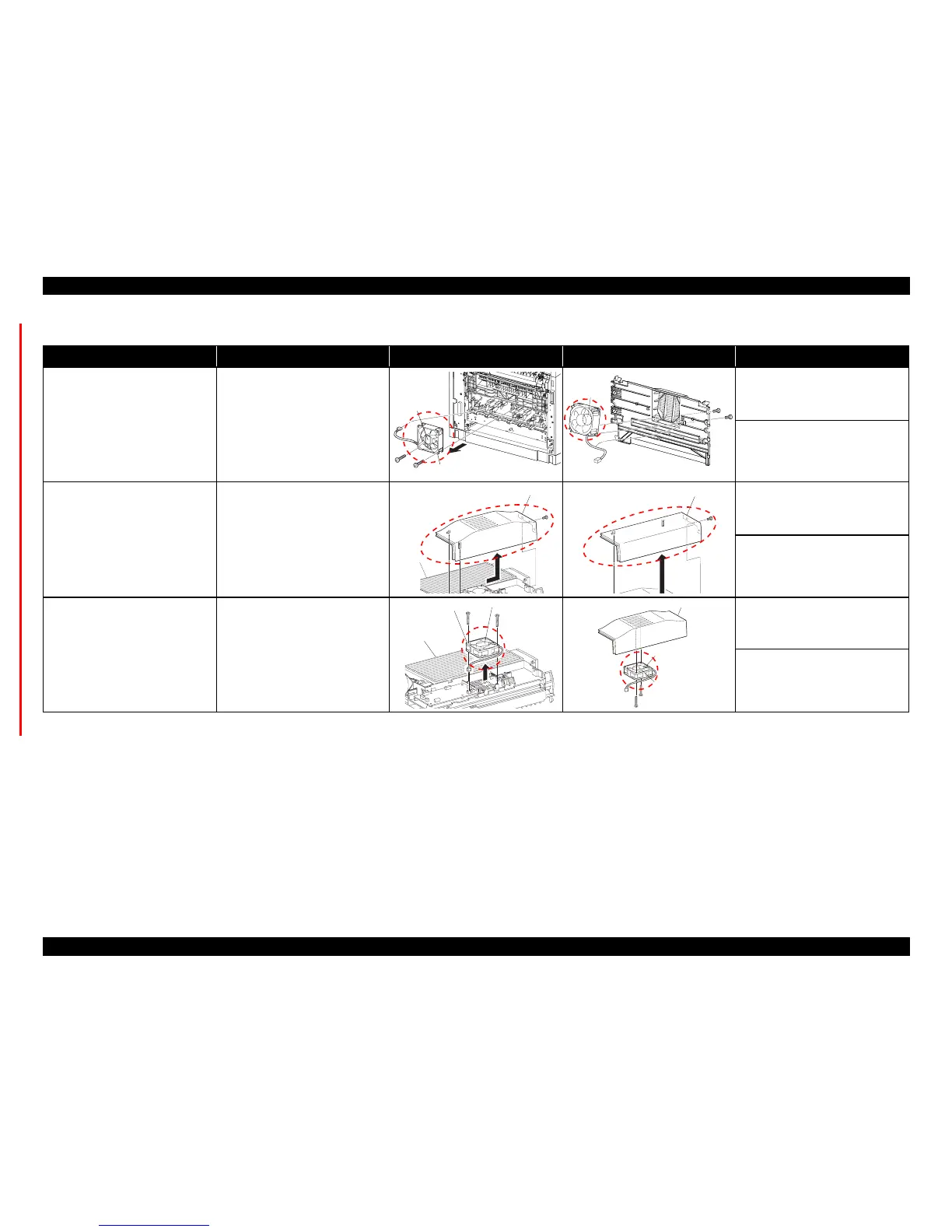

Table 4-3. List of Difference in Disassembly/Assembly
Item Explanation EPL-N3000 AcuLaser M4000N Reference*
FAN MAIN
 EPL-N3000
FAN MAIN is secured to main unit.
 AcuLaser M4000N
FAN MAIN is secured to COVER
REAR.
4.10.6 FAN MAIN (p.293)
4.14.8 FAN MAIN (AcuLaser
M4000N) (p.392)
COVER TOP (Duplex) The shape of the COVER TOP is
changed. In addition to that, the
COVER REAR DUP is added for
AcuLaser M4000N.
4.12.4 COVER TOP (p.346)
 4.14.9 COVER TOP (AcuLaser
M4000N) (p.393)
 4.14.10 COVER REAR DUP
(AcuLaser M4000N) (p.394)
FAN DUPLEX
 EPL-N3000
FAN DUPLEX is secured to the
COVER HSG DUP.
 AcuLaser M4000N
FAN DUPLEX is secured to COVER
REAR DUP.
4.12.6 FAN DUPLEX (p.349)
4.14.11 FAN DUPLEX
(AcuLaser M4000N) (p.395)
JG3022EA
LABEL
FAN MAIN
J23165A
A
LABEL
COVER TOP
COVER HSG DUP
COVER TOP
FAN DUPLEX
COVER HSG DUP
LABEL
FAN DUPLEX
LABEL
COVER REAR DUP
