EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option 550 Paper Feeder 316
Confidential
Installation
1. Install the ROLL ASSY GEAR NUDGER to the SHAFT NUDGER, and secure it
with the hook.
2. Install the ROLL ASSY NUDGER to the SHAFT NUDGER, and secure it with
the hook.
3. Install the HOLDER LEFT and ACTUATOR NO PAPER to the SUPPORT
NUDGER.
4. By inserting the three hooks, install the HOLDER LEFT to the 550 FEEDER
OPTION.

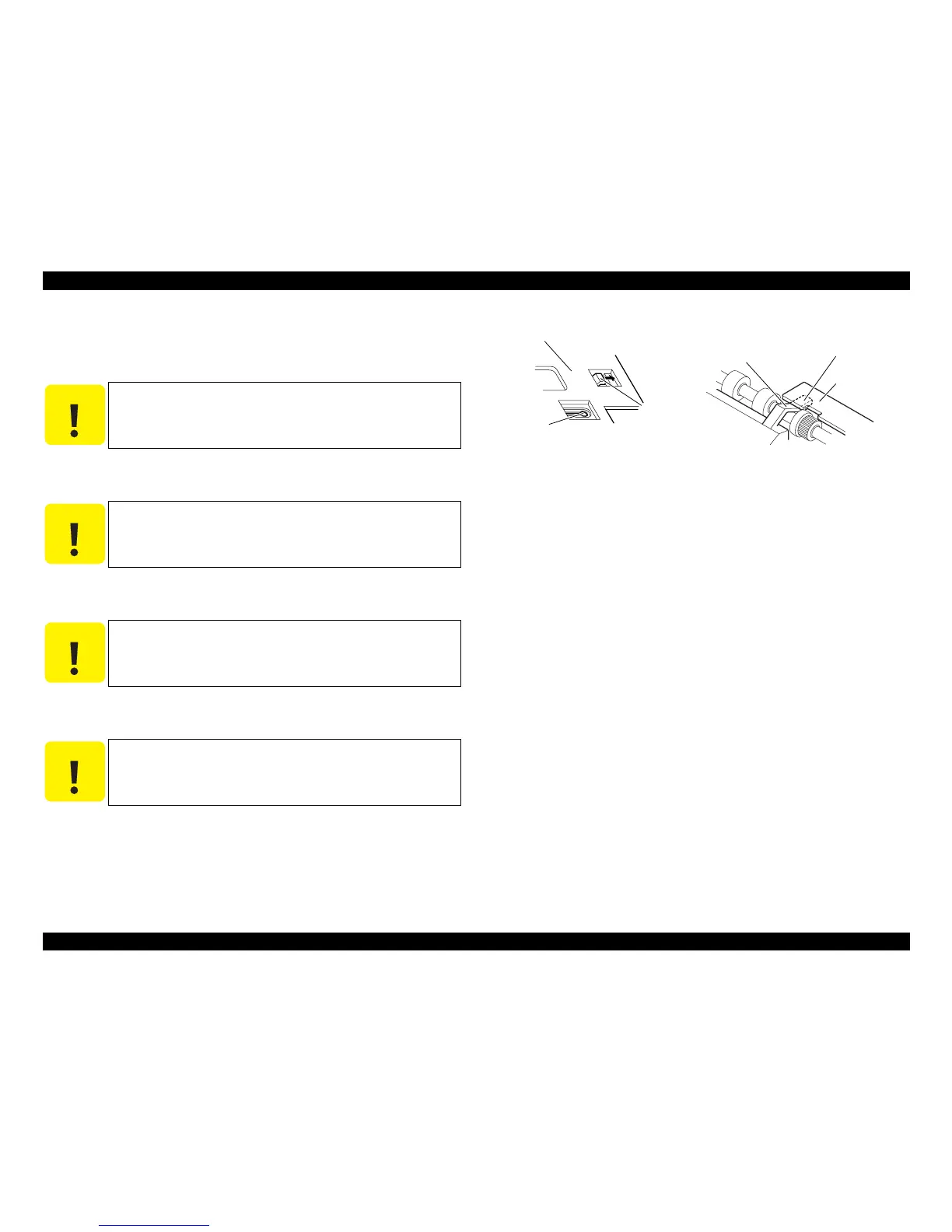

Figure 4- 120. ROLL ASSY GEAR NUDGER Installation
C A U T I O N
 Engage the hook of the ROLL ASSY GEAR NUDGER with the
groove in the SHAFT NUDGER properly.
 When installing the ROLL ASSY GEAR NUDGER, take care
not to hold its rubber portion.
C A U T I O N
 Engage the hook of the ROLL ASSY NUDGER with the groove
in the SHAFT NUDGER properly.
 When installing the ROLL ASSY NUDGER, take care not to
hold its rubber portion.
C A U T I O N
 Securely fit the shafts on both ends of the ACTUATOR NO
PAPER into the HOLDER LEFT and SUPPORT NUDGER.
 Hitch the hook of the ACTUATOR NO PAPER on the
HOLDER LEFT.
C A U T I O N
After installation, operate the ACTUATOR NO PAPER with your
finger and make sure that it moves properly.
JG3513A
A
CLAW
LIFT UP
(BOSS)
HOLDER
LEFT
DETAILED VIEW OF A
ACTUATOR NO PAPER HOOK
HOLDER
LEFT
1-1)
