7. Remove the two screws (gold, tapping, 8mm) in each of the left and right sides and
the six screws (gold, tapping, 8mm) in the rear side, which secure the HOUSING
TOP 550 to the HOUSING BASE 550.
8. Release the four hooks of the HOUSING TOP 550, and remove the HOUSING
TOP 550 and HOUSING EXTENSION 550 from the HOUSING BASE 550.
9. Remove the four screws (gold, tapping, 6mm) securing the COVER EXTENSION
to the HOUSING EXTENSION 550.
10. Remove the COVER EXTENSION from the HOUSING EXTENSION 550.
11. Turn the RACK SIZE in the direction of the arrow, and remove the RACK SIZE
from the HOUSING EXTENSION 550.

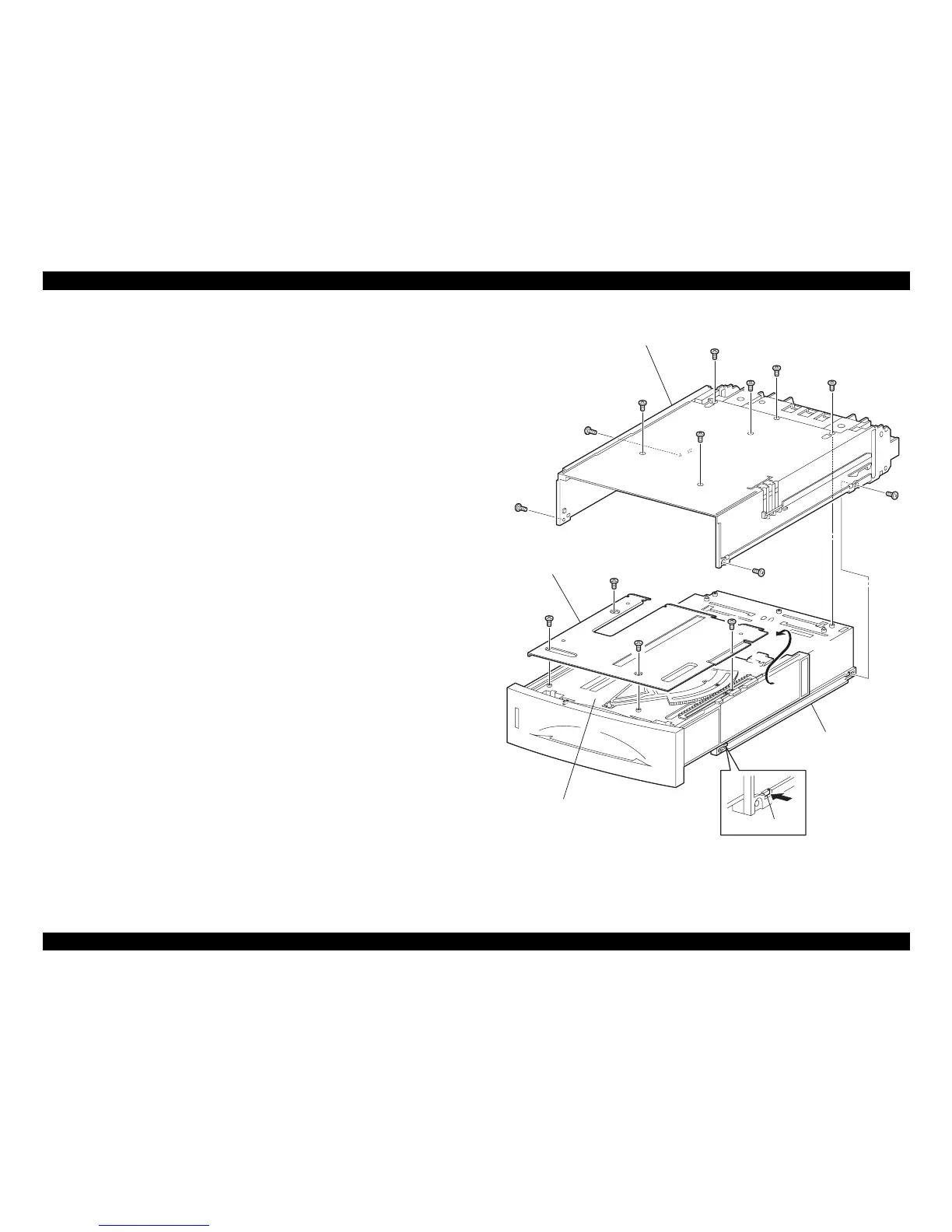

Figure 4- 26. RACK SIZE Removal
HOUSING TOP 550
HOUSING EXTENSION 550
HOUSING BASE 550
COVER EXTENSION
JG3020AA
HOOK
7)
7)
7)
9)
8)
(NOTE 2)
