EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option 550 Paper Feeder 331
Confidential
7. Release the hook of the GEAR PB R, and remove the GEAR PB R from the
SHAFT PB.
8. Bend the HOUSING BASE 550 in the direction of the arrow, move the GEAR PB
L away, and remove the PLATE ASSY BTM, SHAFT PB, GEAR PB L, GEAR
BTM DMP ONEWAY and GEAR BTM LOCK ONEWAY together from the
HOUSING TOP 550.
9. Pull the SHAFT PB out of the PLATE ASSY BTM, and remove the GEAR PB L,
GEAR BTM DMP ONEWAY and GEAR BTM LOCK ONEWAY.

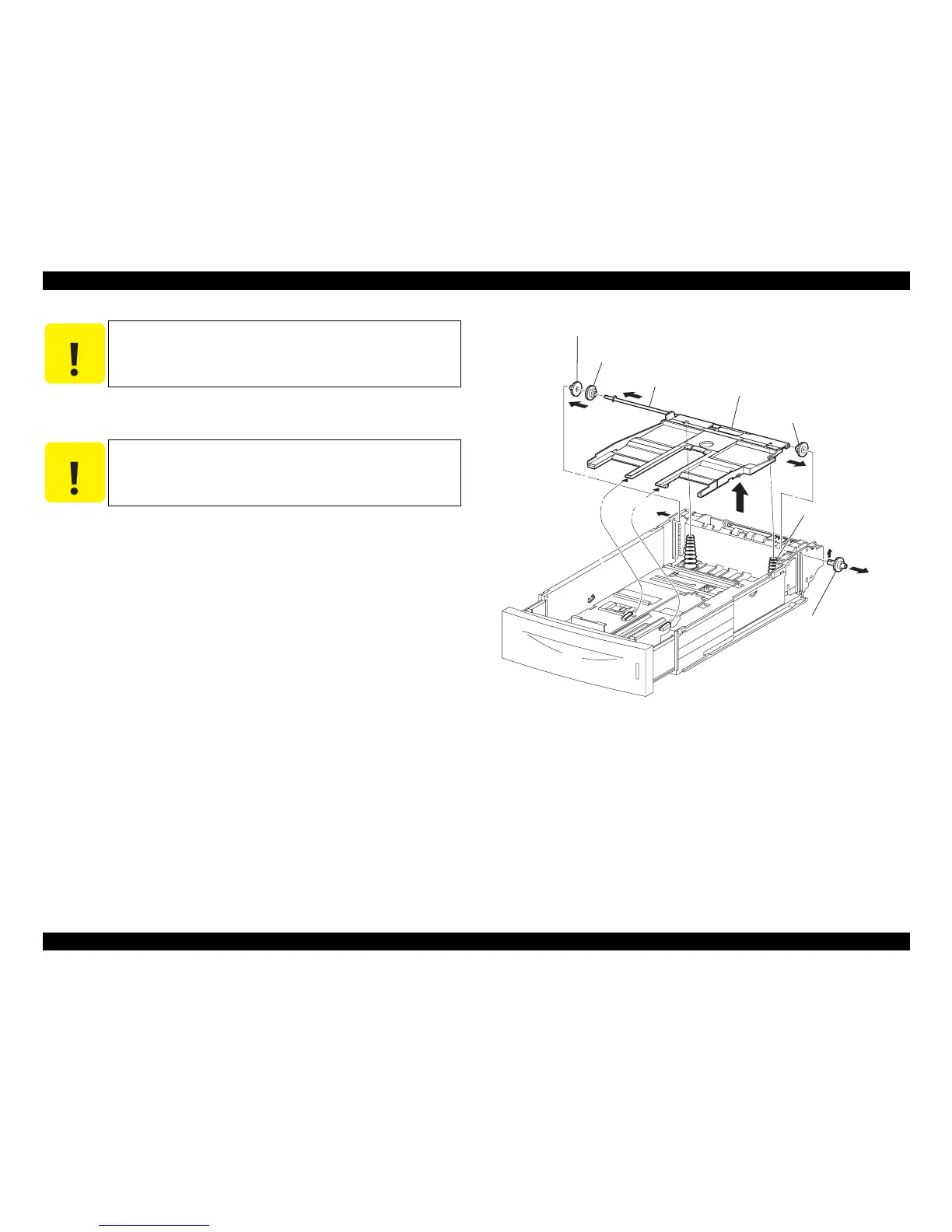

Figure 4- 133. PLATE ASSY BTM Removal
C A U T I O N
At the following steps, the GEAR PB L, GEAR BTM DMP
ONEWAY and GEAR BTM LOCK ONEWAY are released from
their installed positions. Take care not to lose any of the gears.
C A U T I O N
The GEAR PBR is difficult to remove. When removing it, be
careful not to damage it.
GEAR PB R
SPRING BTM UP 550
GEAR BTM LOCK ONEWAY
GEAR BTM DMP ONEWAY
SHAFT PB
GEAR PB L
PLATE ASSY BTM
JG3525AB
11)
11)
11)
10-2)
10-1)
9-1)
9-2)
(NOTE 1)
(NOTE 2)
