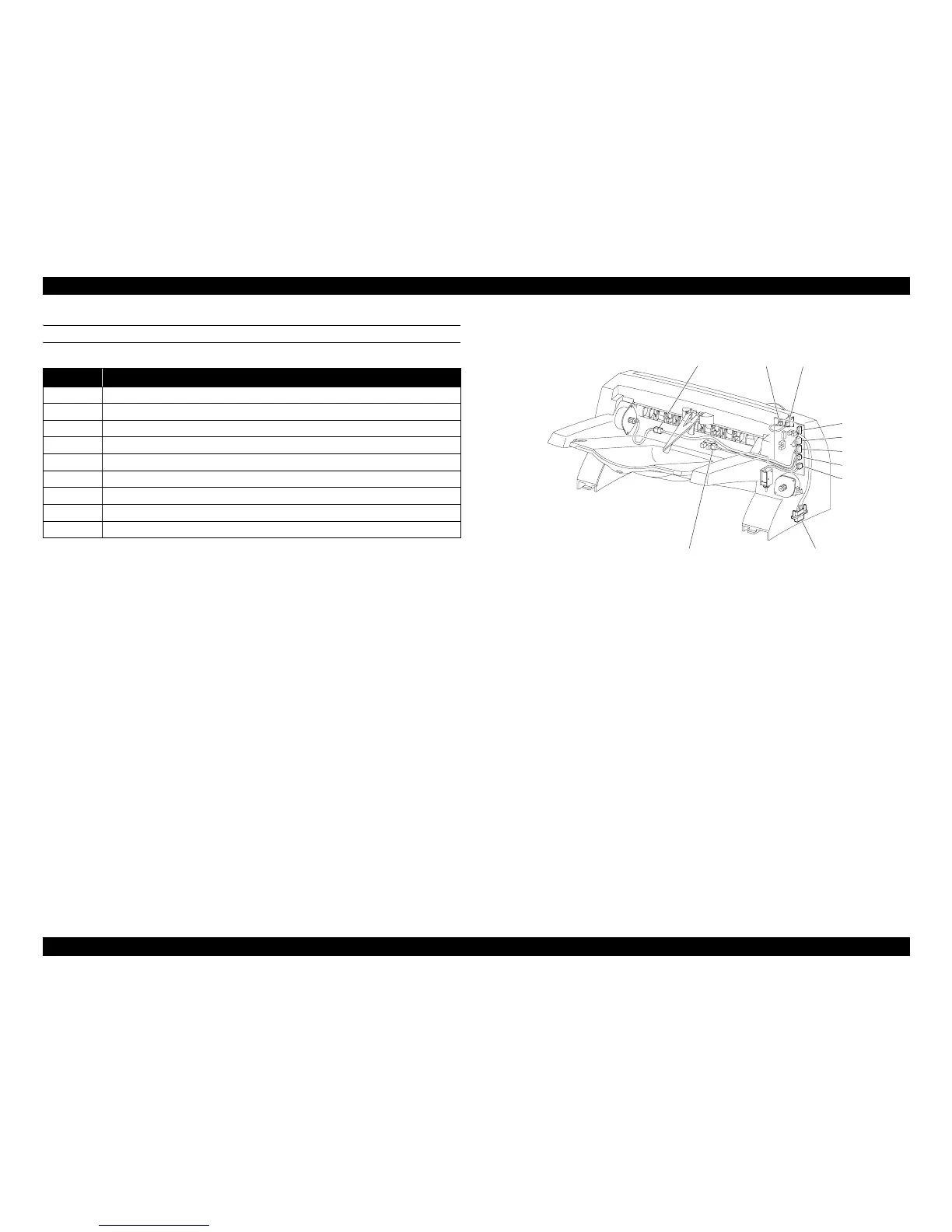

Table 7-3. P/J List (Option OCT)
P/J Remarks
70
Connects HARNESS ASSY OCT2 and PWBA OCT
71
Connects MOTOR ASSY OCT and PWBA OCT
72
Connects MOTOR ASSY OFFSET and PWBA OCT
73
Connects HARNESS ASSY OCT SNR and PWBA OCT
74
Connects HARNESS ASSY REAR COVER and PWBA OCT
75
Connects SOLENOID ASSY GATE and PWBA OCT
730
Connects SENSOR OCT and HARNESS ASSY OCT SNR
740
Connects SWITCH REAR COVER and HARNESS ASSY REAR COVER
3070
Connects HARNESS ASSY OCT2 and HARNESS ASSY OCT1
70
72
74
710
71
73
75
3070730
<Option OCT>
740
