EPSON EPL-N3000/AcuLaser M4000N Revision C
Appendix Wiring Diagrams and Signal Information 425
Confidential
§6 500 PAPER EXIT

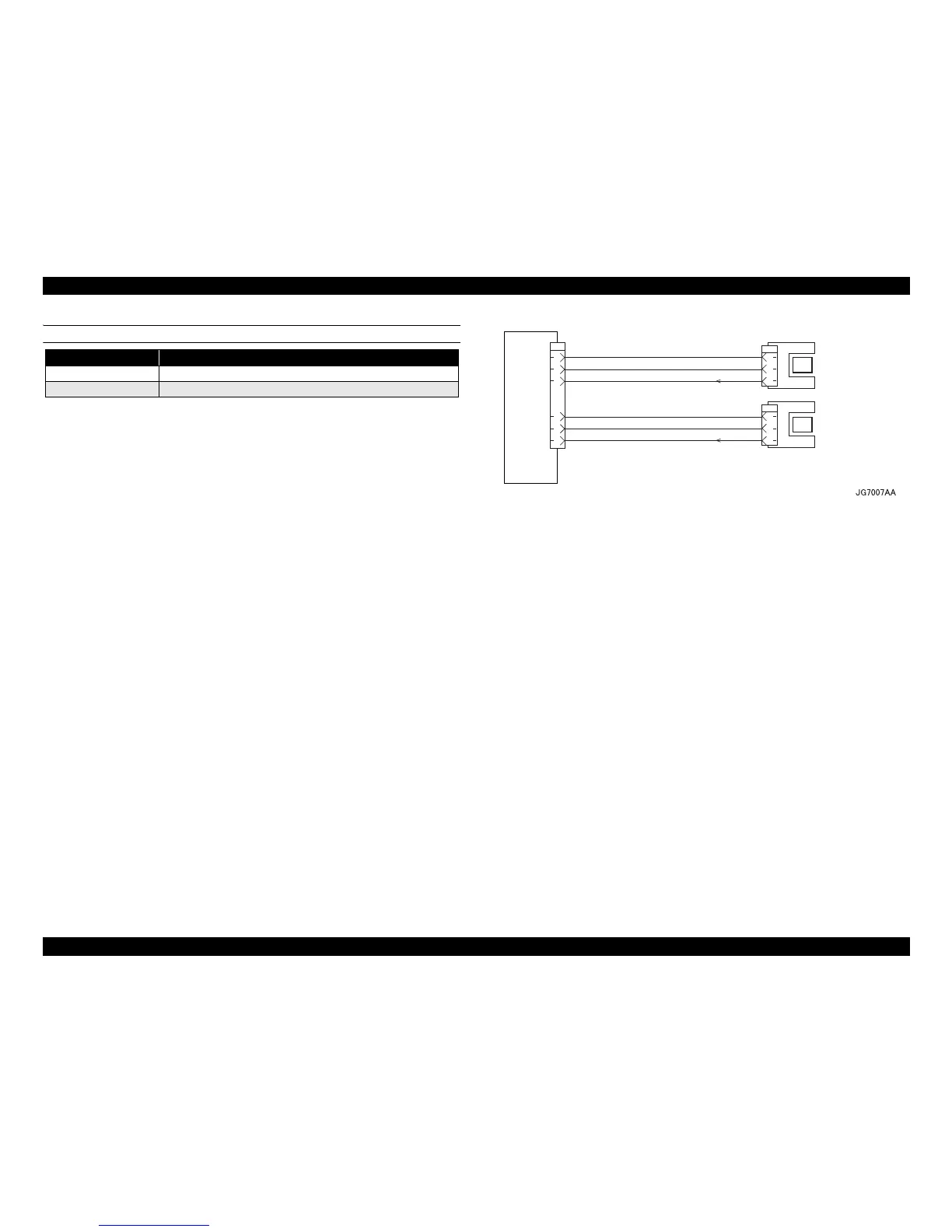

Figure 7-15. Components Connection Wiring Diagram 6
Signal Line Name Description
/LOW-PAPER2 SNR ON Signal from the SENSOR FULL STACK. Light received: Low
/NO-PAPER2 SNR ON Signal from the SENSOR FACE UP OPEN of Tray 2. Light received: Low
P/J29
2
3
1
4
5
6
HVPS/
MCU
PL12.1.19
HARNESS ASSY EXIT SNR
PL10.1.27
SENSOR
FULL STACK
PL10.1.26
2
1
3
P/J290
Pull Up 3.3V
LG
/ FULLSTACK SNR ON
SENSOR
FACE UP OPEN
PL10.1.25
2
1
3
P/J291
Pull Up 3.3V
LG
/ FACE UP OPEN SNR ON
