EPSON EPL-N3000/AcuLaser M4000N Revision C
Appendix Information Sheet 435
Confidential

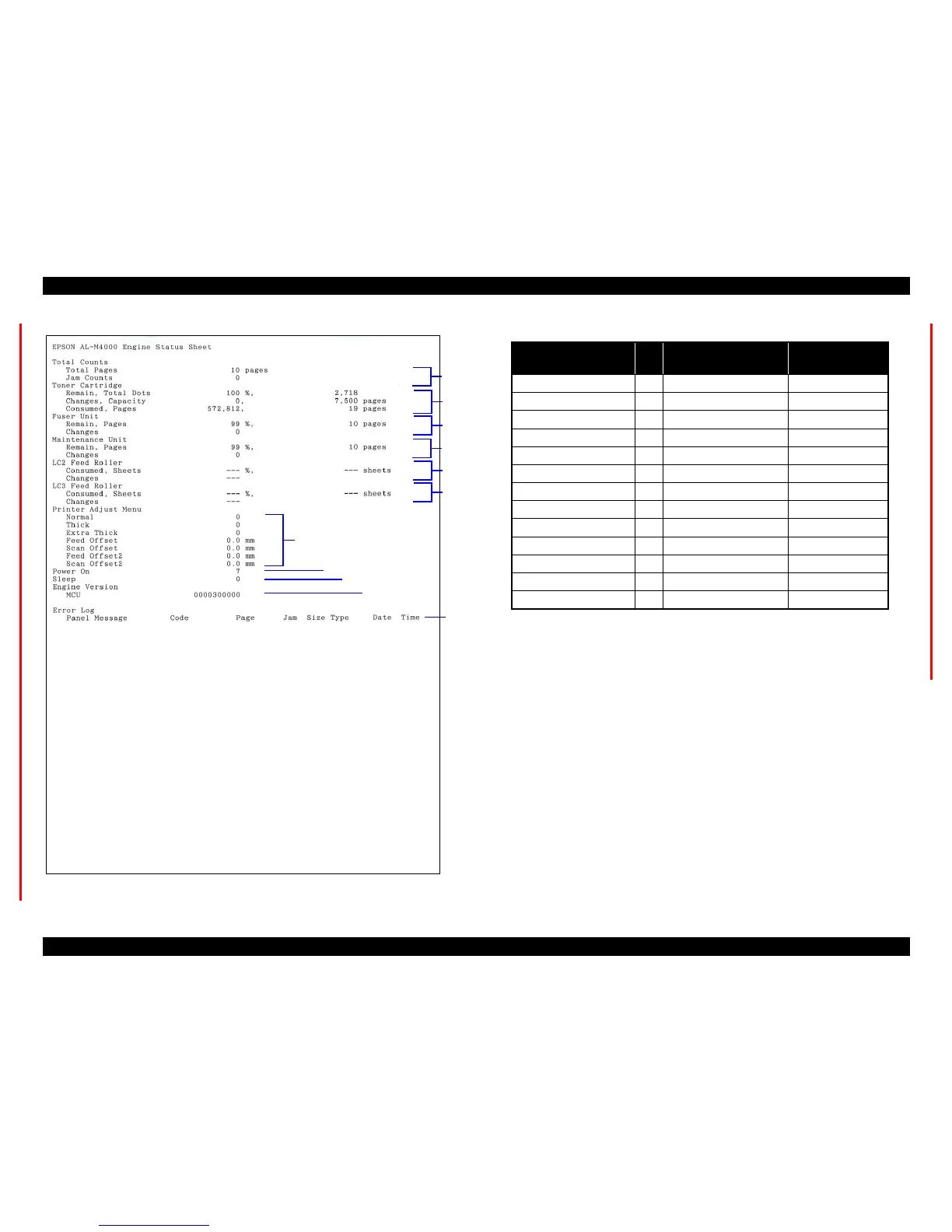

Figure 7-24. Engine Status Sheet
Note : If you cannot find the corresponding code in the table, multiple paper jam may be
occurring. In that case, convert the displayed code (hexadecimal number) into binary
number and find the combination in the table.
e.g.) 00001080 (hexadecimal number) → 00010000 10000000 (binary number)
→ 00010000 00000000 + 00000000 10000000 → OCT Jam 2 + Duplex Jam 1
8
1
2
3
4
5
6
7
11
9
10
Table 7-8. Paper Jam Code
Hexadecimal number
(Engine status indication)
Bit Binary number Description
00001000 12 10000 00000000 OCT Jam 2
00000800 11 1000 00000000 OCT Jam 1
00000400 10 100 00000000 Duplex Jam 4
00000200 9 10 00000000 Duplex Jam 3
00000100 8 1 00000000 Duplex Jam 2
00000080 7 10000000 Duplex Jam 1
00000040 6 1000000 Reg Jam 2
00000020 5 100000 Reg Jam 1
00000010 4 10000 Feed Jam 2
00000008 3 1000 Feed Jam 1
00000004 2 100 EXIT Jam 3
00000002 1 10 EXIT Jam 2
00000001 0 1 EXIT Jam 1
